Home > products > Cleanroom Air Shower > High Speed Sensing Industrial Roller Shutter Door , Roll Up Shutter Door Fast Operate

High Speed Sensing Industrial Roller Shutter Door , Roll Up Shutter Door Fast Operate

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-FD02

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: reconsideration

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100 set/month

Get Best Price
Highlight:

air showers for clean rooms

,

air jet shower

,

PVC Roller shutter door

Product Name::
Roller Shutter Door
Material::
PVC
Frame Material::
Aluminum/Stainless Steel/Steel
Colour:
Red ,green ,blue ,yellow ,custom
Open Style::
Automatic
Position::
Industrial
Control Box::
Mitsubishi Japan
Size::
Custom
Product Name::
Roller Shutter Door
Material::
PVC
Frame Material::
Aluminum/Stainless Steel/Steel
Colour:
Red ,green ,blue ,yellow ,custom
Open Style::
Automatic
Position::
Industrial
Control Box::
Mitsubishi Japan
Size::
Custom
High Speed Sensing Industrial Roller Shutter Door , Roll Up Shutter Door Fast Operate

High-speed sensing fast operate roller shutter door with automatic roller door





1, Roller shutter door adhibition:

Fast shutter doors, with many functions such as insulation, cold insulation, insect prevention, wind protection, dust prevention, sound insulation, fire prevention, odor prevention, daylighting, etc., and are widely used in food, chemical, textile, electronics, supermarkets, refrigeration, logistics, warehousing and many the other site,it can meet high-performance logistics and clean places, save energy, shut down at high speed, improve work efficiency, and create a better working environment.



Frame Work Material
1.Power Coated Steel Fame
2.Aluminum Track
3.Stainelss Steel Frame: S.S 201 & S.S 304
High speed Motor
1.German SEW & Nord
2.China SEJ or Tube Motor
Size from 0.75JW - 2.2 KW accordingly to different speed door size
Command System
Radar Sensor, Floor Sensor, Remote Control, Push button, Rope Swtich ect
Control Panel
1. Japan Mitsubishi
2. China Holip



2,Roller shutter door description:

1). Configuration: Mitsubishi servo system

2). Color: Yellow Grid White Grid

3). Increase speed: 0.6-1.2m/s adjustable speed

4). Curtains: standard components, thickness 0.8-3.0mm arc protection curtain

5). working temperature: -30 °C ~ +200 °C;

6). The latest generation of reduction gear pairs (high efficiency, low noise)

7). Control cabinet: imported components IP55; compatible with various commonly used protection devices, available button control

8). Leakage phase and rotation controller (mechanical protection device)

9). Insurance (wire) control shutdown switch or three-phase power protection; insurance (wire) control operation circuit protection

10). Temperature sensitive breaker motor protection

11). Frame: High-quality anti-corrosion metal, 1.5mm thick cold steel bar steel production, high-quality baking machine paint processing.

12). Safety performance: A set of Omron infrared safety protection system, when the door body is running down, the door body reverses upward when testing the object.

13). Sealing performance: The bottom end is equipped with heavier imported PVC curtains, which can be closely combined with various uneven grounds.

14). Borders: The border track is fitted with dense brushes and curtains that are tightly mounted to increase the sealing and constant temperature effect.

15). Power system: High-efficiency braking motor, 0.75-1.5Kw, 220v two-phase 380V three-phase, automatic and manual circulatory system with adjustable high reflection delay

16). Good insulation performance, strong sealing, low noise, anti-theft, good wind resistance and beautiful appearance.



3.Roller shutter door features:

Electrically/manually operation

With /without swing-up mullions

No size limitation;

High resistance to wind load = all wind speeds up to hurricane proof doors

All colors (fabric) available

Translucent fabric

Vision panels available

Sound and light alarm

Extreme resistance of weather conditions

Leak proof and well sealed construction

Corrosion free components

Cost effective, low lift cycle costs

High operational reliability

Long lifetime

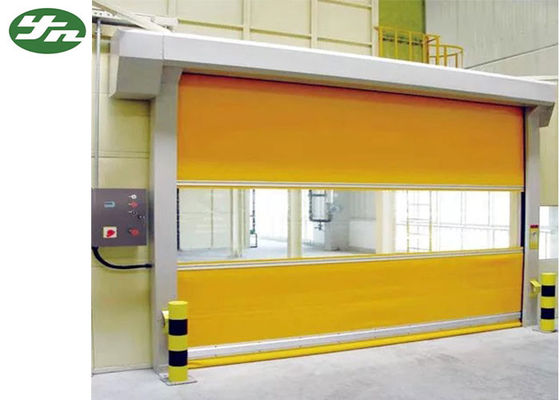

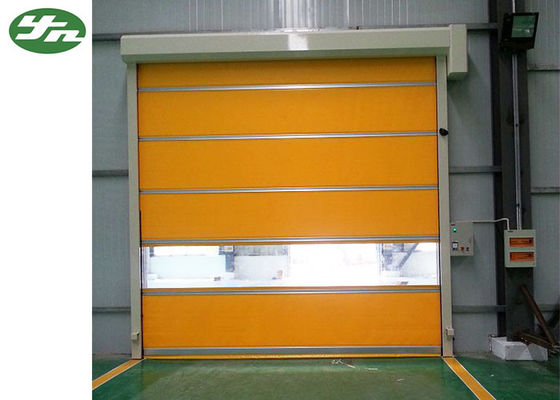

High Speed Sensing Industrial Roller Shutter Door , Roll Up Shutter Door Fast Operate 0High Speed Sensing Industrial Roller Shutter Door , Roll Up Shutter Door Fast Operate 1



Our production line

High Speed Sensing Industrial Roller Shutter Door , Roll Up Shutter Door Fast Operate 2
