Product Details:
|
Product Name:: | Laminar Flow Bed | Size:: | 2120*950*530mm Or As Your Requirements |
---|---|---|---|
Material:: | High Quanlity Powder Coating Steel | Fence:: | Food Grade Anti-static PVC Curtain |
Clean Level: | Class 100 ISO5 | Air Speed: | 0.1-0.3m/s |
Air Volume:: | 600-1200m³/h | Noise:: | 45-52db |
High Light: | operating room ceiling system,laminar flow ceiling |
It can fully reduce the infection rate of susceptible people and protect susceptible populations. Widely used in hematology, oncology, pediatrics, burns, etc. Indoor air disinfection can be carried out under some circumstances, and it is an ideal local air purification and disinfection device for beds. The mobile laminar flow hood is composed of a high efficiency air filtration system, a fan power system, a noise reduction and noise reduction system, and an operation control system.
The laminar flow bed (moving laminar flow sterilizing hood) is a better purification and disinfection effect after the hood is cleaned and disinfected. In terms of the nature of the equipment, the local air is purified and disinfected by means of laminar flow purification, a device similar to a cover, and because it can be moved, it is called a mobile laminar flow sterilizing cover according to the product-specific attribute.
1). Safe and stable all-metal frame, high transparency anti-static curtain
2), the filter efficiency is 99.99%, efficient air purification
3), easy to move removable space
4), multi-speed speed control fan to meet the needs of different situations
5), purification and care bed combination is a perfect combination, circulating air flow, easy to move, easy to CPR, real clean space
The laminar flow bed is composed of a high efficiency air filtration system, a fan power system, a noise reduction and noise reduction system, and an operation control system. During operation, the fan draws in ambient air, filters it into clean air through the air purification system, and then sends the clean air to the ward area of the hood in a laminar flow, At the same time, the inside of the hood is kept positive to prevent dust particles and microorganisms from entering the hood.
High-efficiency air filtration can greatly reduce dust particles and microorganisms in the air, and can effectively reduce the infection rate in patients with various immune functions such as chemotherapy, radiotherapy, burns, asthma, and transplantation.
1). It adopts low-noise fan imported from Germany, with low noise, large air volume, and can be continuously operated for 50,000 hours without maintenance and maintenance-free.
2), ultra-thin chassis design, seamless welding of the outer box, equipped with universal casters for easy movement and handling.
3), built-in initial effect, medium efficiency, high efficiency, three-stage filtration, is more conducive to protecting high-efficiency filters and extending the life of high-efficiency filters.
4). It is easy to assemble and move clean space, and the cleanliness in the bed can reach 100.
5). multi-speed speed control fan keeps running at low time for low time, to meet the needs of different situations.
Item No. | Laminar Flow Bed Patient Bed Care Bed For Serious Patient | |||||
Dimensions | 2120*950*530mm | |||||
Package | 1PC/CTN | |||||
Carton Size | 2130*920*460mm | |||||
CBM/per ctn | 0.901m³ | |||||
Weight/per Ctn | N.W: 105KGS G.W:110KGS | |||||
Lading Qty | 25 | Pcs/20''GP | 55 | Pcs/40''GP | 70 | Pcs/40''HQ |
Guarantee | Motor:5 Years, Other Parts:1 year |

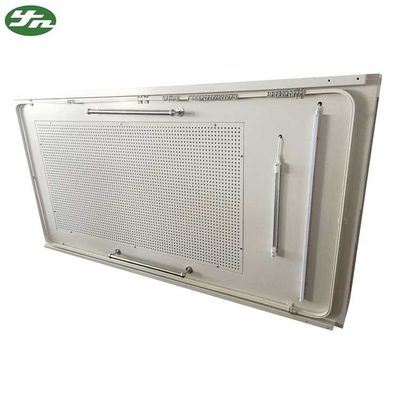

Detail photos
