GMP Clean Room Laminar Air Flow Cabinet Hood Weight Booth For Pharmaceutical

Place of Origin Guangdong China
Brand Name YN
Certification CE/ISO
Model Number YN-SB1500
Minimum Order Quantity 1 PCS
Price Reconsideration
Packaging Details Wooden case or as your requirement
Delivery Time 7-15 workdays
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000 sets /month
Product Details
Product Name Laminar Flow Weight Booth Material 304 Stainless Steel
Size 1500*800*12050mm Cleanliness 100 Class≥0.3μm(USA Federal Standard 209E)
Air Velocity 0.25-0.6m/s Configuration0.37W The Differential Gauge And Sterilization Lamp
Moving Type 4 Pcs 360 Degree Adjustable Wheels Packaging Wooden Case
High Light

operating room ceiling system

,

laminar flow ceiling

Leave a Message
Product Description

GMP clean room laminar air flow hood weight booth sampling booth for pharmaceutical



1. Laminar flow weight booth description:



Manufacturer of Pharmaceutical Weighing Booth / Dispensing Booth/sampling booth Manufacturer of Pharmaceutical Weighing Booth for pharmaceutical clean room
Weight room is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Manufacturer of Pharmaceutical Weighing Booth / Dispensing Booth/sampling booth Manufacturer of Pharmaceutical Weighing Booth

1), wind speed: 0.2 ~ 0.5m / s (** wind speed 0.3m / s)

2). Noise: ≤62dB(A)

3), power supply: AC220V, 650HZ

4). Vibration Half-peak value: ≤5um

5), the maximum power consumption: ≤ 0.8KW

6), weight: 50-150kg



2.Laminar flow weight booth characteristics:

Applications: dispensing booth subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids in clean rooms and so on.

Operating Features:

1): dispensing booth modular. Easy-to clean rigid design with minimal joints

2): HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals

3): Voltage-compensating blowers ensure stable air flow.

4): Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.

5): Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.





3. laminar flow weight booth parameter


Model

YN-1000

YN-1200

YN-1400

YN-1600

YN -1800

Clean Level

ISO 5 (Class 100), Class A


HEPA Filters

99.999% efficiency at 0.3 um


Air volume

Supply air volume: ≤7500m3/h,
Exhaust air volume: ≤2250m3/h; Adjustable


Exhaust air volume: ≤2250m3/h; Adjustable


Material

Fully stainless steel 1.2mm


Air Velocity

0.35~0.65m/s, adjustable


Noise

≤75db


Illumination

≥800lux


UV Lamp

Emission of 253.7nm


Power Supply

110/220V±10%, 50/60Hz


Consumption

1100W

1100W

0.55KW*2

0.55KW*2

0.55KW*2

Weight

400Kg

450KG

500KG

550Kg

600Kg

Work Area Size (W*D*H)

900*900*2000

1100*900*2000

1300*1000*2000

1500*1000*2000

1700*1000*2000

Overall size
W D H

1000*1350*2400

1200*1350*2400

1400*1400*2400

1600*1400*2400

1800*1400*2400

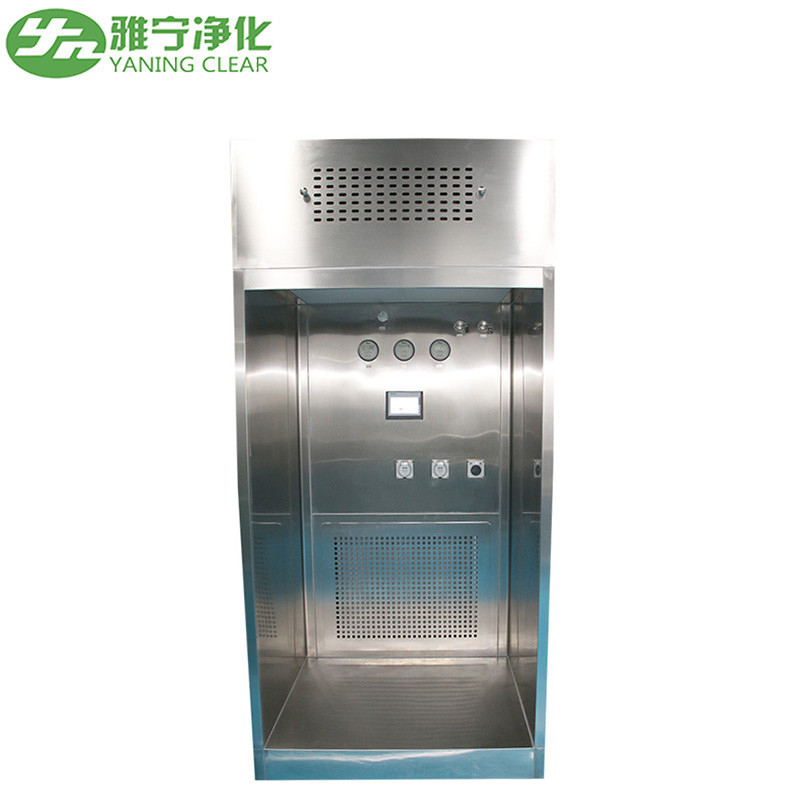

Product detail photos
GMP Clean Room Laminar Air Flow Cabinet Hood Weight Booth For Pharmaceutical 0GMP Clean Room Laminar Air Flow Cabinet Hood Weight Booth For Pharmaceutical 1GMP Clean Room Laminar Air Flow Cabinet Hood Weight Booth For Pharmaceutical 2
