Class 100 Vertical Laminar Flow Cabinet

China Class 100 Vertical Laminar Flow Cabinet supplier
Class 100 Vertical Laminar Flow Cabinet supplier Class 100 Vertical Laminar Flow Cabinet supplier Class 100 Vertical Laminar Flow Cabinet supplier

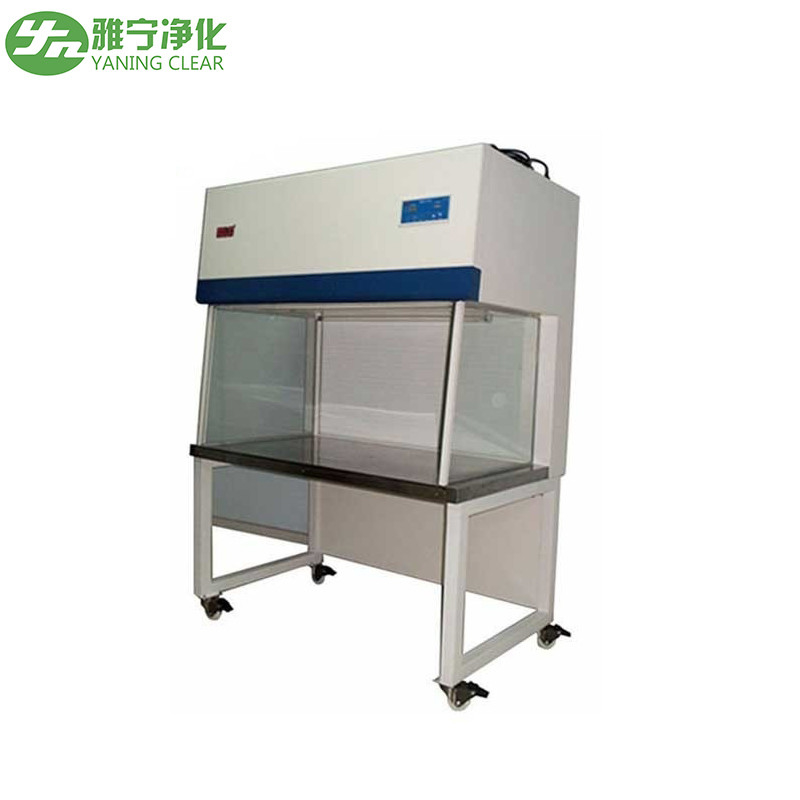

Large Image :  Class 100 Vertical Laminar Flow Cabinet

Product Details:

Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-VC1400

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Reconsideration
Packaging Details: Wooden case or as your requset
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, , L/C, D/A
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Product Name:: Vertical Laminar Flow Hood Material:: Powder Coating Or Stainless Steel
Size:: 1400(W)*750(D)*1800(H)mm Or Custom Work Surface Material:: Full Stainless Steel
Internal Size (W*D*H): 1240*700*700mm Laminar Type;: Vertical Laminar
Packaging: Wooden Case Or As Your Requirement



CE class 100 vertical-flow laminar flow hood with UV lamp for laboratory





1.Class 100 laminar flow hood supplier in Guangdong,China



Place of Origin: Guangdong China (Mainland) Brand Name: YN Model Number: YN-VC-1400
After-sales Service Provided: Engineers available to service machinery overseas External Size: 1400x750x1800 mm Working Area: 1240x700x700mm
Purifying Class: 100 class Air Flow: 400-650 Average Flow: 0.25-0.45
Efficiency: 99.99% Rate of work: 150 Noise: <=65
LED: 9x1 Power supply: 220V 50 HZ







2. Laminar flow hood description:



Product Information:

Clean bench is a local filtration working table which has strong universality. Suitable for high cleanliness production workshop, can be assembled together to use.



Structural Features:
1).Adopts mini-pleated HEPA filter to minimize the plenum, with stainless steel table-board and glass atside make the whole work area spacious and bright;

2).Easy removal prefilter with big air volume for better protection of HEPA filter and ensure the wind speed;

3) , adjustable air flow systems to make work area in ideal status;

4) , Horizontal flow type, open desktop, easy to operate.



Performance Features:

Clean air bench designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100. Whole cabinet made of Cold Rolled steel powder coated. The work table is made of thick Stainless-steel (SUS304 T=1.0mm). Extra charge is applied for full SUS304 body.

The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron



3.Vertical laminar flow hood application:



The laminar flow hood is a kind of air purification equipment that provides a high degree of local cleanliness and working environment. Its use improves process conditions, ensures high precision, high purity, high reliability, and improves product quality and product quality. Large product yields have good results. The worktable has a novel structure, beautiful appearance, reliable operation, low energy consumption, and easy maintenance. It is widely used in electronic and defense precision instruments, instruments, biopharmaceuticals, food, sterile microbiological inspection, and plants. Tissue culture, inoculation, and other industries require scientific research and production departments that require a local clean work environment.



4.Use environment and conditions:



Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);



Production detail photos

Class 100 Vertical Laminar Flow Cabinet

Class 100 Vertical Laminar Flow Cabinet
