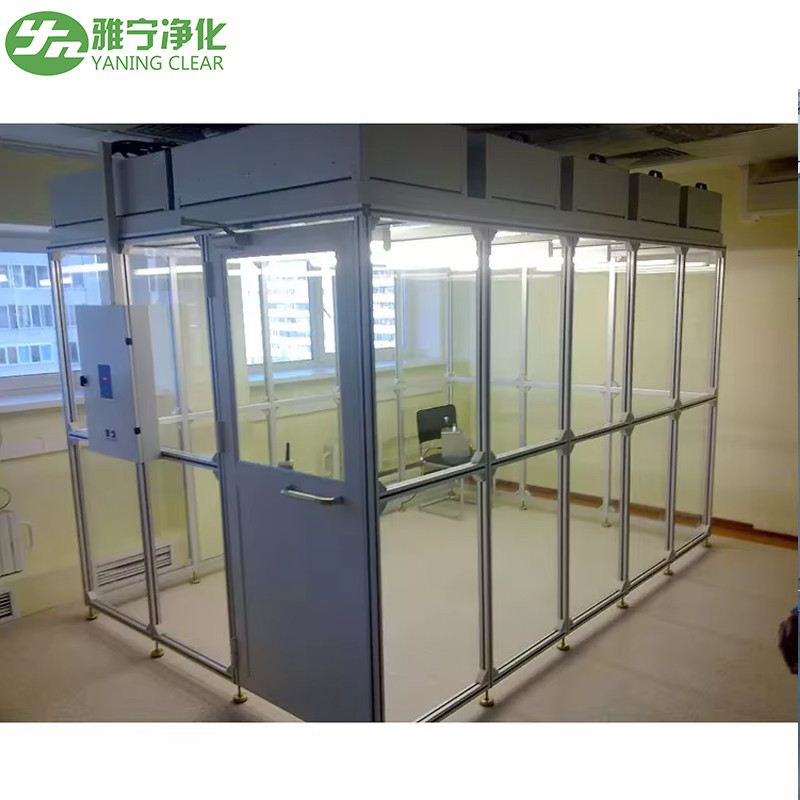

Clean Room Modular Easily Expandable

Product Details

Place of Origin: Guangdong,China

Brand Name: YN

Certification: CE/FDA/ISO

Model Number: YN-CR0058

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: depends on your requirements

Packaging Details: plywooden case

Delivery Time: 7-15 days, depends on qty

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000+pcs/month

Get Best Price
Product Details
Highlight:

dispensing booth

,

laminar flow booth

Material:
Stainless Steel,Aluminum,Iron Etc
Air Velocity:
0.45m/s
HEPA Efficiency:
99.995%@0.3um
Market:
Thailand,Vietnam,Malaysia Etc
FFU Size:
1175*575*300mm
Cleanlinese:
Class 100 Or 1000,10000
Material:
Stainless Steel,Aluminum,Iron Etc
Air Velocity:
0.45m/s
HEPA Efficiency:
99.995%@0.3um
Market:
Thailand,Vietnam,Malaysia Etc
FFU Size:
1175*575*300mm
Cleanlinese:
Class 100 Or 1000,10000
Product Description
Products Description




clean room
PVC panel/acrylic panel hard wall clean room for dustless work
Hardwall modular cleanrooms provide outstanding performance and aesthetic appeal. Their rigid-wall construction allows for higher internal air pressures than those in softwall cleanrooms, meaning better performance. Wall panels come in many materials. Windows and other accessories can be added to customize your cleanroom.

Our hard-wall cleanroom construction can withstand the high volume of airflow required for ultra-clean environments such as ISO class 5-6 clean zones. But the bright and durable finish of the hard-wall cleanrooms also make them an attractive option for ISO class 7-8 cleanrooms.
The positive airflow pushes air down through the cleanroom, allowing particles to be flushed out evenly through the low level exhaust vent.


Clean Room Modular Easily Expandable 0
Features
* Robust, impact resistant & durable
* Easy to clean and maintain finish
* Lets in light for ambient working conditions
* Choice of doors or softwall strips for entry
* Your logo can be printed on the panels
* Allow external staff to oversee the internal cleanroom processes


model

YNC-1500

YNC-2000

YNC-3000

YNC-4000

Size

1500*2000*2500

2000*2000*2500

3000*2000*2500

4000*2000*2500

Material

powder coated steel/SUS 304/Alu profile

Plexiglass,Soft curtain,Anti-static strip curtain


Clean Booth


Clean Room Modular Easily Expandable 1
Product Description
Clean booth (simple clean room) is a kind of air purification equipment that can provide local high clean environment. It is a simple clean room for the fastest and most convenient establishment. The top FFU inhales the air, and the clean air filtered by the filter presents a vertical unidirectional flow on the entire air outlet surface, thus ensuring the required cleanliness in the working area.

Available Types


Clean Room Modular Easily Expandable 2



Hardwall Cleanroom
* Hardwall cleanrooms have a strong support frame and panels. They are made from rigid materials, such as stainless steel, welded steel, acrylic, tempered glass, PVC, etc.
*More permanent than soft wall clean rooms. * offer excellent environmental and contamination control.
* often made with modular construction which is more efficient assembly and disassembly.

Clean Room Modular Easily Expandable 3



Softwall Cleanroom
*A softwall cleanroom is a confined controlled
space with a metal frame, clear panel walls, an entrance, high efficiency particulate air (HEPA) filters, and exceptional lighting that is designed to provide a contaminant and particulate matter free workspace.
*Softwall cleanrooms are cleanrooms with fabric walls. These fabric walls may either be made from free-hanging plastic strips or fabric stretched tightly over a frame.
* Softwall cleanrooms are highly portable, and may be designed modularly more efficient assembly and disassembly.


Model item

YN-CS1500

YN-CS200

YN-CS3000

YN-CS5000

Size(mm)

1500*2000*2400

2000*3000*2400

3000*4000*2400

5000*5000*2400

Material

Framework

Cold rolled steel/Aluminum/Stainless sheel

Around

Plexiglass,Soft curtain,Anti-static strip curtain

Clean class level

100

1000

10000

100000

Hepa filter

Size(mm)

610*610*69

1220*610~69

1220*610*69

1220*610~69

Efficiency%

99.99

99.99

99.99

99.99

Air flow(m3/h)

4000

5040

7560

12000

Pre filter

Size(mm)

Optional

Motor spec

Power supply

220V150hHZ

220V150hHZ

220V150hHZ

220V150hHZ

Noisel(db)

62

63

62

63


Product Parameter


Clean Room Modular Easily Expandable 4
Benefits:
Sturdy structure, beautiful and durable, no rust, no dust.
Simple clean room with the lowest cost and quick construction.
Can be customized to meet the needs of the site space and usage.
UV sterilization lamp can be installed.


Clean Room Modular Easily Expandable 5
Frame
* Aluminum profile
* Stainless Steel
Curtains
* 40mm Thick Clear Vinyl
* Static Dissipative Material
* Easy-to-use Dual Lock Attachment
* Strip Doors for Convenient Access
Filters and Lights
* Motorized Ceiling H14 HEPA Filter Units
* Variable Speed Control
* Class 100,000 to Class 10 (ISO 8 to ISO 4)
* LED Flat Panel Lights
* Available Flow-thru lights Recommended Applications / Industries
* Microelectronics
* Pharmaceutical
* Research and Development
* Semiconductor Manufacturing

Success case show


Clean Room Modular Easily Expandable 6

Clean Room Modular Easily Expandable 7


Clean Room Modular Easily Expandable 8

Our Factory


Clean Room Modular Easily Expandable 9
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.

Clean Room Modular Easily Expandable 10
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong


Clean Room Modular Easily Expandable 11

Clean Room Modular Easily Expandable 12

Clean Room Modular Easily Expandable 13

Clean Room Modular Easily Expandable 14

Packaging & Delivery


Clean Room Modular Easily Expandable 15

Clean Room Modular Easily Expandable 16

Clean Room Modular Easily Expandable 17

Clean Room Modular Easily Expandable 18

Exhibition


Clean Room Modular Easily Expandable 19

Clean Room Modular Easily Expandable 20

Clean Room Modular Easily Expandable 21

Clean Room Modular Easily Expandable 22

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.

4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
