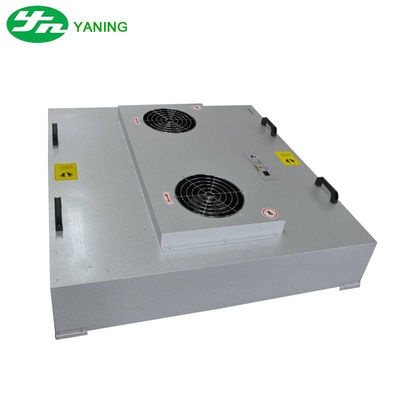

Gray Double Motor Ffu Filter Fan Unit , Clean Room Fan Filter Units Long Service Life

Gray Double Motor Ffu Filter Fan Unit , Clean Room Fan Filter Units Long Service Life
Gray Double Motor Ffu Filter Fan Unit , Clean Room Fan Filter Units Long Service Life Gray Double Motor Ffu Filter Fan Unit , Clean Room Fan Filter Units Long Service Life

Large Image :  Gray Double Motor Ffu Filter Fan Unit , Clean Room Fan Filter Units Long Service Life

Product Details:

Place of Origin: China
Brand Name: Yaning
Certification: CE& ISO
Model Number: 575*575*230

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: online discussion
Packaging Details: Standard Export Packaging
Payment Terms: T/T, Western Union
Detailed Product Description
Material: Stainless Steel ,powder Coat Steel Power: 170w
Power Supply: AC 220 V /50 Hz Purification Grade: Class 100
Air Velocity: 0.35-0.65 M/s Air Flow: 500-1500 M3/h
Warranty: 12 Months Weight: 15Kg
High Light:

clean room fan filter units

,

ffu filter fan unit



1200*1200mm Gray Color Galvanize Aluminum double motor fan filter unit (FFU)for clean room



Fan Filter Unit (FFU) is a self-contained ceiling unit for use in turbulent mixing and laminar flow cleanroom applications. The unit is designed with total flexibility for use with the ceiling grids. It can also be used in many other applications, such as clean booths, clean workbenches, and Clean Room tunnels. When the filter is equipped with a knife-edge inter-face, the unit can also be utilized in the liquid-sealed ceiling grid. It can be easily upgraded and integrated into any ceiling configuration in accordance withdesign specification to achieve cleanroom Class 100 (ISO Class 5), Class 10 (ISO Class 4) and Class 1 (ISO Class 3)

Ceiling mounted fan powered cleanroom air filter module with energy efficient powered clean room level air filtration with all-welded construction, integrated prefilter section, electronic fan speed control, and aerosol distribution plate. Each unit may be controlled through remote control with each unit have a unique communication identifier. The Pharmaseal FFU accepts gel or gasket seal filters that are available in efficiencies from ISO 15 E to ISO 65 E in accordance with the new ISO Standard 29463-1.





  • Features:
  • ※ Power cord for easy plug-in connection
  • ※ Stepless controller or 3 steps controller
  • ※ Pre filter and HEPA filter are included
  • ※ Cabinet: Aluminum/ Galvanized/ SUS304/ SUS201
  • ※ Low noise operation
  • ※ Energy efficiency design
  • Application:
  • ※ Cleanroom
  • ※ Clean booth
  • ※ Production room
  • ※ The fan filter unit has multiple uses in semiconductor, LCD manufacturing, and other industries requiring a clean room, particularly Class10 - Class100000
Model YN-FFU-575 YN-FFU-1175 YN-FFU-1225 YN-FFU-1175×2
Cabinet Size 575×875×230 575×1175×230 615×1225×230 1175×1175×230
Cabinet Material Epoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel
Air Flow(m3/h) 800 1100 1200 2000
Noise(dB) 56 56 58 58
Air Velocity 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s
HEPA Filter Size 570×870×69 570×1170×69 610×1220×69 1170×1170×230
Efficiency 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm
Frame Aluminum
Initial pressure loss 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s
Fan Power Supply 220V/50hz 220V/50hz 220V/50hz 220V/50hz
Type Aluminum turbofan
Vibration 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s
Total Power 170W 170W 210W 275W
Weight 24kg 28kg 31kg

47kg




Salient Features: long use life, low noise and vibration, maintenance-free, adjustable air speed, thousands unit can be easily controlled.
Factory Strict Test: according to international ISO14644-1 standards, with a dust particle counter detection one by one to ensure the quality.
Application: widely used in the semiconductor, electronics, flat panel displays, and optical disk drive manufacturers, bio-industries, assembled clean room and laminar flow hood.Etc.
