80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels

Place of Origin China
Brand Name Yaning
Certification CE/ISO/UL/FDA
Model Number YN-CRCT007
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details First in carton,then made wooden tray or as your requirement
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Product Details
Material 80*80powder Coating Purification Levels ISO 8
Standard ISO90001 Wall Pvc Grid Curtain
FFU Power 170w Terms CIF/EXW/FOB
Delivery Time 7-15days Export Desitination Canada
Package Plywooden Case
High Light

laminar flow booth

,

filter cleaning booth

Leave a Message
Product Description

Easily Install Powder Coating Frame(80*80mm) ISO 8 Clean Room Booth for Candy Industry in Malaysia



        Clean room is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smal

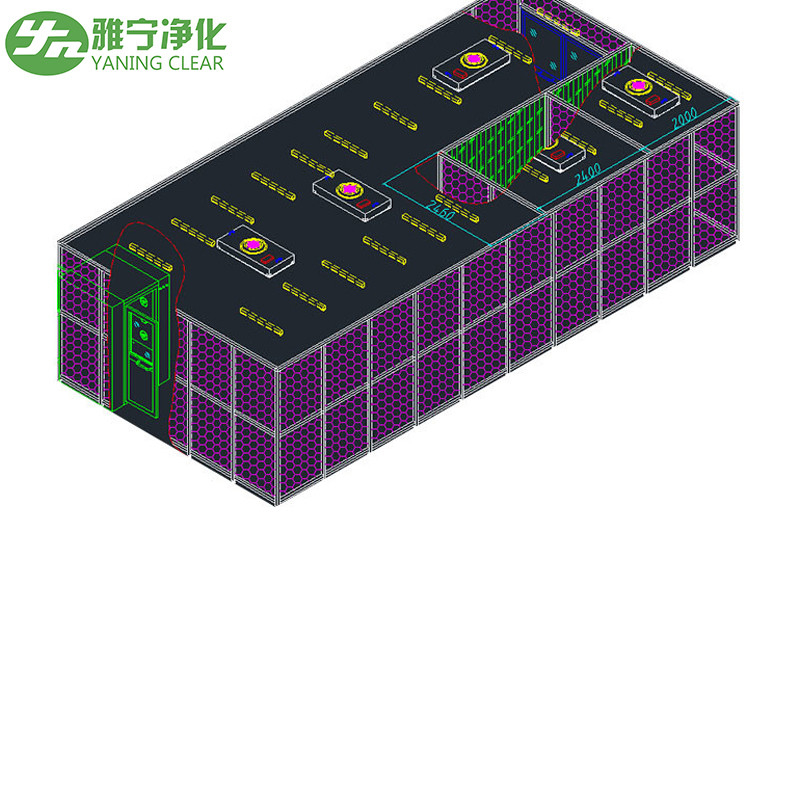

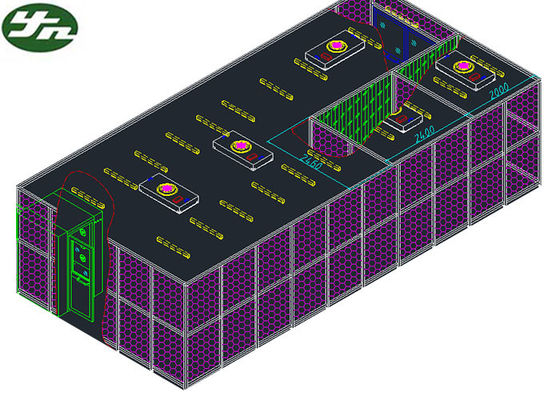

        We made 1000+clean rooms for different pharm companies since we built factory from 2001, if you are a pharm company, I think you need a clean room for Liquid filling of capsules, because clean room can keep partial cleaning where need high air quality for your production. Now we are just making a drawing for another pharma company which is located in Ontario, Canada after they confirmed us as their supplier. Here drawing is for your review and welcome to send us your requirements, we will design it for you based on your requirement

s!!



80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 0

80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 1

Customer install site:





80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 2

More models for your option:

Model YN-CS-23B YN-CS-34A YN-CS-34B YN-CS-68C
External Size(W×D×H)mm 2100×3100×2590 3100×4100×2590 3100×4100×2590 6100×8100×2590
Internal Size(W×D×H)mm 2000×3000×2240 3000×4000×2240 3000×4000×2240 6000×8000×2240
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 1000Class(ISO6) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas



Features:
(1) Assembly structure designed, easy installation and shortening the delivery time;
(2) Easily moved (Omnidirectional wheels can be installed), suitable for building small and high cleanliness area;
(3) Module structure to improve high cleanliness class easily, great expansibility and high value for reusing;
(4) Compared with ultra-clean clean bench, clean booth has large useful and effective area; while compared with traditional clean room, it has such features as low cost, fast construction and no limits for low floor.

3. Materials for Clean Room


(1) Frame: Aluminum profile 40*40/40*80mm used in industry, which is firm, beautiful, rustless and no dust attached;
(2) Anti-static curtain: the thickness of grid: 0.5mm; effectively anti-static, great transparent, clear grid, soft, good toughness, no deformation, not getting burnt-in easily and great performance in temperature compartment and, dust and static elimination;
(3) Coverd in the top by purification blind plate, the thickness of which is 1.2mm of plastic spraying cold plate;
(4) Purification lighting system is used inside of the clean booth;
(5) Air supply unit FFU: adopting low noise centrifugal fan, with such features as long service life, low noise, maintenance free, low vibration and adjustable speed. And in the end of FFU is Mini-pleat HEPA Filters, which is low initial resistance, high dust holding capacity, high efficiency, long service life, easy replacement and etc...


Factory qualification:
- ISO9001 and ISO14001 Certified Air filter manufactuer,CE.UL
-16 years experience in air cleaning solution


Our serivice:
we are HVAC air filter and clean room filter equipment manufacture since 2002,right now we are working with many distributors, such as Premium Filters and Inversions Abaco Ltda.
Our products follow up the standard of ISO9001, CE, and SGS, quality equal with AAF, Camfil and other US brand, price is very much lower than them.



Please trust our ability:
80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 3
Packageand shipment:
80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 480*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 5
Application:

80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 6
Reasons you choose:
1,free design according to your requirements;
2,fast delivery time
3,installation guilding(including pre-installation pic,videos and assembly drawing;
4,competitive price with high quality

5,free after-sales-service within 1 year


Their experiences already prove we will be your business partner in the future:

80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 7

Products certificates:
80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 8

Our new honor:
80*80mm Powder Coating Frame Clean Room Booth ISO 8 Purification Levels 9
As a pioneer in cleanroom technology, Yaning has been creating controlled environments for the electronics, semiconductor, pharmaceutical, food, biotechnology, nanotechnology and other high technology indutries. Today, increasing quality and process demands in these and other industries require the control of particulate contamination to stringent standards.
Yaning Soft Capsule Soft Wall Cleanrooms are an ideal solution when clean air areas need to be created on a small to mid scale. Flexible and economical, they may be easily relocated when application requirements change. Yaning offers a complete range of soft wall cleanrooms to meet various construction, dimensional and cleanliness class requirements.
