Hepa Filtration Clean Room Fan Filter Units Powder Coat Steel Material 12 Months Warranty

Product Details

Place of Origin: China

Brand Name: Yaning

Certification: CE& ISO

Model Number: 1175*575*290mm

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: discussion

Packaging Details: Standard Export Packaging

Payment Terms: T/T, Western Union

Get Best Price
Highlight:

clean room fan filter units

,

ffu filter fan unit

Product Name::
Hepa Filtration Units
Material:
Powder Coat Steel
Size::
1175*875*290mm Or Customize
Purification Grade:
Class 100
Air Flow:
1500 M3/h
Warranty:
12 Months
Product Name::
Hepa Filtration Units
Material:
Powder Coat Steel
Size::
1175*875*290mm Or Customize
Purification Grade:
Class 100
Air Flow:
1500 M3/h
Warranty:
12 Months
Hepa Filtration Clean Room Fan Filter Units Powder Coat Steel Material 12 Months Warranty



Hepa filtration units fan coil filter fan filter unit for clean room


Introduction:

FFU, short for Fan Filter Unit, is a kind of air supply device that has motive power and filtering function. Air is brought in top of FFU as passing through HEPA Filters, filtered air comes out of outlet evenly; Modules connection running.

FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25% to100% cover rate), general dimension is 2'*4' or 4'*4'.

Application: Applying in class 10000 to class 10 of clean room, even forming ultra clean line, clean closet and etc.

1. Nice appearance, human centered design
Add Stainless handle, easy installation and delivery, perpendicular design;
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours;
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available;
4. Flexible, diversified design
Except for standard items, custom made is available, such as choosing kinds of filter net and materials of shell;
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair;
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ± 10%.


Features :

1. A 3 - section or variable speed airfoil turbo fan made by aluminum alloy, which pursued the most suitable designed by computer analysis, provides high efficiency and low-noise characteristics.
2. A carrying handle makes transportation and installation easier.
3. A safety socket block for connecting electric power is most suitable for a small clean room system.
4. An optional ULPA filter, which is 99.9999% efficiency at 0.12 microns, is available to meet the extremely critical clean area needs.



Model YN-FFU-575 YN-FFU-1175 YN-FFU-1225 YN-FFU-1175×2
Cabinet Size 575×875×230 575×1175×230 615×1225×230 1175×1175×230
Cabinet Material Epoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel
Air Flow(m3/h) 800 1100 1200 2000
Noise(dB) 56 56 58 58
Air Velocity 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s
HEPA Filter Size 570×870×69 570×1170×69 610×1220×69 1170×1170×230
Efficiency 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm
Frame Aluminum
Initial pressure loss 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s
Fan Power Supply 220V/50hz 220V/50hz 220V/50hz 220V/50hz
Type Aluminum turbofan
Vibration 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s
Total Power 170W 170W 210W 275W
Weight 24kg 28kg 31kg 47kg



Photos

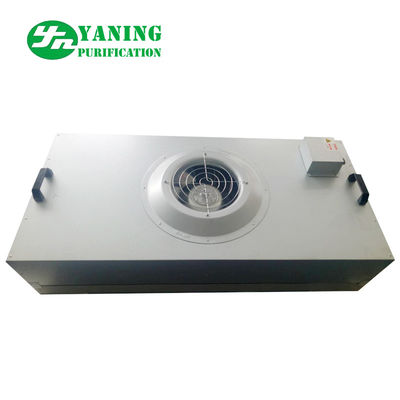

 Hepa Filtration Clean Room Fan Filter Units Powder Coat Steel Material 12 Months Warranty 0Hepa Filtration Clean Room Fan Filter Units Powder Coat Steel Material 12 Months Warranty 1
