F7 Pink Polyester Hvac Hepa Filter Housing / Bag Aluminum Alloy Material Medium Efficiency

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-F7
Minimum Order Quantity 10pcs
Price reconsideration
Packaging Details some pcs in a pp bag,then in a carton.final made wooden tray.
Delivery Time 7-25 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 10000pcs/month
Product Details
Product Name Bag Medium Efficiency Filter Bag Material F7 Polyester Fiber
Frame Material Aluminum Alloy Size 610*305*600mm Or Custom
Bag Number 3pcs Or Custom Air Volume 1600m³/h
Loading Port Shenzhen Or Guangzhou Terms EXW/FOB/CIF
High Light

hvac hepa filter

,

bag filter systems

Leave a Message
Product Description

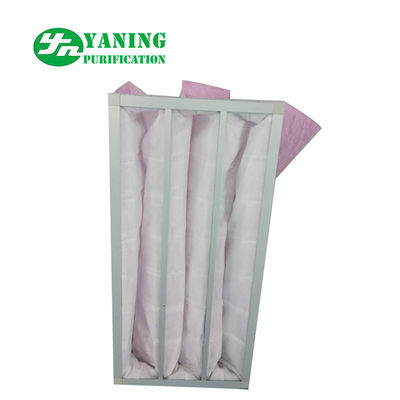

F7 pink polyester pocket filter housing / bag medium efficiency filter



1. Bag Medium efficiency filter description

Filter media: Synthetic fiber
Frame material: Galvanized sheet
Header:20-25mm
Grade: G3 G4 F5-F9
Gasket: Foamed sealant stripe(optional)
Testing standard: EN799 ANSI/ASHRAE 52.1-1992
Working temperature: up to 80°C



Primary bag filter is made of synthetic fiber with gradually increasing density and strong toughness. It adopts seamless welding technology and has good air tightness and binding strength, so as to avoid air leakage or cracking when the air pressure is high.
Pocket filter is specially designed for better and steady air filtration efficiency. The dimensions of the filter can be altered based on clients requirements. Pocket filter is applicable to clean room system of food industry, pharmaceutical industry, electronics industry and ventilation system of industrial plant as well as commercial building.



2. Bag Medium efficiency filter Advantages:
1).Welded edge to avoid leakage
2).Self-supported
3).Fire retardant
4).Fixed airflow tunnle insdie each pocket.
5).High volume and capapcity



3. Bag Medium Efficiency Filter Application:

1),As a pre-filter in the AHU and AC ventilation

system to prevent the accumulation of dust within the system.

2),As a pre-filter in a huge size air compressor.

3),As a pre-filter in the AHU and AC ventilation system

of a clean room to prolong the service life of secondary

or tertiary filters.

4),As a main filter in the ventilation system of an

industrial plant.

5),As a main filter for big particles removal in the AHU

or AC ventilation system of a building.

Wide size are available.




4. Pocket Filters Standard Model Technology Parameter

W*H*D(mm) Pocket Number(pcs) Filter Class Filter Area(m2) Airflow(CMH) Intial Pressure Drop(Pa)
592*592*600 8 F5 5.6 3400/4250 35/53
F6 3400/4250 47/72
F7 3400/4250 116/150
F8 3400/4250 126/160
592*287*600 4 F5 2.8 1700 35
F6 1700 47
F7 1700 116
F8 1700 126
592*592*530 6 F5 3.6 3400 48
F6 3400 65
F7 3400 140
F8 3400 160
