Stainless Steel Laminar Air Flow System Sampling Booth With Antistatic Curtain Door

Place of Origin Guangdong China
Brand Name YN
Certification CE/ISO
Model Number YN-120
Minimum Order Quantity 1 PCS
Price Reconsideration
Packaging Details Wooden case or as your requirement
Delivery Time 7-15 workdays
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000 sets /month
Product Details
Product Name Sampling Booth Material 304 Stainless Steel
Size 1200*800*2020mm Cleanliness 10000 Class≥0.5μm(USA Federal Standard 209E)
Air Velocity 0.25-0.6m/s Configuration0.37W The Differential Gauge And Sterilization Lamp
Normal Working Conditions 5℃~80℃ Relative Humidity:≤80% Packaging Wooden Case
High Light

operating room ceiling system

,

laminar flow ceiling

Leave a Message
Product Description

Stainless steel laminar air flow sampling booth with antistatic curtain door



1. Clean sampling vehicle description:



Sampling booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.



Widely used in electronics, light sources, precision instruments, instruments, microbiology, agricultural seed cultivation research, food, processing and other industrial sectors and scientific experimental sites, have a good effect on improving process conditions, improve product quality and yield.

Cleanliness: Class 100 @ ≥ 0.5um (US Federal Standard 209E)

1), wind speed: 0.2 ~ 0.5m / s (** wind speed 0.3m / s)

2). Noise: ≤62dB(A)

3), power supply: AC220V, 650HZ

4). Vibration Half-peak value: ≤5um

5), the maximum power consumption: ≤ 0.8KW

6), weight: 50-150kg



2.Sampling booth characteristics:



>Create a partial clean grade class A area
>Negative pressure to prevent the cross infection or make harm to the operator
>Three level filter to make sure the filter efficiency
>Frequency-converting control to ensure the air velocity stable
>With touch screen to check the working condition
>PLF screen to ensure air flow no turbulence
>Customized design is welcome.



3.Clean sampling vehicle application method:



1).Clean sampling vehicle moved to where sampling is required, fixed sampling vehicle (brake).

2). Turn on the power, turn on the power switch, turn on the fan switch, the fan starts to work, adjust the voltage to the appropriate (usually 220V), and put the sampling barrel after the clean sampling vehicle is running for 15 minutes.

3). After the sampling is completed, remove the sampling bucket, turn off the fan and power supply, unplug the power cord, and move the sampling vehicle to its original position.

Note: According to the use conditions, the anemometer should be used to measure the wind speed in the working area regularly. If it is found that the technical requirements are not met, the air volume of the fan can be adjusted. If necessary, replace the high efficiency or primary efficiency air filter.



4. Clean sampling vehicle parameter



Model YN-980(B)
(Steel plate coating)

YN-980
(stainless steel)

Cleanliness

· 10000 class≥0.5μm(USA Federal Standard

209E)

· 10000 class≥0.5μm(USA Federal Standard

209E)

Air Velocity

0.25-0.6m/s 0.25-0.6m/s

Noise

≤58dB(A) ≤58dB(A)
Power AC,Single phase 220V/50Hz AC,Single phase 220V/50Hz
Max Power Dissipation 0.37kW 0.37kW
Normal working conditions 5℃~40℃ Relative humidity:≤80% 5℃~40℃ Relative humidity:≤80%
Barometric pressure 86~106KPa 86~106KPa
External dimension 700*900*1900 700*900*1900
Wind speed adjustment Wind speed 5 adjustable Wind speed 5 adjustable


Product detail photos

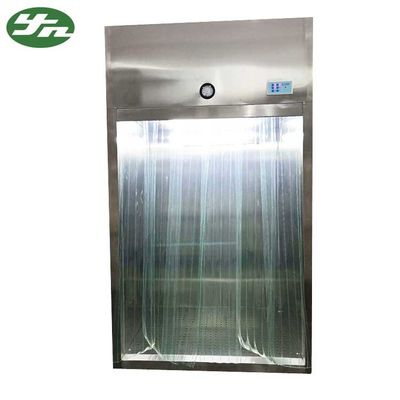

Stainless Steel Laminar Air Flow System Sampling Booth With Antistatic Curtain Door 0Stainless Steel Laminar Air Flow System Sampling Booth With Antistatic Curtain Door 1
