Wireless Press Switch Decontamination 99s Cleanroom Air Shower

Wireless Press Switch Decontamination 99s Cleanroom Air Shower
Wireless Press Switch Decontamination 99s Cleanroom Air Shower Wireless Press Switch Decontamination 99s Cleanroom Air Shower Wireless Press Switch Decontamination 99s Cleanroom Air Shower Wireless Press Switch Decontamination 99s Cleanroom Air Shower

Large Image :  Wireless Press Switch Decontamination 99s Cleanroom Air Shower

Product Details:

Place of Origin: China Guangdong
Brand Name: YN
Certification: CE/ISO
Model Number: YN-AST

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Reconsideration
Packaging Details: wooden case or as you requset
Delivery Time: 5-15 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000pcs/month
Detailed Product Description
Material: High Quantity Powder Coating Steel Size: 1500*2000*2500mm Or Custom
Blowing Side: On Three Sides By Blowing Certificate:: CE/ISO9001
Door: Automatic Sliding Door Switch: Wireless Press Switch
High Light:

air jet shower

,

stainless steel air shower

Decontamination air shower with wireless press switch clean room accessories



1. Decontamination air shower description

The channel air shower  is an auxiliary equipment for clean workshops and supporting clean rooms. It is used to blow dust on the surfaces of human bodies and carrying objects that enter clean areas.
At the same time, the air lock acts to prevent unpurified air from entering the clean area. It is an effective device for human body, material purification, and prevention of outdoor air pollution in the clean area. It is versatile and can be used with all cleanrooms and cleanrooms. The air shower channel is suitable for large-scale purification companies.



2. Decontamination air shower adhibition

1) Door open method: automatic sliding door by photoelectric sensor. When personnel enter air shower, the door will open automatically. When personnel go out of it, the door will be closed automatically. The control system run automatically, the two doors electronically interlocked, with photoelectric sensor (one door in open state, the other door must be in closed state. When personnel enter it, the system will shower automatically by photoelectric sensor);
2) Material: Stainless Steel SUS304 ;
3) Touch screen to control blowing time and lamp time;
4) Infrared sensor automatic blowing, automatic stop;
5) Three-side blowing, left, right, and top, stainless steel nozzles;
6) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
7) Have electronic interlock air shower patent.



3. Air shower parameter

Model YN-AS1 YN-AS2 YN-AS3 YN-AS4
Applicable Number of People 1 3-4 4-5 5-6
Air Shower Time 0- 99s (Adjustable)
Number of Nozzle 12 (two Sides) 24 ( two Sides ) 36 ( two Sides ) 48( two Sides )
Mouth Diameter of Nozzle Φ 30 mm Φ 30 mm Φ30 mm Φ30 mm
Air Velocity at the Nozzle >25m/s >25m/s >25m/s >25m/s
Dimension of High Efficiency Air Filter (mm) 600×600×120 600 ×600×120 600×600×120 600×600×120
Dimension of Air Shower Area (mm) 800×1000×1960 800×2000×1960 800×3000×1960 800×4000×1960
Outside Dimension (mm) 1700×1240×2200 1700×2240×2200 1700×3240×2200 1700×4240×2200
Power Supply:380V,50HZ, we can made nonstandard voltage for different country.
Maximum Power Consumption 1.5KW 3KW 4.5KW 6KW

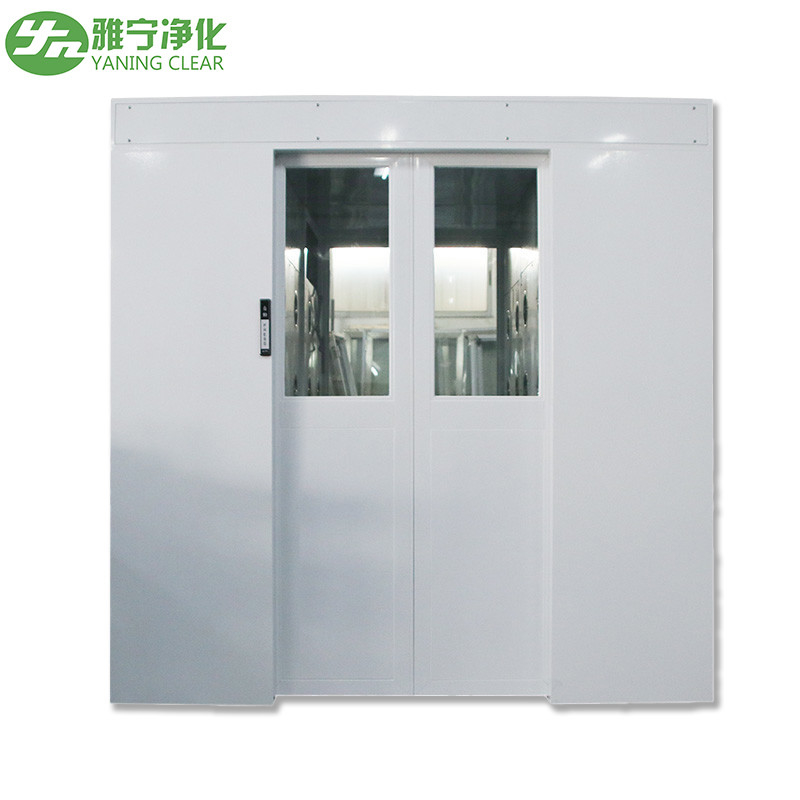

4.Photos of decontamination air shower

Wireless Press Switch Decontamination 99s Cleanroom Air Shower 0


Wireless Press Switch Decontamination 99s Cleanroom Air Shower 1
