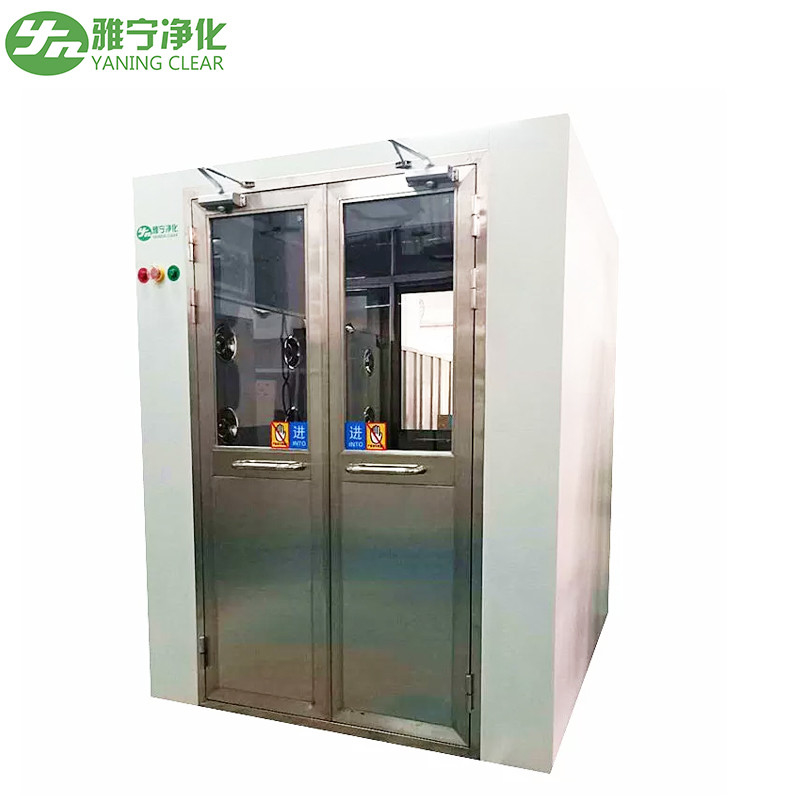

Double Door Working Staff ISO 8 Air In Shower

Double Door Working Staff ISO 8 Air In Shower
Double Door Working Staff ISO 8 Air In Shower Double Door Working Staff ISO 8 Air In Shower Double Door Working Staff ISO 8 Air In Shower Double Door Working Staff ISO 8 Air In Shower

Large Image :  Double Door Working Staff ISO 8 Air In Shower

Product Details:

Place of Origin: CHINA
Brand Name: YN
Certification: CE ISO SGS
Model Number: YNC-AS2000

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: 1000-2000USD
Packaging Details: standard export packaging
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month
Detailed Product Description
Material: Powder Coating Steel Blow Side: 2 Sides Or 3 Sides
Air Speed: 25m/s Nozzle: 24 Pcs
Power: 2.2KW Product Name: Air Shower Unit
Hepa Filters: 4 Pcs Fan: Centrifugal Fan 4 Sets
High Light:

air jet shower

,

stainless steel air shower

Air in shower for working staff air shower for ISO 8 clean room with double door



1.Air shower room structure

1). The air shower room is composed of several parts, such as a box, a door, an effective filter, a blower, a distribution box, and a nozzle.

2). The floor of the air shower room is usually made of stainless steel, and the surface of the box is made of stainless steel or steel plate, and the welding surface is milky white paint.

3). The box is made of excellent cold-rolled steel plate, and its surface is electrostatically sprayed with plastic, which is beautiful and elegant.

4). The main materials and dimensions of the box can be customized according to customer requirements.



Key Features

1.YaNing Air Shower filters meet EN 1822 for H13 Performance.

2.Microprocessor programming capabilities.
3.Standard interlocking doors which release automatically with power power failure.
4.In case of a power failure, all doors are unlocked automatically, and controller setting saved.
5.A disposable pre-filter with 85% arsenate extends the life of HEPA Filter.
6.The Air Shower is constructed of steel sheets with an abrasion-resistant oven-baked powder coated finish.
7. Each Air Shower is individually factory tested for safety and performance standard.
8.The Air Shower is fully assembled and ready to install and operate when shipped.
9.The Air Shower is warranted for 1 year excluding consumable parts and accessories.



2.Type: Double door Air Shower

˙Outside Dimension (mm):2000W×2000D ×2150H
˙Dimension of Air Shower Area (mm):1500W×2000D×1980mmH
˙Applicable Number of People:6 person
˙Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙Number of Nozzle:24(Two Sides) Stainless Steel 304
˙Mouth Diameter of Nozzle:Φ30mm
˙Control panel:sus304 frame,LCD display, PLC control system
˙Speed of Air Flow at the Nozzle:>28m/s
˙Dimension of High Efficiency Air Filter (mm):610×610 ×120mm
˙Lock:Electronic Interlock,two door can't open at the same time.
˙Pre-Filter:600*350*10(mm),4PCs,synthetic fiber with aluminum
˙HEPA Filter:4PCs,600*600*120(mm),
˙FAN:4sets,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
˙LAMP:2PCs LED light,Power:2*15W.
˙Shower Time:0-99s adjustment
˙HEPA Filter Efficiency:H13,99.995%@0.38um.
˙Maximum Power Consumption:2.2KW
˙Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage)



Model YN-S1 YN-S2 YN-S3 YN-S4
Applicable Number of People 1 2-4 4-5 5-6
Air Shower Time 0- 99s (Adjustable)
Number of Nozzle 12 (Two Sides) 24 (Two Sides) 36 (Two Sides) 48 (Two Sides)
Mouth Diameter of Nozzle Φ 30 mm Φ 30 mm Φ30 mm Φ30 mm
Speed of Air Flow at the Nozzle >25m/s >25m/s >25m/s >25m/s
Dimension of High Efficiency Air Filter (mm) 600×600×120 600 ×600×120 600×600×120 600×600×120
Dimension of Air Shower Area (mm) 800×900×196 0 800×1900×196 0 800×2900×196 0 800×3900×196 0
Outside Dimension (mm) 1400×1000×210 0 1400×2000×2100 1400×3000×2100 1400×4000×2100
Power Supply :380V,50HZ, we can made nonstandard voltage for different country.
Maximum Power Consumption 1.1KW 2.2KW 3.3KW 4.4KW
