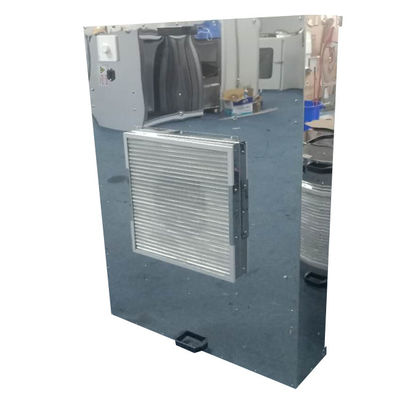

170W Mirror Finished FFU Fan Filter Unit Stainless Steel 1175*1175mm HEPA

Place of Origin China
Brand Name Yaning
Certification CE& ISO
Model Number 1175*1175*230mm
Minimum Order Quantity Negotiable
Price discussion
Packaging Details Standard Export Packaging
Delivery Time According to the QTY
Payment Terms T/T, Western Union
Supply Ability 3000 sets/month
Product Details
Material Mirror Finished 304 Stainless Steel Power 350w
Power Supply AC 220 V /50 Hz Purification Grade Class 100
Air Velocity 0.35-0.65 M/s Air Flow 2400 M3/h
Warranty 12 Months Weight 30Kg
High Light

170W FFU Fan Filter Unit

,

Mirror Finished FFU Fan Filter Unit

,

HEPA Clean Room Fan Filter Units

Leave a Message
Product Description



Hepa filter fan unit hepa filter fan unit with mirror finished stainless steel 1175*1175mm


A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to clean rooms,
laboratories, medical facilities or micro-environments by removing harmful airborne particles from recirculating air.
The units are installed within the system's ceiling or floor grid. Large clean rooms require a proportionally large
number of FFU, which in some cases may range from several hundred to several thousand.Units often contain their
own pre-filter, HEPA filter and internally controllable fan air distribution.



  • Features:
  • ※ Power cord for easy plug-in connection
  • ※ Stepless controller or 3 steps controller
  • ※ Pre filter and HEPA filter are included
  • ※ Cabinet: Aluminum/ Galvanized/ SUS304/ SUS201
  • ※ Low noise operation
  • ※ Energy efficiency design
  • Application:
  • ※ Cleanroom
  • ※ Clean booth
  • ※ Production room
  • ※ The fan filter unit has multiple uses in semiconductor, LCD manufacturing, and other industries requiring a clean room, particularly Class10 - Class100000
Model YN-FFU-575 YN-FFU-1175 YN-FFU-1225 YN-FFU-1175×2
Cabinet Size 575×875×230 575×1175×230 615×1225×230 1175×1175×230
Cabinet Material Epoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel
Air Flow(m3/h) 800 1100 1200 2000
Noise(dB) 56 56 58 58
Air Velocity 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s
HEPA Filter Size 570×870×69 570×1170×69 610×1220×69 1170×1170×230
Efficiency 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm
Frame Aluminum
Initial pressure loss 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s
Fan Power Supply 220V/50hz 220V/50hz 220V/50hz 220V/50hz
Type Aluminum turbofan
Vibration 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s
Total Power 170W 170W 210W 275W
Weight 24kg 28kg 31kg

47kg




Salient Features: long use life, low noise and vibration, maintenance-free, adjustable air speed, thousands unit can be easily controlled.
Factory Strict Test: according to international ISO14644-1 standards, with a dust particle counter detection one by one to ensure the quality.
Application: widely used in the semiconductor, electronics, flat panel displays, and optical disk drive manufacturers, bio-industries, assembled clean room and laminar flow hood.Etc.

170W Mirror Finished FFU Fan Filter Unit Stainless Steel 1175*1175mm HEPA 0170W Mirror Finished FFU Fan Filter Unit Stainless Steel 1175*1175mm HEPA 1
