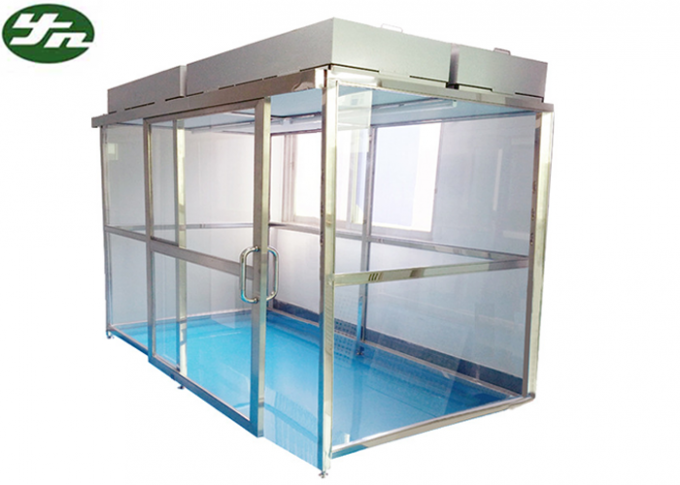

Professional ISO 5 Cleanroom Dispensing Booth
Material | SS304 Frame Or Aluminum | Purification Levels | Class 100-100000 |
---|---|---|---|
Specification | Customized | Wall | Hardwall Or Softwall |

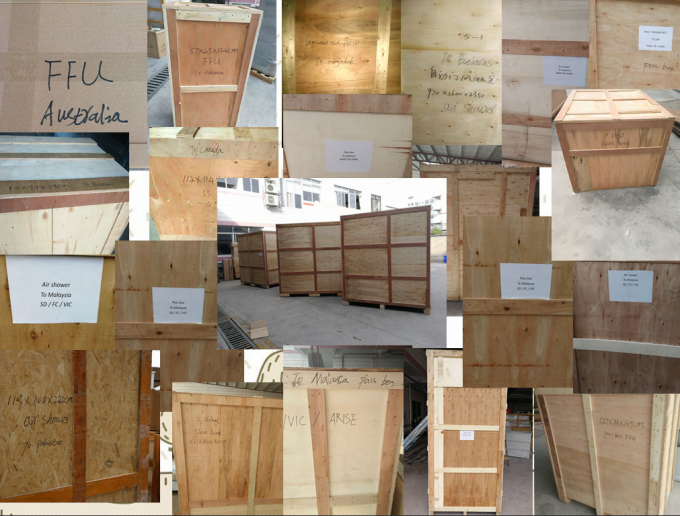

Packaging | Wooden Case | Terms | CIF/EXW/FOB |
Delivery Time | 7-15days | ||
High Light | dispensing booth,laminar flow booth,ISO 5 Cleanroom Dispensing Booth |
FDA GMP Standard ISO 5 Clean Room with Vertical Air Flow for Research Lab
Clean room daily management and maintenance:
Clean booths mainly used in electronic, circuit boards, foods, and other areas where high cleanliness is required. How long is the lifespan of clean sheds, and how can they be used to extend the service life of clean sheds? This is what many users want to know. For different clean booth users, there will not be a unified answer. In fact, the service life of the clean booth is mainly related to the usual maintenance, there is no specific time value, generally well-maintained user services, clean booth can be used 5-8 years, the effect can also meet the normal requirements. For users who do not pay attention to maintenance, they may not reach the cleanliness requirements for 1-2 years.
If you do the following, I believe that you can effectively extend the life of the clean shed.
1, temperature and humidity. The temperature and humidity of the clean booth are usually controlled in the case of a change in the control value or in a range of 10%.
2, energy saving. Produced in a clean shed, the unit consumes a lot of energy, which is mainly caused by the large power consumption of the air-conditioning system. In the air-conditioning system of the clean booth, the high-efficiency filter, medium-efficiency filter, and effect filter follow the prolonged operation time, and the amount of dust adsorbed on the filter gradually increases, causing the pressure loss to increase and the air volume to decrease. Therefore, the primary filter must be replaced and cleaned frequently.
3, entrants handling and teaching. Since the first factor that may affect cleanliness is dust, the workers entering the clean shed must be healthy in their mental state and physical condition, and they must be instructed to improve their cleanliness. Responsibility for working in the shed. What is more important is to deepen the substantive understanding of the clean shed itself.
4, the handling of clean clothes. As mentioned earlier, clean work clothes must be worn when entering a clean shed. From the perspective of no dusting, most of them are full-blown cleansing clothes made of polyester fibers. However, with the extension of the use of time, the dust emission of such a full-scale clean suit will increase, so regular cleaning must be performed.
Model | YN-CS-23B | YN-CS-34A | YN-CS-68C |
(W×L×H)mm External Dimension |
2100×3100×2590 | 3100×4100×2590 | 6100×8100×2590 |
(W×L×H)mm Internal Work Zone |
2000×3000×2200 | 3000×4000×1900 | 6000×8000×2200 |
Clean Class Level | 1000Class(ISO6) | 100Class(ISO5) | 10000Class(ISO7) |
Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
Noise | ≤65dB | ≤65dB | ≤65dB |
Vibration Half Peak | ≤5um | ≤5um | ≤5um |
Light | 40W×2 | 40W×4 | 40W×8 |
Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Material |
Framework: Epoxy powder coated steel/ Stainless steel/Aluminum Wall: Anti-static strip curtain/Soft air curtain/Plexiglas |
Free design according to your site:

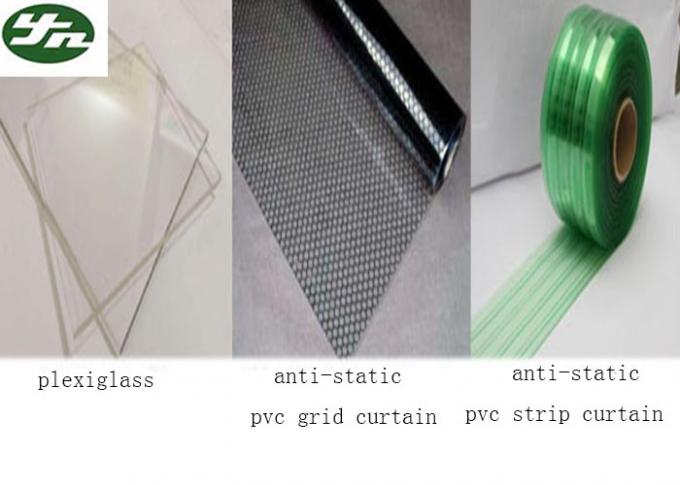

Materials option:

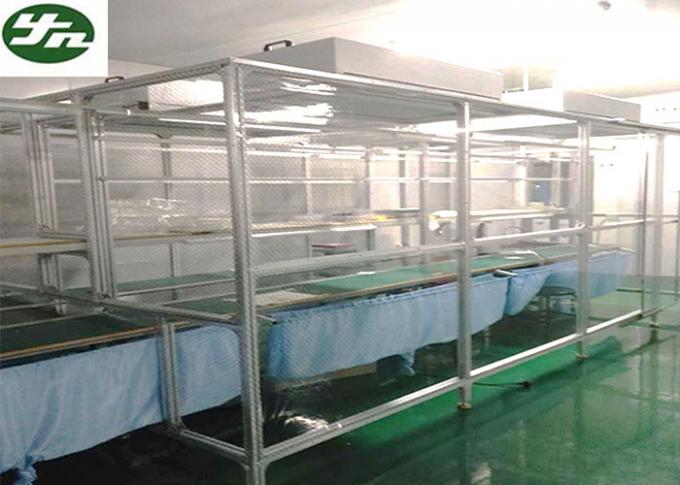

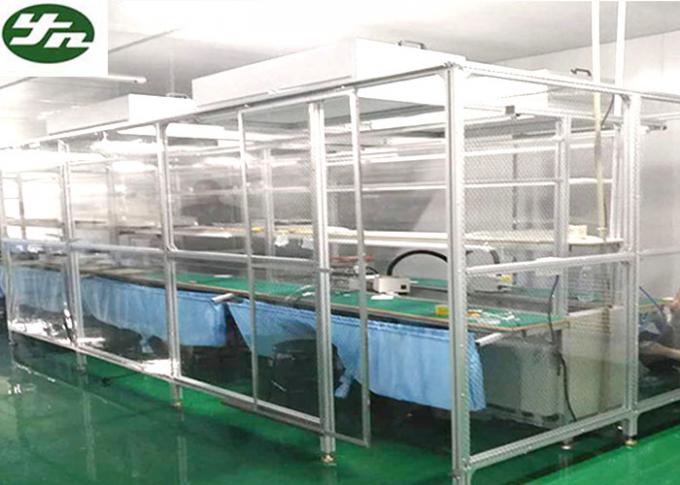

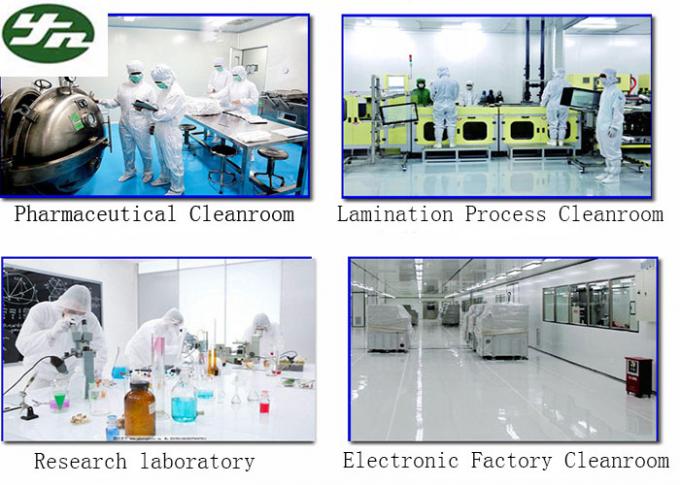

Application:
Reasons you choose:
1,free design according to your requirements;
2,fast delivery time
3,installation guilding(including pre-installation pic,videos and assembly drawing;
4,competitive price with good price and after-sale-service
