Home > products > Cleanroom Air Shower > YANING Standard Clean Room Air Shower With Stainless Steel Support customization

YANING Standard Clean Room Air Shower With Stainless Steel Support customization

Product Details

Place of Origin: China

Brand Name: YANING

Certification: CE ISO

Model Number: YN-1500

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD+1800+1PCS

Packaging Details: 1290*1000X2050mm Export standard wooden case shipment

Delivery Time: 7-10days

Supply Ability: 100+PCS+30days

Get Best Price
Product Details
High Light:

Clean Room Air Shower 380V

,

18PCS Nozzle Cleanroom Air Shower

,

24PCS Nozzle Cleanroom Air Shower

Model:
Yn-1500A
Exterior Size Lxwxh (mm):
1290X1000X2050
Interior Size Lxwxh (mm):
790X880X1910
Air Shower Time:
0-99 Seconds
Stainless Steel Nozzles:
12pcs
Air Velocity:
22-27m/S
HEPA Size:
610X610X90X1PCS
Equipment Power Parameter:
380V/50Hz
Model:
Yn-1500A
Exterior Size Lxwxh (mm):
1290X1000X2050
Interior Size Lxwxh (mm):
790X880X1910
Air Shower Time:
0-99 Seconds
Stainless Steel Nozzles:
12pcs
Air Velocity:
22-27m/S
HEPA Size:
610X610X90X1PCS
Equipment Power Parameter:
380V/50Hz
Product Description

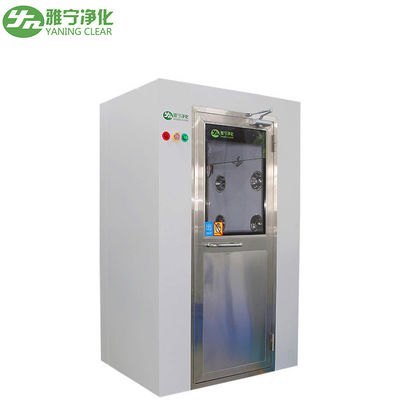

YANING Standard Clean Room Air Shower With Stainless Steel

YANING Standard Clean Room Air Shower With Stainless Steel Support customization 0





YANING SERIES PERSONAL AIR SHOWER



YANING brand YN Series Personal Air Shower is available in three different materials: full Stainless Steel, Stainless Steel Interior, and Steel Plate. With patented air shower design technologies that which ensures a clean seal that prevents contaminant seepage, it can educe large amounts of dust particles brought by staff, and includes 360-degree air jet nozzles that work at more than 25 m/s. with automatic air showering type and clear working indication lights that easy operation.



Configuration option


All SS304
All SS201
Inside power coating, outside stainless steel
Double blows air shower
Three blows air shower
Automatic door device











Product Parameter
Name YN-1500 YN-2000 YN-2300 YN-Tunnel
Outside dimension(WxDxH) 1800x1500x2180 2000x1500x2180 2300x2000x2180 1800Wx4000Dx2180H
Inside dimension (WxDxH) 1300x1380x1980 1500x1380x1980 1800x1880x1980 1300Wx3880Dx1980H
SS Nozzle 18PCS 18PCS 24PCS 48PCS
Air velocity 22-27m/s 22-27m/s 22-27m/s 22-27m/s
Noise <65 <65 <65 <65
(mm) Filter Size 610x610x90x2pcs 610x610x90x2pcs 610x610x90x4pcs 610x610x90x8pcs
Filter Efficiency 99.99%@0.3 99.99%@0.3 99.99%@0.3 99.99%@0.3
(W)Motor Power 1100x2pcs 1100x2pcs 550x4pcs 550x8pcs
(W)Light Power 8x1pcs 8x1pcs 8x2pcs 8x4pcs
Power Supply 380V/50Hz 380V/50Hz 380V/50Hz 380V50Hz



ANING Air Shower Main Features
Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.
High quality infrared sensor automatically showering;
Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;
Imported electronic interlock device, two doors can not opened at same time;
With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;
Standard of the modular design, make field assembly faster and more convenient maintenance.
But according to user needs and site condition transformation function and form.

Door Opening Direction
YANING Standard Clean Room Air Shower With Stainless Steel Support customization 1

YANING Standard Clean Room Air Shower With Stainless Steel Support customization 2Quality details:



 MINI-PLEATED HEPA FILTER
 Light weight, big air flow volume, long uisng life two stage filteration system ensure the clean class.



 SUPER HUGE AIR FLOW VOLUME AIR SHOWER ENGINE
 Supply air velocity more than 25m/s CE Certified, Safety Operation



Equipped with the corresponding number of multi-angle adjustable stainless steel nozzle, left and right side blowing, outer rotor large air volume low noise fan, surface wind speed is greater than 25m/s, to ensure that the wind can blow to the goods up to 18m/s, in line with the national standard.

Products Description

 YANING Standard Clean Room Air Shower With Stainless Steel Support customization 3               YANING Standard Clean Room Air Shower With Stainless Steel Support customization 4



       Stainless steel Air shower                          Powder coated steel Air shower
YANING Standard Clean Room Air Shower With Stainless Steel Support customization 5YANING Standard Clean Room Air Shower With Stainless Steel Support customization 6
Success case show
YANING Standard Clean Room Air Shower With Stainless Steel Support customization 7YANING Standard Clean Room Air Shower With Stainless Steel Support customization 8
