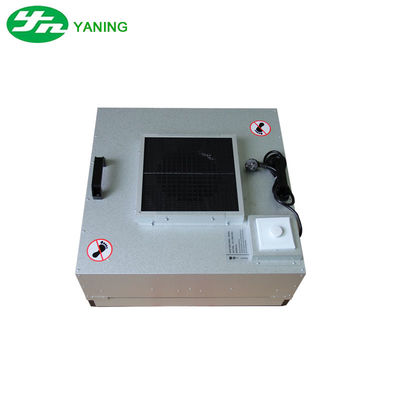

Custom 3 Grade FFU Fan Filter Unit

Product Details

Place of Origin: China

Brand Name: Yaning

Certification: CE& ISO

Model Number: 575*575*230

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: online discussion

Packaging Details: Standard Export Packaging

Payment Terms: T/T, Western Union

Get Best Price
Product Details
High Light:

ffu filter fan unit

,

hepa fan filter unit

,

170w Fan Filter Unit

Material:
Stainless Steel ,powder Coat Steel
Power:
170w
Power Supply:
AC 220 V /50 Hz
Purification Grade:
Class 100
Air Velocity:
0.35-0.65 M/s
Air Flow:
500-1500 M3/h
Warranty:
12 Months
Weight:
15Kg
Material:
Stainless Steel ,powder Coat Steel
Power:
170w
Power Supply:
AC 220 V /50 Hz
Purification Grade:
Class 100
Air Velocity:
0.35-0.65 M/s
Air Flow:
500-1500 M3/h
Warranty:
12 Months
Weight:
15Kg
Product Description

3 Grade adjustable Aluminum Alloy wither color fan filter unit (FFU) for Industry clean room


Ceiling mounted fan powered cleanroom air filter module with energy efficient powered clean room level air filtration with all-welded construction, integrated prefilter section, electronic fan speed control, and aerosol distribution plate. Each unit may be controlled through remote control with each unit have a unique communication identifier. The Pharmaseal FFU accepts gel or gasket seal filters that are available in efficiencies from ISO 15 E to ISO 65 E inaccordance with the new ISO Standard 29463-1.



Model YN-FFU-575 YN-FFU-1175 YN-FFU-1225 YN-FFU-1175×2
Cabinet Size 575×875×230 575×1175×230 615×1225×230 1175×1175×230
Cabinet Material Epoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel
Air Flow(m3/h) 800 1100 1200 2000
Noise(dB) 56 56 58 58
Air Velocity 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s 0.3~0.5m/s
HEPA Filter Size 570×870×69 570×1170×69 610×1220×69 1170×1170×230
Efficiency 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm 99.995%0.3µm
Frame Aluminum
Initial pressure loss 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s 220pa/0.45m/s
Fan Power Supply 220V/50hz 220V/50hz 220V/50hz 220V/50hz
Type Aluminum turbofan
Vibration 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s 0.2~0.5mm/s
Total Power 170W 170W 210W 275W
Weight 24kg 28kg 31kg

47kg




Salient Features: long use life, low noise and vibration, maintenance-free, adjustable air speed, thousands unit can be easily controlled.
Factory Strict Test: according to international ISO14644-1 standards, with a dust particle counter detection one by one to ensure the quality.
Application: widely used in the semiconductor, electronics, flat panel displays, and optical disk drive manufacturers, bio-industries, assembled clean room and laminar flow hood.Etc.


Custom 3 Grade FFU Fan Filter Unit 0

Custom 3 Grade FFU Fan Filter Unit 1

Custom 3 Grade FFU Fan Filter Unit 2
