Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry

Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry
Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry

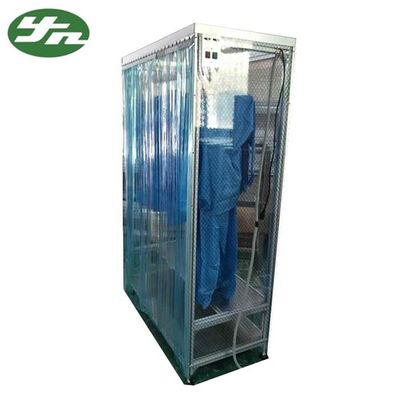

Large Image :  Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-CS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: wooden case or as your requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000pcs/month

Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry

Description
Product Name: Clean Stoker Material: Stainless Sheet Frame
Wall:: Anti-static Curtain Wall Efficiency: H12-H14
Noise: Low Noise Size:: Customed
Laminar Flow: Vertical Flow
High Light:

ss clean room furniture

,

clean room cabinets

Anti-static curtain vertical laminar flow clean stoker for electronic industry



1. Clean stoker description:



The clean stoker is used for storing or suspending dust-free clothes in the clean room buffer room or auxiliary room, keeping the clean and clean clothes clean, so as to prevent the dust from being brought into the clean room to cause pollution when the clean clothes are placed. According to user needs and optional ultraviolet light for sterilization.



1). Direct drive high efficiency centrifugal fan,low noise,maintenance-free low vibration,long life,stable performance;

2). Self-produced ultra-high efficiency,ultra-low pressure,PTEE membrane filter-more than 30% energy saving;

3). Indicating the pressure on both sides of the high efficiency filter,promptly remind the replacement of high efficiency filter;

4). Advanced design,it is made according to international standards,reliable performance is extremely high.





2. Clean stoker parameter



Product model P31-YN01-00 P31-YN02-00
Size(mm) W1500*D650*H2200 W2000*D650*H2200
Fan configuration 315 1pcs 315 2pcs
Fan power 145W/pcs 145W/pcs
Class grade 100 class 100 class
Air Velocity(m/s) 0.45m/s±15% 0.45m/s±15%
Noise 60-65 dB(A) 60-65 dB(A)
Lamp 1pcs 2pcs
Pre filter 1pcs 2pcs
Hepa filter 1pcs 2pcs
Material SUS201#/SUS304#/SUS316#
Power supply 220V/50Hz
Size can be customed as customer's requiement



3. Clean stoker features:



1). German EBM direct-drive high efficiency centrifugal fan, low noise, maintenance-free, low vibration, long life, stable performance.

2). High-quality ultra-high efficiency, ultra-low resistance, PTEE membrane filter - saving more than 30%.

3). The United States Dwyer pressure differential table, indicating the pressure difference on both sides of the high-efficiency filter, timely reminder to replace the high efficiency filter.

4). advanced design, according to the United States Federal Standard 209E design, reliability can be extremely high.

5). Prefilters and chemical molecular filters can be added as needed to create a better production environment.





4. Clean stoker working principle



The air is sucked into the pre-filter through the fan and passed through the static pressure box into the high-efficiency filter for filtering. The filtered air is sent out in the state of vertical or horizontal air flow, so that the working area reaches a class 100 degree of cleanliness, and the stored clothes are kept clean to the environment Degree requirement

The purifying wardrobe is made up of perfectly designed and equipped air showers. Effectively keep the clothes stored in the purifying closet dry and clean, and can blow off the dirty dust and dirt on the clothes. The built-in tuyere can blow strong and powerful clean air from multiple directions at the same time. The airflow is driven by a high-efficiency centrifugal fan and filtered through a stainless steel plate. It also meets the standards of ISO14644 Class 6 clean room (ie U.S. federal standard - Class 1000 clean room) to Class 4 clean room (grade 10 clean room).



Clean wardrobes and self-cleaning wardrobes are mainly used in air purification industry clean rooms, clean rooms, laboratories, operating rooms, and GMP workshops.

Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry 0



Anti - Static Curtain Vertical Clean Room Garment Cabinet Stoker For Electronic Industry 1
