H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation

China H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation supplier
H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation supplier H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation supplier H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation supplier

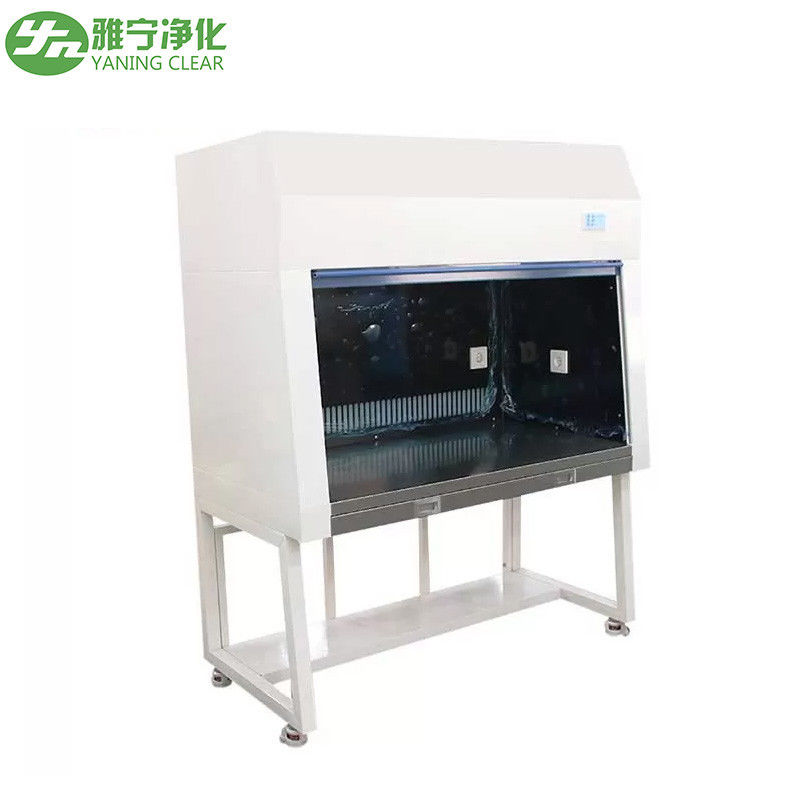

Large Image :  H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation

Product Details:

Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-VC1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Reconsideration
Packaging Details: Wooden case or as your requset
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, , L/C, D/A
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Product Name:: Vertical Laminar Flow Hood Air Flow Material:: Powder Coating Steel
Size:: 1500(W)*750(D)*1800(H)mm Or Customize Internal Size (W*D*H): 1340*700*700mm
Laminar Type;: Vertical Laminar Fan:: D400mm Aluminum Alloy Impeller
Hepa Filter Efficiency: H13 / H14 Terms: CIF/FOB/EXW



Beautiful appearance vertical laminar flow hood air flow cleaning laminar flow hood





1. Vertical laminar flow hood description:

PCR Cabinet are our special model for PCR operation.It supply a clean vertical laminar air flow positive environment to keep the safety DNA operation.The UV timer can help you to set the sterilization time after your operation.The UV and door interlock function can stop your wrong start the UV Lamp.The Front and two sides 6mm toughed glass can help stop the UV light irradiate.

Polymerase chain reaction (PCR) is a scientific technique in molecular biology to amplify a single or a fewcopies of a piece of DNA across several orders of magnitude, generating thousands to millions of copies of a particular DNA sequence. PCR is now a common and often indispensable technique used in medical and biological research labs that are working with DNA and RNA. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR reaction.



2.Main advantages

1.UV sterilization systema.

2.HEPA filter with efficiency: ≥99.999 at 0.3µm.

3.LED display for time and pressure.

4.Audio alarm: glass window over height alarm; filter replacement alarm.

5.Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.

6.UV timer (1-99 minutes): When the set time expires, the UV lamp automatically switches off in



3.Laminar flow cabinet parameter

Model YN-V680 YN-V800 YN-DDC YN-SDC YN-SDC2100
External Size (W*D*H), mm 680*410*1160 802*615*1575 1040*600*1730 1440*600*1730 2100*740*2550
Internal Size (W*D*H), mm 630*375*615 800*600*540 940*580*540 1340*580*540 2000*705*1100
Work Surface Height No 660mm 730mm 730mm 730mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window No Manual, 5mm toughened glass, anti-UV Motorized, 8mm PMMA
Max Opening No 490mm 350mm 400mm
Fluorescent Lamp 14*1 14W*1 21W*1 28W*1 36W*1
UV Lamp Emission of 253.7 nanometers
Consumption 160W 350W 350W 600W 700W
Waterproof Socket 2, total load≤500W No
Caster No Universal wheel with leveling feet
Power Supply 110/220V±10%; 60/50Hz
Standard Accessory

Fluorescent lamp, UV lamp*2 ( for all models )

Water & gas tap ( for model BBS-V680 )

Base stand ( except model BBS-V680 )

Foot switch and Waterproof socket*2 ( for model BBS-SDC2100 )

Gross Weight 50kg 120kg 150kg 210kg 300kg
Package Size (W*D*H), mm 750*460*1170 960*770*1800 1200*780*1350 1600*780*1350 2250*1000*2120

Customized design is welcome.

4.Production detail photos

H13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR OperationH13 / H14 LED Display Laminar Clean Bench Vertical Hood Air Flow For PCR Operation
