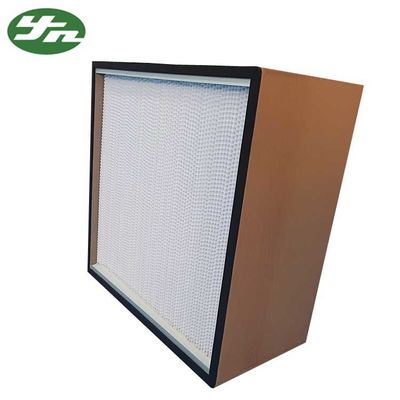

High Capacity Deep Pleated Hepa Filter 2500m³/h Air Volume With Wooden Frame

Place of Origin Guangdong China
Brand Name YN
Certification CE/ISO
Model Number YN-DHF
Minimum Order Quantity 10pcs
Price Reconsideration
Packaging Details First in pp bag,then in carton,final made a wooden box. or as your requirement.
Delivery Time 7-25 workdays(according to the QTY)
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000pcs/month
Product Details
Product Name Wooden Frame Hepa Box Frame Wooden Frame
Size 610*610*292mm Or Custom Filter Media H2-H14 Glass Fiber
Air Volume 2500m³/h Separater Paper
Efficiency H13 MOQ 10PCS
High Light

high efficiency hepa filter


mini pleat hepa filter

Leave a Message
Product Description

Wooden frame deep pleat hepa filter with paper separator for clean room


1, Deep pleat hepa filter description

Part Name 610*610*292mm Wooden Frame Deep Pleat Box HEPA Filter
Part NO. YN-610
Sizes 610*610*292mm HVAC HEPA Filter
Colour Silver(Customized)
Structures Aluminum or Iron Frame and Cardboard Seperator
Filtering Efficiency Grade H13(Customized)
Special Properties Deep V-Pleats Provide Large Media Surface Area for More Effective Filtration While Keeping Airflow Resistance Low
Packaging (Customized)

The tration material of the HEPA Filter with Separator adopts high density paper of super fine glass fiber, which is folded and then separated with aluminum foil which is pleated with a special machine. Particular concrete interface agent is used to seal four sides, ensuring airtight all round of the filter.
Filtration efficiency is very high, up to 99.99%(µm0.3, H13),99.995%(µm0.3, H14). Before leaving factory, performance test has been done to all filters respectively.


2. Hepa filter with clapboard advantage

Jielvfilter air Filters use high quality filter element to trap the airborne dust and dirt, including particles as small as a grain of sand and provide longer lasting engine protection.
1. High Quality Control air filter
2. Rapidly delivery
3. Sufficient capacity supply of air filter
4. Customer's Designs and Logos on air filter boxes are welcome
5. Favorable price of air filter
6. Vireaty of Designs are allowed
7. Small Order of air filter are Acceptable
8. air filter OEM Accepted


1. Air condition system
2. Ventilate system
3. Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4. Avoid tar coom and dust from high-temperature dryer
5. Clean room, cleaning equipments
6. FFU
7. Pharmaceutical factory,hospital, electronic factory food factory
8. Car production line development
9. Ultra-clean high-temperature oven
10. Car spray paint baking temperature applications.
11. Chemical, food factory etc industries


1. The pleated filter surface and septum must be in a vertical direction.
2. Please read and strictly follow the "Installer" before installation and use.


3. Standard Model Technology Parameter

Model Dimensions Media Area (m2) Rated Air Flow (m3/h) Initial Pressure Drop (Pa)
W×H×D (mm) Standard High Capacity Standard High Capacity F8 E10 H13 H14
HTH230 230×230×110 0.8 1.4 110 180 ≤85 ≤175 ≤235 ≤250
HTH320 320×320×220 4.1 6.1 350 525
HTH484/10 484×484×220 9.6 14.4 1000 1500
HTH484/15 726×484×220 14.6 21.9 1500 2250
HTH484/20 968×484×220 19.5 29.2 2000 3000
HTH630/05 315×630×220 8.1 12.1 750 1200
HTH630/10 630×630×220 16.5 24.7 1500 2250
HTH630/15 945×630×220 24.9 37.3 2200 3300
HTH630/20 1260×630×220 33.4 50.1 3000 4500
HTH610/03 305×305×150 2.4 3.6 250 375
HTH610/05 305×610×150 5.0 7.5 500 750
HTH610/10 610×610×150 10.2 15.3 1000 1500
HTH610/15 915×610×150 15.4 23.1 1500 2250
HTH610/20 1220×610×150 20.6 30.9 2000 3000
HTH610/05X 305×610×292 10.1 15.1 1000 1500
HTH610/10X 610×610×292 20.9 31.3 2000 3000
