ISO 5 Dust Free Clean Room Laminar Air Flow Bench Horizontal Laminar Flow Cabinet

Product Details

Place of Origin: China

Brand Name: YANING

Certification: CE ISO

Model Number: YN-SPT-01

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD+700~1000+1PCS

Packaging Details: Standard Export Packing

Delivery Time: 5-8 work days

Payment Terms: T/T

Supply Ability: 1+PCS+7Day

Get Best Price
Product Details
High Light:

2300m3/h Laminar Air Flow Bench

,

OEM Horizontal Laminar Clean Bench

,

ISO 5 Horizontal Laminar Flow Cabinet

Type:
Horizontal Laminar Flow Cabinet
Work Zone (mm):
1160x600x600mm
Rating Airflow(m3/h):
2300m3/h
Class:
100
External Size (mm):
1200x850x1500mm
Purification Rank:
ISO5
Filtration Efficiency:
More Than H13-H14
Average Wind Speed:
0.3-0.6m/s
Type:
Horizontal Laminar Flow Cabinet
Work Zone (mm):
1160x600x600mm
Rating Airflow(m3/h):
2300m3/h
Class:
100
External Size (mm):
1200x850x1500mm
Purification Rank:
ISO5
Filtration Efficiency:
More Than H13-H14
Average Wind Speed:
0.3-0.6m/s
Product Description

ISO 5 Dust Free Clean Room Laminar Flow Air Flow Bench Horizontal Laminar Flow Cabinet

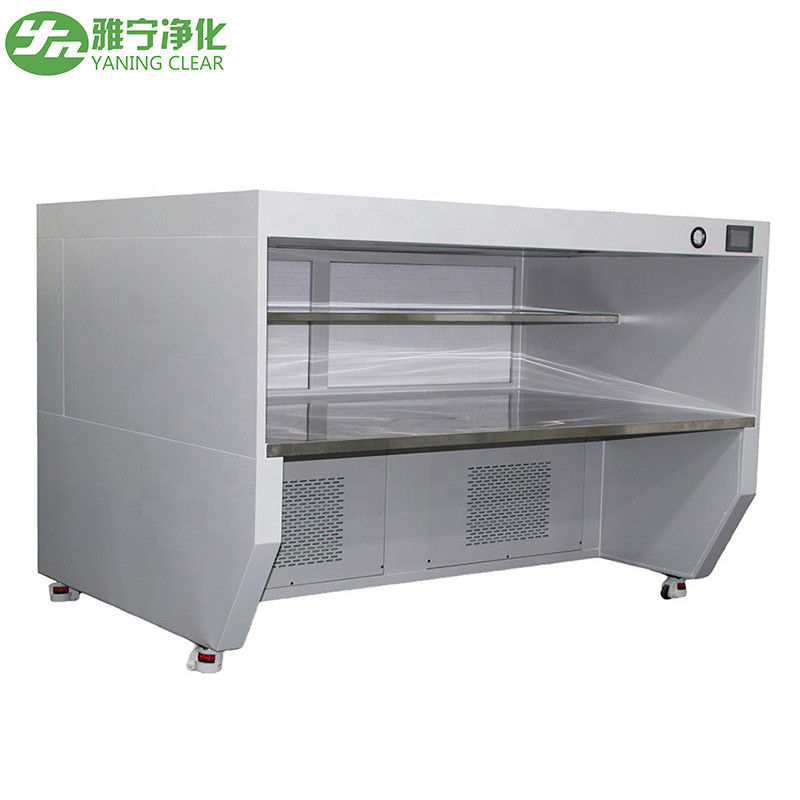

ISO 5 Dust Free Clean Room Laminar Air Flow Bench Horizontal Laminar Flow Cabinet 0









Product Description

Horizontal clean bench is a working table with the function of air purifying. It is mainly applied to manufacturing areas of
precise products which require a specific clean environment. It suck in air through fan,pass through static pressure box and then
pass through HEPA filter. The purified air can reach ISO 5 clean class to meet the environment requirement for production.

Configuration Option

Material: Powder coated steel, Polish SUS 201 /304/316; Mirror SUS 201/304/316

Supply Power: AC 1/3N 220, 380V/50, 60Hz
Cover: no cover, manual lifting cover













ISO 5 Dust Free Clean Room Laminar Air Flow Bench Horizontal Laminar Flow Cabinet 1



All sizes and styles can be customized
Item
Clean Bench for One Person
Small Clean Bench for Two Person
Big Clean Bench for Two Person
Model
YN-SPT-01 YN-SPT-02
YN-SPT-03
External Size (WxLxHmm)
1000x850x1500
1200x850x1500
1500x850x1500
Internal Size (WxLxHmm)
960x600x600
1160x600x600
1460x600x600
Purification rank
(ISO14644-1 standard)
100
100
100
Airflow (m³/h)
600 ~ 950
750 ~ 1100
950 ~ 1400
Wind Velocity (m/s)
0.30 ~ 0.50
0.30 ~ 0.50
0.30 ~ 0.50
Filtration efficiency
(%@0.3μm)
99.99
99.99
99.99
Illumination (≥1ux)
300
300
300
Power (W)
220
220
240
Noise dB (equipment edge)
≤65
≤65
≤65
Power supply (V/Hz)
220/50
220/50
220/50
LED standard (W×PC)
20×1
20×1
40×1
Material
The cabinet is cold rolled steel or stainless steel the table-board is sand light stainless steel



The air flow type of clean bench

There are mainly two types, Vertical laminar flow and horizontal laminar flow



The introduction of clean bench

Clean bench is a kind of air purification equipment that provide local working area a clean and sterilized environment.

The clean bench stucks in the air by the fan, the air pass into the pre-filter then the HEPA filter via static pressure, and finally output the highly filtered air.

The filtered air could be vertically or horizontally supplied, making the operation area to achieve a ISO5 cleanliness, ensure the production and the operator's safety and non-polluted.



Customized product display

OEM, OEM Production services.

Independent R&D team, one-stop solution for cleanroom projects.



Application
It is widely used in bio pharmaceutical, food processing, medical experiment, optical display, electronic semiconductor, aseptic microorganism test, plant tissue culture inoculation and other scientific research and production departments that need local clean aseptic working environment.



Success case show

ISO 5 Dust Free Clean Room Laminar Air Flow Bench Horizontal Laminar Flow Cabinet 2ISO 5 Dust Free Clean Room Laminar Air Flow Bench Horizontal Laminar Flow Cabinet 3
