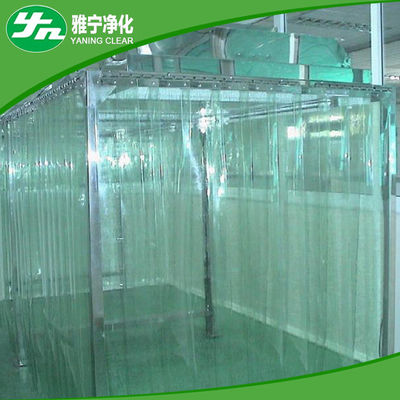

Softwall / Hard Wall Clean Room Booth Easy Assembly With 100-100000 Level Cleanline

  • Softwall / Hard Wall Clean Room Booth Easy Assembly With 100-100000 Level Cleanline
  • Softwall / Hard Wall Clean Room Booth Easy Assembly With 100-100000 Level Cleanline
  • Softwall / Hard Wall Clean Room Booth Easy Assembly With 100-100000 Level Cleanline
  • Softwall / Hard Wall Clean Room Booth Easy Assembly With 100-100000 Level Cleanline
Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-2100
Minimum Order Quantity 1PCS
Price 2000-4500USD/pcs
Packaging Details Wooden case or as you requset
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 1000pcs/month
Product Details
Product Name Clean Booth Wall Hardwall Or Softwall
Size 2100×3100×2590mm Or Custom Cleanline 100-100000 Level
Material Of Wall Anti-static Curtain Or Acrylic Plate Or Tempered Glass Hanger Aluminum Or Stainless Steel Square Tube, Iron Square Tube Spray
MOQ 1PCS
High Light

dispensing booth

,

laminar flow booth
Leave a Message
Product Description

Custom clean booth clean module with softwall or hardwall for clean room



1. clean booth description

Softwall Cleanroom (Simplified Clean Room) is a local air purification equipment to provide high- clean environment, is a clean room which the most quickly and easily create. Clean shed main consist of cabinet, fan, prefilter and HEPA filter, damping layer, lamps and other components. It can be suspended, but also can be ground support, compact structure, easy to use. Can use single or multiple connections to compose of banded clean area.

Clean shed interior cleanliness can be reached100-100000class level, in order to reduce structural costs of clean shed, YANING changed the traditional concept of clean shed design, take a modular integrated design concept , this structure has a variety of separate clean area, for some areas of general clean class level clean room that required high clean class level do local creation to reduce costs, thus making the workers and equipment, products effectively isolated, can minimize the pollution, thereby increasing the rate of qualified products.



2.clean booth structure

1). Frame: The industrial aluminum (or stainless steel square tube, Iron square tube

spray) as a frame is stable, beautiful, does not rust, does not produce dust

2). Anti-static curtain: anti-static curtain (or acrylic plate) around the four, anti-static effect, high transparency, clear grid, good flexibility, no deformation, not easy to aging

3). Fan filter unit FFU: With PCI centrifugal fan, it has long life, low noise, maintenance-free, low vibration, variable speed and other characteristics, reliable fan quality, long working life, plus unique air duct design , greatly improve the efficiency of the fan, reduce the noise! Internal purification level up to 100-100K level; especially suitable for areas in the workshop where the level of local purification requirements, such as assembly line operation area.

4). The internal use the purification room dedicated purification lamp, does not produce dust.



3. Clean Room Standard Model Technology Parameter

Model YN-CS-23B YN-CS-34A YN-CS-68C

(W×L×H)mm

External Dimension

 2100×3100×2590 3100×4100×2590 6100×8100×2590

(W×L×H)mm

Internal Work Zone

 2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas











































Customized design is welcome.



Diversified wall material.
