High Performance Cleanroom Air Shower Tunnel With Automatic Sliding Door

Product Details

Place of Origin: China Guangdong

Brand Name: YN

Certification: CE/ISO

Model Number: YN-AST

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Reconsideration

Packaging Details: wooden case or as you requset

Delivery Time: 5-15 work days

Payment Terms: Western Union, T/T, L/C

Supply Ability: 1000pcs/month

Get Best Price
Product Details
High Light:

air jet shower

,

stainless steel air shower

Material:
Full Stainless Steel
Size:
Custom
Noise:
<62dB
Efficiency:
99.99%@0.3
Blowing Side:
On Three Sides By Blowing
Air Velocity:
22-27m/s
Door:
Double Opening Slip Door
Material:
Full Stainless Steel
Size:
Custom
Noise:
<62dB
Efficiency:
99.99%@0.3
Blowing Side:
On Three Sides By Blowing
Air Velocity:
22-27m/s
Door:
Double Opening Slip Door
Product Description

Stainless steel air shower tunnel with Automatic sliding door



1. Air shower tunnel description

The air shower tunne is an auxiliary equipment for clean workshops and supporting clean rooms. It is used to blow dust on the surfaces of human bodies and carrying objects that enter clean areas.

At the same time, the air lock acts to prevent unpurified air from entering the clean area. It is an effective device for human body, material purification, and prevention of outdoor air pollution in the clean area. It is versatile and can be used with all cleanrooms and cleanrooms. The air shower channel is suitable for large-scale purification companies.



2. Air shower tunnel features:

1). Use circular arc angles that are more suitable for clean room principles

2).The system automatically controls the operation, two-door electronic interlocking, and has a photoelectric sensor, one-way channel air shower, enter from the non-clean area, after the door closes the infrared sensor, someone blows on the shower, blows the shower and locks, only Can go out from the air shower room;

3). The overall cold-rolled steel production, external surface electrostatic spray treatment

4) .Doors, floor, nozzles are made of stainless steel, beautiful

5).Soft key touch type time relay, LED display and set the blowing time, the range is adjustable in 10-99s, double door automatic locking when blowing;

6). Using the initial, high-efficiency two-stage filtration system, a partition of high efficiency filter, filtration efficiency: 99.99%, to ensure the purification level

7). The wind mouth outlet speed of up to 25m / s, blowing to the human body wind speed 18m / s or more

8).Using EVA sealing material, high sealing performance

9). Using imported electronic components, reliable performance

10). With all stainless steel multi-angle adjustable nozzle, Nantai double vortex shell external rotor high wind volume low noise fan, surface wind speed greater than 25m / s;

11). Advanced noise reduction mute device system.

12).Using a modular design program, the assembly and transportation is very convenient

13). microcontroller microcontroller controller, intelligent voice prompt system, people in the shower when the control system automatically sends out voice prompts to complete the entire sequence of blown shower dust.

14). LED display can clearly indicate the blowing time, and the state. Blowing time can be adjusted in the range of 10-99S.

15). Infrared photoelectric automatic sensor switch controls the air shower to avoid unmanned air blowing.



3. Air shower tunnel Parameter

    Quantity and specification unit remarks

Cabient

SUS304 stainless steel
Nozzles 48-96 pcs
Outlet air speed 20 m
Working time 099 S

Adjustable



Rated Voltage 380 V 3 phase 4 wire
Power 2.25-10 KW KW 50Hz
Hygienic standard High efficiency
Noise 65 DB
External dimension W*H 1700*2300 Mm
Net size W*H 800*1900 Mm
Channel type Seal type Tunnel type
Remarks

Please inform us before the contract comes into effect.

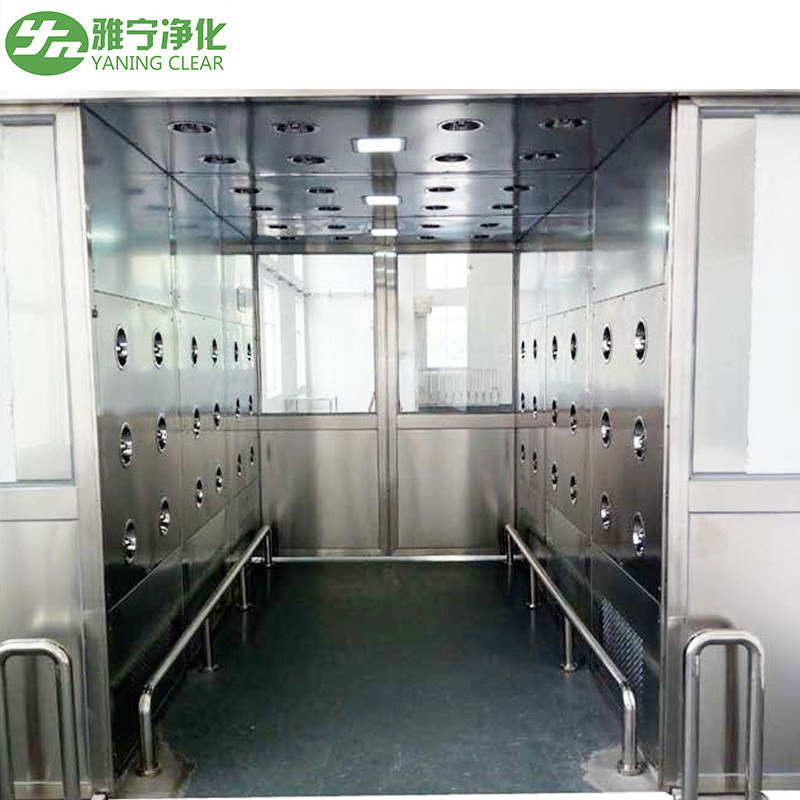

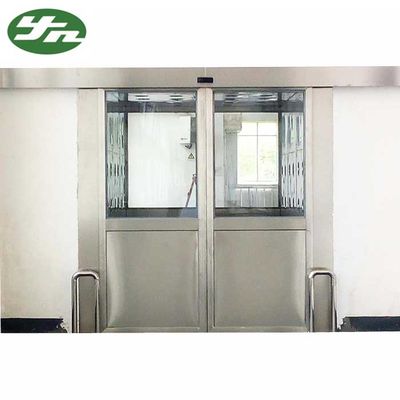

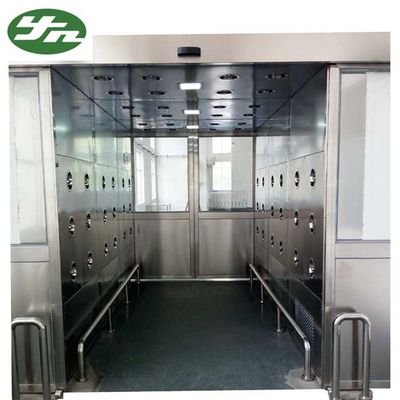

4.Air shower details photos

High Performance Cleanroom Air Shower Tunnel With Automatic Sliding Door 0
