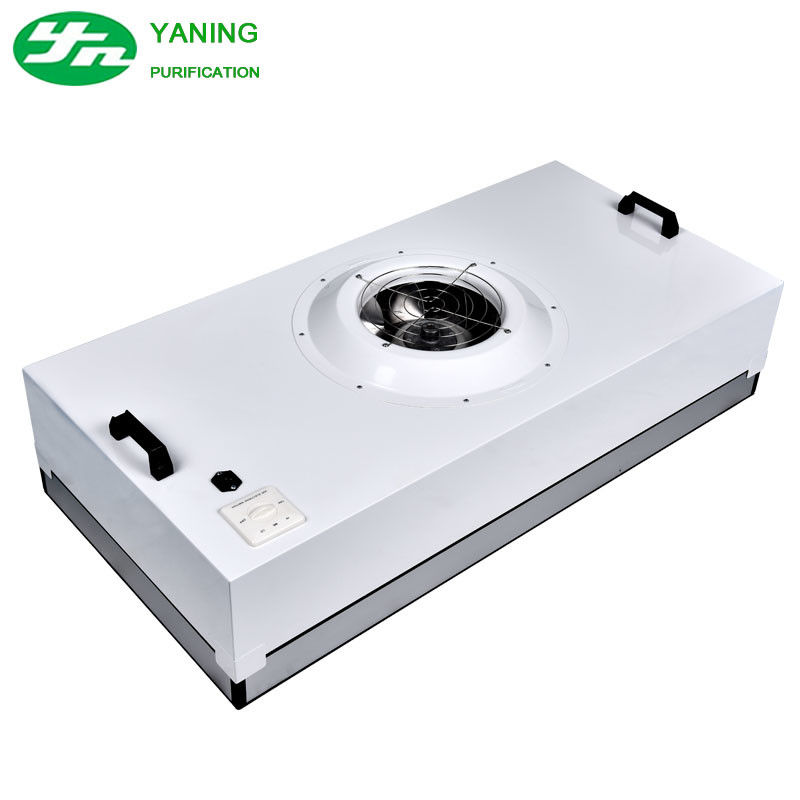

AC 220 V 50 Hz FFU Fan Filter Unit Class 100 Purification Grade , 0.35-0.65 M/S Air Velocity

Place of Origin China
Brand Name Yaning
Certification CE& ISO
Model Number 1175*575*230
Minimum Order Quantity 1
Price discussion
Packaging Details Standard Export Packaging
Payment Terms T/T, Western Union
Product Details
Material Stainless Steel ,powder Coat Steel Power 170w
Power Supply AC 220 V /50 Hz Purification Grade Class 100
Air Velocity 0.35-0.65 M/s Air Flow 500-1500 M3/h
Warranty 12 Months
High Light

ffu filter fan unit

,

hepa fan filter unit

Leave a Message
Product Description

AC 220 V 50 Hz FFU Fan Filter Unit Class 100 Purification Grade , 0.35-0.65 M/S Air Velocity

       Description
Fan Filter Unit (FFU) is a self-contained ceiling unit for use in turbulent mixing and laminar flow cleanroom applications. The unit is designed with total flexibility for use with the ceiling grids. It canalso be used in many other applications, such as clean booths, clean workbenches, and Clean Room tunnels. When the filter is equipped with a knife-edge inter-face, the unit can also be utilized in the liquid-sealed ceiling grid. It can be easily upgraded and integrated into any ceiling configuration in accordance withdesign specification to achieve cleanroom Class 100 (ISO Class 5), Class 10 (ISO Class 4) and Class 1 (ISO Class 3)​​

  • Features:
  • ※ Power cord for easy plug-in connection
  • ※ Stepless controller or 3 steps controller
  • ※ Pre filter and HEPA filter are included
  • ※ Cabinet: Aluminum/ Galvanized/ SUS304/ SUS201
  • ※ Low noise operation
  • ※ Energy efficiency design
  • Application:
  • ※ Cleanroom
  • ※ Clean booth
  • ※ Production room
  • ※ The fan filter unit has multiple uses in semiconductor, LCD manufacturing, and other industries requiring a clean room, particularly Class10 - Class100000
  • Specification:
ModelYN-FFU-575YN-FFU-1175YN-FFU-1225YN-FFU-1175×2
Cabinet Size575×875×230575×1175×230615×1225×2301175×1175×230
Cabinet MaterialEpoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel
Air Flow(m3/h)800110012002000
Noise(dB)56565858
Air Velocity0.3~0.5m/s0.3~0.5m/s0.3~0.5m/s0.3~0.5m/s
HEPA FilterSize570×870×69570×1170×69610×1220×691170×1170×230
Efficiency99.995%0.3µm99.995%0.3µm99.995%0.3µm99.995%0.3µm
FrameAluminum
Initial pressure loss220pa/0.45m/s220pa/0.45m/s220pa/0.45m/s220pa/0.45m/s
FanPower Supply220V/50hz220V/50hz220V/50hz220V/50hz
TypeAluminum turbofan
Vibration0.2~0.5mm/s0.2~0.5mm/s0.2~0.5mm/s0.2~0.5mm/s
Total Power170W170W210W275W
Weight24kg28kg31kg

47kg



AC 220 V 50 Hz FFU Fan Filter Unit Class 100 Purification Grade , 0.35-0.65 M/S Air Velocity 0
AC 220 V 50 Hz FFU Fan Filter Unit Class 100 Purification Grade , 0.35-0.65 M/S Air Velocity 1
