High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional

High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional
High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional

Large Image :  High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional

Product Details:
Place of Origin: China Guangdong
Brand Name: YN
Certification: CE/ISO
Model Number: YN-1300-PQ1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Reconsideration
Packaging Details: wooden case or as you requset
Delivery Time: 5-15 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000pcs/month

High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional

Description
Product Name: Stainless Steel Air Shower Size:: 1300×1500×2100mm
Noise:: <62dB Dust Collection Efficiency: Over 99.99% 0.3μm DOP TEST
Interlock:: Mechanical Interlock Or Electronic Interlock Warranty:: 12 Months
Place Of Origin:: Guangdong, China (Mainland) Material:: Full 304 Stainless Steel
High Light:

air jet shower

,

stainless steel air shower

Full 304 stainless steel induction air shower for cleanroom pass through



1.Srainless steel air shower description



In order to reduce the large amount of dust particles brought in by personnel, the clean air filtered by the high-efficiency filter is sprayed onto the human body from all directions by a rotatable nozzle, and the dust particles are effectively and quickly removed. The HEPA filter is filtered and recirculated to the air shower area.

The air shower can be roughly divided into the following types: single person single side blow  air shower, single person double blows air shower, single person three blows air shower, double persons double sides blow air shower, three persons double blows air shower, air shower tunnel, stainless steel air shower room, intelligent voice air shower, automatic sensor door air shower, L-shaped air shower, uninterrupted air shower, roller shutter soor air shower , cargo air shower, explosion-proof air shower, anti-static air shower , water showers and so on.



2. Stainless steel air shower configuration



1) Fan----Air-conditioning special high-pressure centrifugal fan, model: DSX-200, full pressure: 1000Pa, rotation speed: 2800r/1400r/
Min, power: 600W, working voltage: 380V/50Hz;
2) Wind speed --- 25M/S

3) Nozzle - made of stainless steel, 360 degree adjustable direction, embedded design
4) Filtration system---The primary filter and hepa filter double filtration system is adopted. Since the primary filter is made of non-woven fabric, it can be cleaned and disassembled, so the life of the filter is greatly extended and the cost is saved.
5) Filtration efficiency---99.99%, >0.3Um

6) Control system---automatic control (can also be manually controlled) with power indicator and work indicator
Memory sensor blowing, infrared photoelectric induction to the object after the start of the fan, the end of time, the air shower stop.
7) Air shower time---LED display blowing time (0-99 seconds adjustable), generally set to 20-30 seconds
8) Lighting --- built-in barrel light or suction type 2 explosion light, power: 25W
9) Illumination---300LXS

10) Optional other features

a, Electronic Interconnect Locking—The electronic interlocking door is installed in the door and out door, and only one door can be opened when the power is on. The two doors cannot be opened at the same time to ensure the sanitation of the clean area.

b,Door closers --- door closers can be installed in the door, you can achieve automatic closing within 90 degrees, you can also automatically stop 90 degrees, cleaning more convenient.

c,Ozone sterilizer --- built-in, ozone production: 100MG / H, disinfection of air shower room interior.

d,Automatic door sensor --- The installation of 90-degree automatic door sensor on the basis of the original door can realize the need to open the door without manual door opening and control by non-touching hand-sensing controller or microwave probe or cipher.



3. Cleanroom air lock room unit parameter



Model YN-1300-P1 YN-1300-PQ1 YN-1300-P2 YN-1300-P3

Outer Dimensions

W×D×H(mm)

1300×1000×2100 1300×1500×2100 1300×2000×2100 1300×3000×2100

Inner Dimensions

W1×D1×H1(mm)

800×930×1960 800×1430×1960 800×930×1960 800×930×1960
Speed (m/s) 25~27
Nozzle No. 12 18 24 36
Structure Cabin: Pre-painted cold work steel sheet.Stainless steel
Door: 5mm glass and built-in automatic door closer
Lighting LED, built-in type
Dust Collection Efficiency Over 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity 595×595×80×2pcs 595×595×80×2pcs 595×595×80×4pcs 595×595×80×4pcs
Showering Time 0-99s adjustable(FACTORY SETTING 10S)
Power Supply 380V 50Hz, 3Phase/220V 60Hz 1Phase

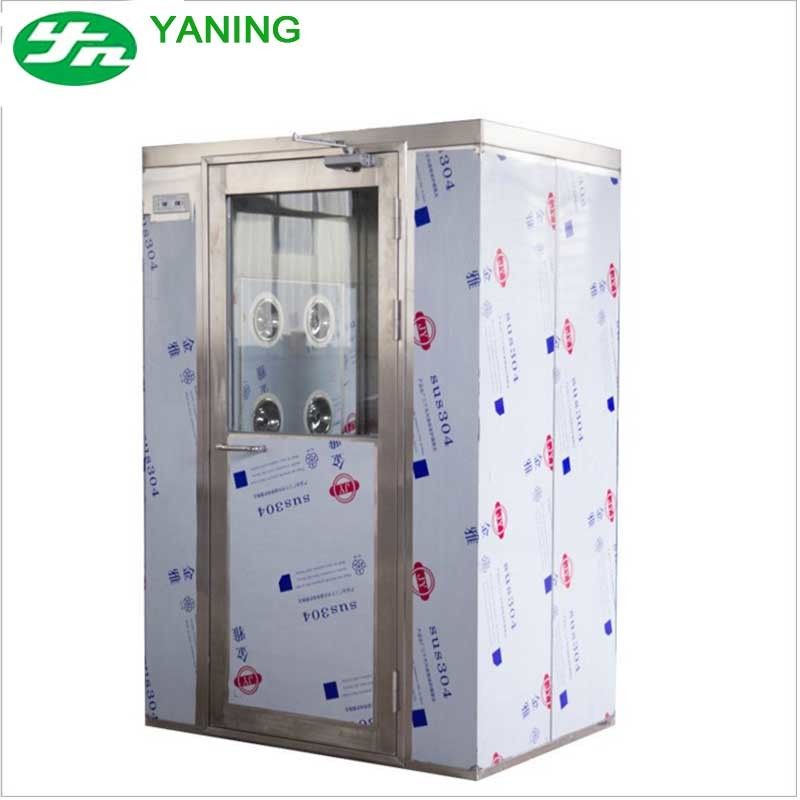

4.Stainless steel air shower photos

High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional 0High Standard Cleanroom Air Shower Photoelectric Sensor Automatic Function System Optional 1
