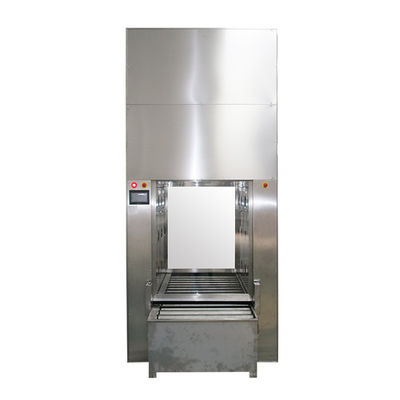

Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design

Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design
Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design
Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design

Large Image :  Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design

Product Details:
Place of Origin: China
Brand Name: Yaning
Certification: CE/ROHS/SGS/FDA
Model Number: YN-PB001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500USD-1000USD
Packaging Details: plywooden package
Delivery Time: 7-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100pcs/month

Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design

Description
Material: SS304 Valtage: 220V/50HZ,or 110V/60HZ
Fan: Aluminum Impeller Air Velocity: 0.45m/s
Power: 170w HEPA Grade: U15
Press: 0-500pa Size: Custom Made
Control Panel: Touchscreen
High Light:

dynamic pass box

,

air shower pass box



Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design



This dynamic pass box with DOP test port is used for drug research in Australia,it was made from high quality material---SS304,hepa has good efficiency, detailed parameter as bellow:



Enternal size 770*680*1200mm
Internal size 600*600*600mm
cover size 770*680*385mm(W*D*H)
material 304 stainless steel
name pass box
air velocity 0.35-0.4m/s
Power 220V/50HZ
open ways 9pcs right open(p: 1,3,5,6,8,12,10,14,16),7pcs left open(p:2.4.9.11.7.13.15) as buyer's shows in PDF
Others add new pipe,change programme,round handle,English control panel,50mm stop and socket,LED lights,as confirmed by emails+one extra free hepa outlet



Detailed drawing:

Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design 0

Product working process:



1, POWER:220V/50HZ, power ups 1-5s, Light becomes RED, touch display begins working status;



2, Door A:touch door swift on display, light becomes GREEN, power off, B door light turns RED;



3,Put goods inside box, door A closed, light turns RED, fan begins working, two lights turn RED. Clean time is finished, two lights turn GREEN.(open door B, light turns GREEN, door A light turns RED, on the contrary).





4, Door B open, when touch door swift, take out goods, if need fan goes on working at this time, press fan swift, on the contrary.



5, time set up: press 1-3s on time show area, then can set time from 0-99s, advice 30s, then save:



6,how to open stoppers?

A: Press down black ring, then can pull out white stoppers.



B:big stopper is a nut cover, rotate to unscrew:



Note: when Pascal reach 350-400, advice replacement of heap filter( liquid seal heap filter), in China, people replace one time each year or 1.5 yeas!



Customer's feedback :



Customer's using feedback:

Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design 1

Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design 2Air Shower Stainless Steel Pass Through Box , Dynamic Pass Box Robust Design 3
