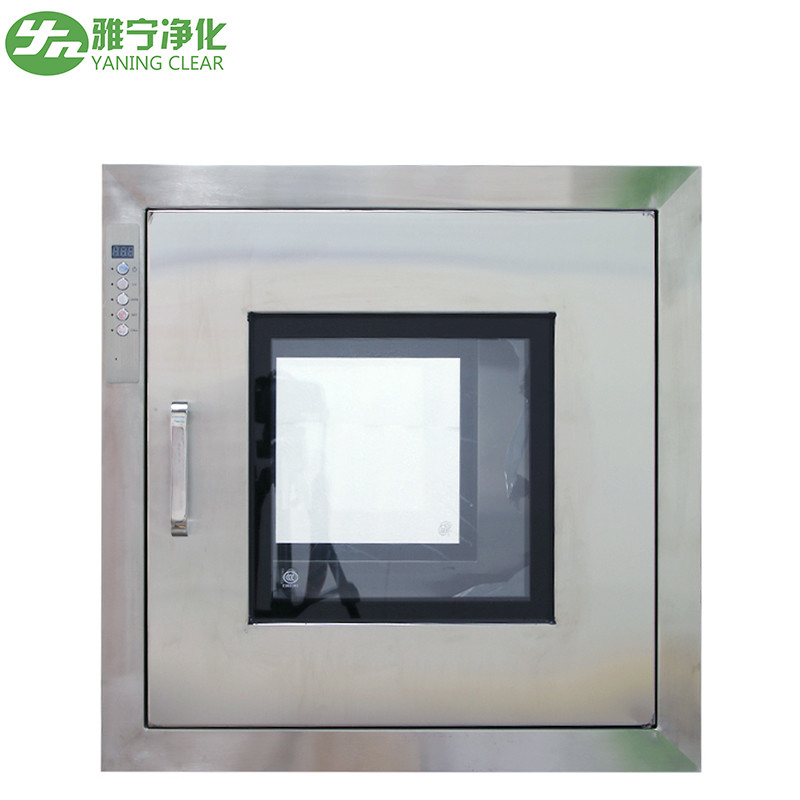

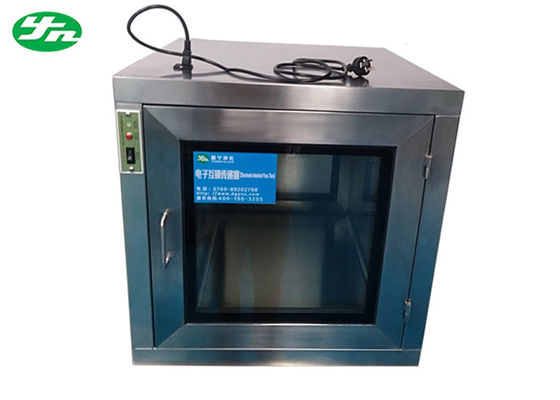

Electronic Interlock Hospital Pass Box Clean Room Equipment 660*500*600mm

Place of Origin Guangdong, China
Brand Name Yaning
Certification CE/ISO
Model Number YN-EL-PB
Minimum Order Quantity 1
Price reconsideration
Packaging Details wooden case for free
Delivery Time 5~30 work days based on quantity
Payment Terms L/C, T/T, Paypal, Western Union
Product Details
Name Electronic Interlock Pass Box Material Stainless Steel Or Cold Rolled Plate
Size 660*500*600mm OEM/ODM Service Accept
Thickness 1mm Accessories Ultraviolet Germicidal Lamp
High Light

dynamic pass box


pass through boxes for clean rooms

Leave a Message
Product Description

Factory direct OEM service electronic interlock clean room hospital pass box

Model YN-EL-500 YN-EL-600 YN-EL-800
External size 660*500*600mm 760*600*700mm 960*800*900mm
Internal size 500*500*500mm 600*600*600 800*800*800mm
Interlock Type Mechanical interlock or electronic interlock
Other Part High quality steel plate electrostatic caat or stainless steel304 /201
Material of pass box UV light(Yes or not)


Electronic interlock transfer window usage

1, transfer window is the material transfer channel between different level air cleanliness areas.

2. Usually, the door of the transmission window is closed. When the material is delivered, the transmitter first rings the doorbell and waits for the other to open a door. After the material is sent into the door, the door is immediately closed and the receiver opens another door. Remove the material and close the door. It is forbidden to open both doors at the same time.

3, After the transfer window is finished, it should be cleaned and regularly sterilized.
Electronic Interlock pass box management system
pass box

1. The delivery window is governed by the higher level of cleanliness associated with it.
Stainless steel transfer window

2. No material or debris can be placed in the transmission window.

3. The clean area operator is responsible for the management.
Use: The use of transmission window is: unilaterally open the door.
1. Since the transfer window is interlocked, If one door at one side cannot be opened successfully, it is because the door on the other side is not closed properly. Do not open it forcefully, otherwise the interlock device will be damaged.
2. When the object is transfering from a low level air cleanliness clean area to a high clean level one, Please clean the surface of the object.
3. When the interlock device of the transfer window cannot work properly, it should be repaired in time, otherwise it cannot be used.
4. Regularly check the working condition of the UV lamp and replace the UV lamp regularly.
5. No material or debris can be stored in the transmission window.
