dynamic pass box,
air shower pass box

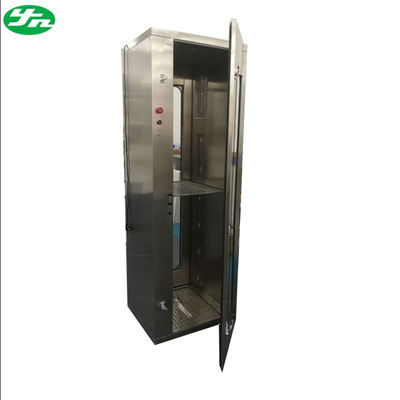

Custom Made SS304 Pass Through Box with 10 UV Lights for Size 740*650*2200mm(W*D*H)
This is a special pass thru box with 10 uv lamps which is made from ss304 according to customer's requirements, they are a medical company which is located in Mauritius, based on their requirements, we decided to make this drawing for customer's approval, and the customer also understands we can supply help for them after they understood our factory.
parameters as bellow for your review:
|Item name:pass box||OD:710*650*2200mm|
|UV lamps:8w*10pcs(top and down has one, 8 cornes has one,308mm L,15 d|
|buzzer: 1pcs it voices when pressing|
|Timer: 1pc,showing sterilization t time|
|Lock model:electronic interlock|
|removable net plate:1pc,top and down:1 pc, stable|
|timer and buzzer process:open entrance door-put into goods-start-
lock door-uv lamps on-timers(auto seting time)
-time ends-buzzer ring- exit door opening-take out goods
Drawing customer's confirmation:
1,10 uv lamps:corn has 8 pcs, top has one, down has one, each uv lamp can be protected well by a grid plate.
2,3 ss304 grip net plate, middle one can be movable, top one and down one are stable with screws
3,Sterilization time can be adjustable from 0 to 300 seconds, max time is 300s.
4,Buzzer is installed on exit door, when sterilization time is finished, it can remind people to take out goods inside box.
5,Warranty: we can supply 1 years warranty to our product.
Finished goods and package:
We do not supply good quality but also consider good package for you can receive good products .
