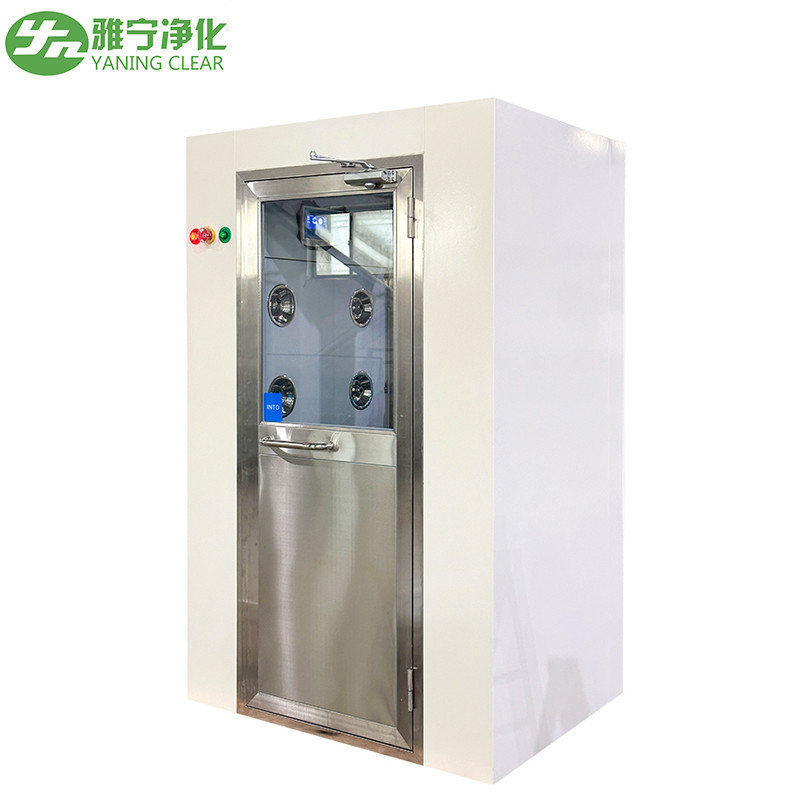

Powder Coating Air Shower System For Biological Manufacturing Industry

Place of Origin China Guangdong
Brand Name YN
Certification CE/ISO
Model Number YN-ASS
Minimum Order Quantity 1pcs
Price Reconsideration
Packaging Details wooden case or as you requset
Delivery Time 5-15 work days
Payment Terms Western Union, T/T, L/C
Supply Ability 1000pcs/month
Product Details
Product Name Air Shower Systems Size 1800*2300*1000mm Or Custom
Brand Name Yaning HEPA Filter H13, 99.99%@0.3um
Pre-filter G1, 40%@2.0um After-sales Servic Engineers Available To Service Machinery Overseas
Power 0.75KW
High Light

air showers for clean rooms


air jet shower

Leave a Message
Product Description

Powder coating air shower systems for biological manufacturing industry


Air shower systems application:


The air shower blows the clean air stream filtered by the primary filter and the hepa filter from the rotatable nozzle to the person's body in all directions, thereby effectively and quickly removing the dust particles. The cleaned dust particles are filtered by the primary filter and the hepa filter and recycled to the air shower area. In order to achieve the best effect of blowing, the wind speed of the squirting air outlet designed by the air shower can reach 25m/s, and the wind speed blowing to the human body is 18m/s. The factory's initial air shower time is set to 15s


Air showers provide a modular assembly method that can be assembled into air showers sizes of various lengths according to actual needs.



Air shower room
Dimension 1800(width)×2300(height)×1000 (one piece length)
Puring area dimension 800(width)×1900(height)
Puring efficiency ≥0.5umdust,≥99.99%(sodium flame)
Wind speed ≥27m/s
Time 0~99sec(adjustable)
Circulating wind volume 800~1000M3/h
voltage 380V-50Hz or 220V-50Hz
power 0.75Kw
Control panel Adjust the time of it
Infrared device Open or closed automatically


Air shower systems features:


1.Good effect of dust removal
The air shower equipment on the market is simple structured, double sides blow, easy to cause turbulence and eddy current, dust removal effect is not so good. Yaning's practical air shower, one-way air flow organization to keep the air velocity consistent, dust removal effect is very good.


2.Return air from bottom, conform to the laws of physics
The way of return air from bottom, dust directly falling as per their own natural gravity. Top of the high-speed wind blowing likes the piston movement, can take the dust away quickly by the bottom elevated floor.

3.High performance fan
Single air shower with 16nos nozzles, built-in high performance fan with wind speed 25m/s or more, resulting in high-speed airflow, forming a vertical one-way bottom return air circulation system.


4.Customize Support
As per the layout of your clean room and your requirements, we can customize the specifications and shape of the air shower.

5.The high-speed wind comes from the top blowing like piston movement, can take the dust away quickly by the bottom elevated floor. Basically eliminate the whirlpool and dust raise, can maximum guarantee the blowing dust effect.




Yaning air shower field installation measurement photo

Powder Coating Air Shower System For Biological Manufacturing Industry 0Powder Coating Air Shower System For Biological Manufacturing Industry 1
