Powder Coating Laminar Air Flow Unit , Laminar Flow Biological Safety Cabinet
Product Name | Horizontal Laminar Flow Cabinet | Material | Powder Coating |
---|---|---|---|
Size | 1500(W)*850(D)*1500(H)mm Or Custom | Cleanliness | Class 100@0.3um(USA Fed Standard 209E) |
Rate Air Flow | 1500m³/h | Filter Efficiency | 99.99% @0.3um H13-H14 |
Power | 210W | ||
High Light | laminar flow biological safety cabinet,laminar air flow cabinet |
Powder coating horizontal flow laminar flow cabinet for fungi inoculation
1. Laminar flow cabinet description:
The clean bench is an air purification device that provides a local dust-free and sterile working environment, and can artificially control the air that has been contaminated in the work area through a special filter channel to avoid harm to people and the environment. It is a kind of safe microbiology special clean bench, which can also be widely used in biological laboratories, health care, biopharmaceuticals and other related industries. It has improved the process conditions, protects the operator's health, and improves product quality and product yield. good effect.
2. Laminar flow cabinet features:
1).Provides an operating environment with a cleanliness class of 100. For dust particles with a particle size ≥ 0.5 μm ≤ 3.5 particles/liter
2).Horizontal laminar flow type or vertical laminar flow type
3).Ultra-thin separator-free high-efficiency air filter occupies small space
4).With the touch-type electronic control panel, the air flow of the fan can be adjusted steplessly to ensure that the wind speed in the work area is always in an ideal state.
5). Stainless steel worktop, plexiglass enclosure, can be equipped with UV remote control electrical interface
3.Laminar flow cabinet application:
1).It is widely used in medical and health, pharmaceuticals, biochemical experiments, electronics, precision instruments, instrumentation and other industries, and provides a localized clean bench for aseptic clean environment.
2). Mainly used in the high cleanliness operating environment of electronics, biology, medicine, precision instruments and other industries. It is a kind of general-purpose local air purification equipment.
3). Maximum dust concentration: 3500 particles/L (dust particle size not less than 0.5µm, class 1300).
4.Laminar flow cabinet parameter
Product Name | Single horizontal clean bench | Double horizontal clean bench | Double vertical clean bench |
Model | YN-VC-001 | YN-VC-002 | YN-VC-003 |
(W×D×H)mm External Dimension |
1000*700*1800 | 1200*700*1800 | 1500*700*1800 |
(W×D×H)mm Internal Work Zone |
900*650*600 | 1100*650*600 | 1400*650*600 |
Clean Class Level | 100Class 0.3µm(USA Federal Standard) | ||
Rated Air Flow | 1200m3/h | 1800m3/h | 2300m3/h |
Air Velocity | 0.3-0.6m/s | 0.3-0.6m/s | 0.3-0.6m/s |
HEPA Efficiency | 99.99% 0.3µm H13-H14 | ||
LUX | ≥300lux | ≥300lux | ≥300lux |
Power | 124W | 127W | 200W |
Noise | ≤65dB | ≤65dB | ≤65dB |
Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
LED light | 9W*1 | 13W*1 | 18W*1 |
Material | Cabinet: epoxy powder coated steel or stainless steel, table-board: stainless steel |
Customized design is welcome.

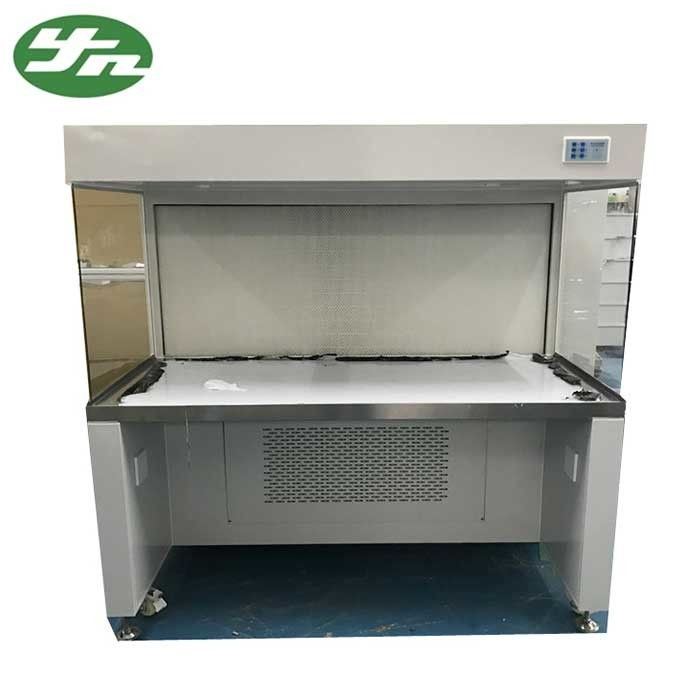

5.Laminar flow cabinet photos
With wheels can be moved expedinetly
