Product Details
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-LFH1000
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Reconsideration
Packaging Details: Wooden case or as you requset
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000pcs/month
Product Name:: |
Laminar Flow Hood |
Material: |
Stainless Steel |
Size:: |
1000(W)*850(D)*1500(H)mm Or Custom |
Work Area Size:: |
970*600*600mm |
Rate Air Flow: |
1000m³/h |
Lamp Specification And Quantity:: |
20w*1pcs |
Noise: |
≤65dB |
Power Supply: |
220V/50HZ |
Product Name:: |
Laminar Flow Hood |
Material: |
Stainless Steel |
Size:: |
1000(W)*850(D)*1500(H)mm Or Custom |
Work Area Size:: |
970*600*600mm |
Rate Air Flow: |
1000m³/h |
Lamp Specification And Quantity:: |
20w*1pcs |
Noise: |
≤65dB |
Power Supply: |
220V/50HZ |

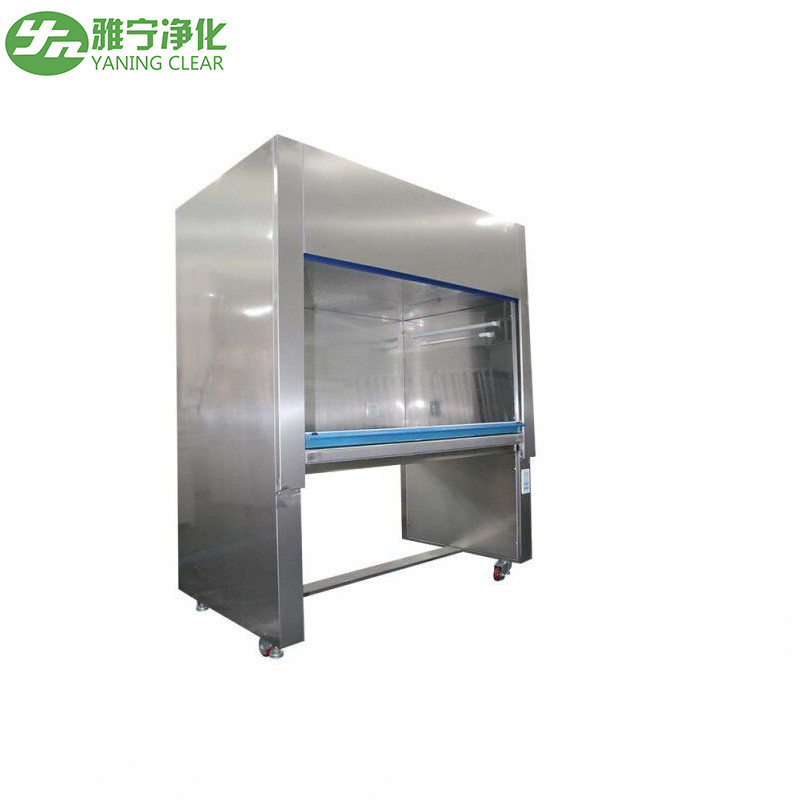

The horizontal laminar flow single-person clean bench is a local purification unit used for sterile clean environment in medical and health, bio-engineering, and scientific experiments.
The air passes through the primary air filter and the low-noise centrifugal fan into the static pressure box, and is evenly blown out through the Hepa filter at the front side to form a high-level horizontal air curtain, and the original air in work area is removed. Natural air, the ideal high cleanliness space is achieved within five minutes after starting up. Adjustable air volume is adjusted by two-speed adjustable fan, and the touch-type switch adjusts the voltage to ensure that the wind speed in the work area is always in an ideal state.
1). It is widely used in medical and health, pharmaceuticals, biochemical experiments, electronics, precision instruments, instrumentation and other industries, and provides a localized clean bench for aseptic clean environment.
2). Mainly used in the high cleanliness operating environment of electronics, biology, medicine, precision instruments and other industries. It is a kind of general-purpose local air purification equipment.
3). Maximum dust concentration: 3500 particles/L (dust particle size not less than 0.5µm, class 1300).
Model | working mode | wind speed | illumination |
noise |
voltage | power(KW) | workshop size(mm) (H*W*D) | overall size(mm) (H*W*D) | net weight(kg) |
YN | desktop | 0.25-0.45 m/s | ≥300(LX) | ≤62 dB | 110V/220V | 0.15 | 410*700*610 | 580*700*610 | 40 |
YNP-1 | single person horizontal | 0.3 | 500*700*550 | 1610*860*580 | 80 | ||||
YNP-2 | double person horizontal | 0.5 | 500*1250*550 | 1610*1250*580 | 120 | ||||
YNZ-1 |
single person vertical |
0.3 | 500*700*430 | 1610*860*580 | 80 | ||||
YNZ-2 |
double person vertical |
0.5 | 500*1250*550 | 1610*1250*580 | 120 |
Customized design is welcome.
4.Laminar air flow cabinet production photos
Our Services
Reliability depends on the longevity of the product. All our products come with a 5 year warranty. You can count on our expertise to deliver quality and on our commitment to provide you with innovative solutions for your application. Our teams are renowned in the industry for their dedication. You can rely on us to support you if unexpected problems occur.
Responsiveness
You have specific needs, expectations and priorities – we respond to these needs and define with you the best possible solutions for your business.
Service partner
Our goal is to be a business partner that delivers customized service solutions that improve your operations. Our measure of success is the loyalty of our customers year after year, decade after decade.
We will be honered that you can visit our Factory .Our factory is located in Humen town,Dongguan city,Guangdong province,China.Please call me soon.
