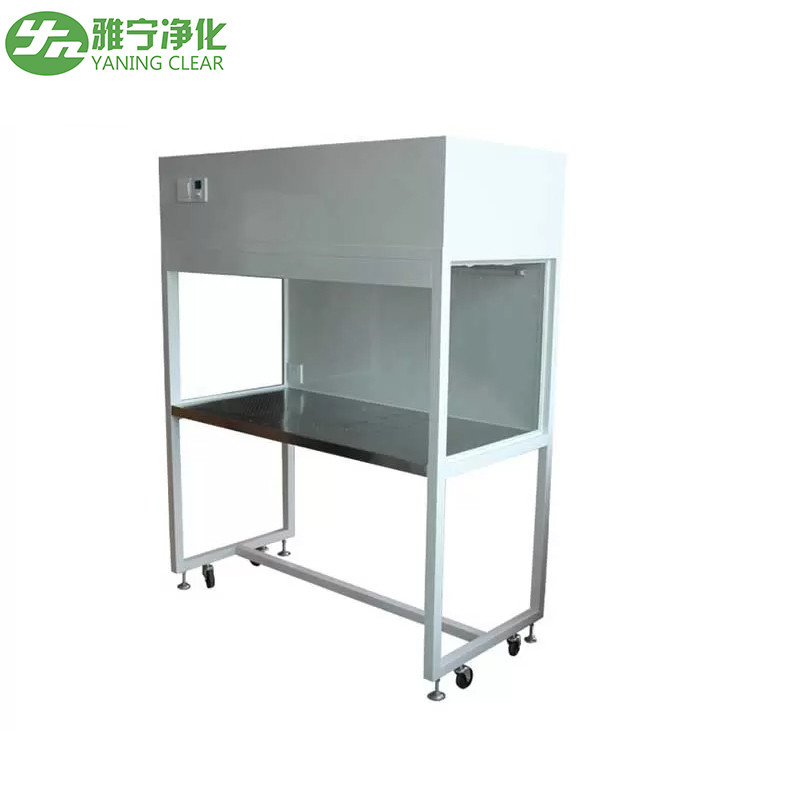

Vertical Flow Laminar Clean Bench For Scientific Research Laboratory

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-CB1440

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: Reconsideration

Packaging Details: Wooden case or as your requset

Delivery Time: 7-15 work days

Payment Terms: T/T, Western Union, , L/C, D/A

Supply Ability: 2000pcs/month

Get Best Price
Product Details
High Light:

laminar flow clean benches

,

laminar air flow cabinet

Product Name::
Clean Workbench
Brand Name::
YaNing
Size::
1040(W)*600(D)*1730(H)mm Or Custom
Flow Type::
Vertical-flow
Internal Size (W*D*H):
940*580*540mm
Work Surface Height:
730mm
Delivery Time::
25 Days After Your Payment
Packaging:
Wooden Case Or As Your Requirement
Product Name::
Clean Workbench
Brand Name::
YaNing
Size::
1040(W)*600(D)*1730(H)mm Or Custom
Flow Type::
Vertical-flow
Internal Size (W*D*H):
940*580*540mm
Work Surface Height:
730mm
Delivery Time::
25 Days After Your Payment
Packaging:
Wooden Case Or As Your Requirement
Product Description



Cost-effective vertical laminar air flow clean workbench for clean area





1. clean workbench description:



Product Information:

The clean workbench consists of chassis, HEPA filter, variable air supply fan filter unit, medium-efficiency filter, worktable surface, and anti-static ion gun. The chassis is made of sheet steel and painted on the surface. Work area countertops are all stainless steel and the table tops are removable for easy cleaning.
The workbench adopts a direct control method, which includes a fan switch, a light switch, an anti-static ion switch, and a direct control device.



Performance Features:

1) Provide an operating environment with a cleanliness class of 100, with dust ≤ 3.5 μm and ≤ 3.5 particles/liter
2) Horizontal laminar flow type or vertical laminar flow type
3) Ultra-thin high-performance air filter without partitions, taking up less space
4 With touch-type electronic control panel, fan air flow can be adjusted steplessly to ensure that the wind speed in the work area is always in an ideal state.
5) stainless steel worktable, plexiglass enclosure, can be equipped with UV remote control electrical interface



2.Clean workbench parameter



Model YN-V680 YN-V800 YN-DDC YN-SDC YN-SDC2100
External Size (W*D*H), mm 680*410*1160 802*615*1575 1040*600*1730 1440*600*1730 2100*740*2550
Internal Size (W*D*H), mm 630*375*615 800*600*540 940*580*540 1340*580*540 2000*705*1100
Work Surface Height No 660mm 730mm 730mm 730mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window No Manual, 5mm toughened glass, anti-UV Motorized, 8mm PMMA
Max Opening No 490mm 350mm 400mm
Fluorescent Lamp 14*1 14W*1 21W*1 28W*1 36W*1
UV Lamp Emission of 253.7 nanometers
Consumption 160W 350W 350W 600W 700W
Waterproof Socket 2, total load≤500W No
Caster No Universal wheel with leveling feet
Power Supply 110/220V±10%; 60/50Hz
Standard Accessory

Fluorescent lamp, UV lamp*2 ( for all models )

Water & gas tap ( for model BBS-V680 )

Base stand ( except model BBS-V680 )

Foot switch and Waterproof socket*2 ( for model BBS-SDC2100 )

Gross Weight 50kg 120kg 150kg 210kg 300kg
Package Size (W*D*H), mm 750*460*1170 960*770*1800 1200*780*1350 1600*780*1350 2250*1000*2120

Customized design is welcome.



3.Clean workbench application:


It is widely used in medical and health, pharmacy, biochemical experiment, electronic, precision instrument, instrument and other industries, and provides a sterile clean environment for local purification table.



4.Use environment and conditions:



Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);
