Product Details
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-CB960
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Reconsideration
Packaging Details: Wooden case or as your requset
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, , L/C, D/A
Supply Ability: 2000pcs/month

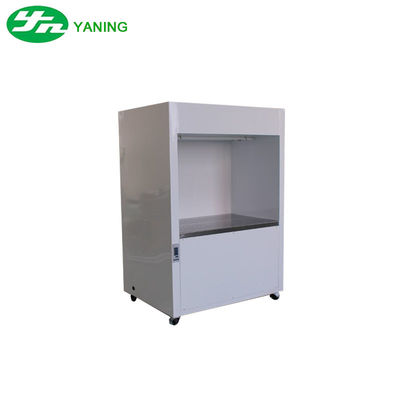

Product Name:: |
Clean Bench Class 100 |
Material:: |
Powder Coating |
Size:: |
960(W)*750(D)*1580(H)mm Or Custom |
Work Surface Material:: |
Full Stainless Steel |
Internal Size (W*D*H): |
900*680*540mm |
Work Surface Height: |
600mm |
Delivery Time:: |
25 Days After Your Payment |
Packaging: |
Wooden Case Or As Your Requirement |
Product Name:: |
Clean Bench Class 100 |
Material:: |
Powder Coating |
Size:: |
960(W)*750(D)*1580(H)mm Or Custom |
Work Surface Material:: |
Full Stainless Steel |
Internal Size (W*D*H): |
900*680*540mm |
Work Surface Height: |
600mm |
Delivery Time:: |
25 Days After Your Payment |
Packaging: |
Wooden Case Or As Your Requirement |
Product Information:
The clean bench consists of chassis, HEPA filter, variable air supply fan filter unit, medium-efficiency filter, worktable surface, and anti-static ion gun. The chassis is made of sheet steel and painted on the surface. Work area countertops are all stainless steel and the table tops are removable for easy cleaning.
The workbench adopts a direct control method, which includes a fan switch, a light switch, an anti-static ion switch, and a direct control device.
Performance Features:
Clean bench class 100 designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100. Whole cabinet made of Cold Rolled steel powder coated. The work table is made of thick Stainless-steel (SUS304 T=1.0mm). Extra charge is applied for full SUS304 body.
The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron
| SPECIFICATIONS FOR LAMINAR FLOW CABINET | |||
| Item | single horizontal type | double horizontal type | double vertical type |
| Size | 960*750*1580 mm | 1200*820*1580 | 1500*700*1800 |
| Class level | class 100 @0.3 um(FED 209) | ||
| Rated air volume | 1200m3/h | 1800m3/h | 2300m3/h |
| Air velocity | 0.3-0.6 m/s | ||
| Filter Efficiency | 99.999%@ 0.3um H13,H14 | ||
| Power | 280W | 405W | 490W |
| Noise | 65dB | ||
| Power Supply | 220V/50Hz | ||
Customized design is welcome.
Microelectronics, laboratories, national defense, precision instruments, meters, bio -pharmaceuticals, optoelectronics, hard disk manufacturing.Etc.
Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);
Production detail photos
| Packaging | |
| Size | 1000*800*1650mm |
| Weight | 150kg |
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Shipping | |
| item | by air or by sea |
| time | 7-30 days |
|
Shipping Details |
1. Samples be shipped by DHL/FedEx/UPS and so on. 2. Mass production be shipping by Air or Sea. |
