Stainless Steel Air Shower Unit For Micro - Electronics And Semiconductors

Product Details

Place of Origin: China Guangdong

Brand Name: YN

Certification: CE/ISO

Model Number: YN-ASS

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Reconsideration

Packaging Details: wooden case or as you requset

Delivery Time: 5-15 work days

Payment Terms: Western Union, T/T, L/C

Supply Ability: 1000pcs/month

Get Best Price
Product Details
High Light:

air showers for clean rooms

,

stainless steel air shower

Product Name::
Air Shower Room
Size::
1800*2300*2000mm Or Custom
Interlock::
Electronic Interlock System
HEPA Filter::
H13, 99.99%@0.3um
Pre-filter::
G1, 40%@2.0um
After-sales Servic:
Engineers Available To Service Machinery Overseas
Certificate:
CE/ISO
Product Name::
Air Shower Room
Size::
1800*2300*2000mm Or Custom
Interlock::
Electronic Interlock System
HEPA Filter::
H13, 99.99%@0.3um
Pre-filter::
G1, 40%@2.0um
After-sales Servic:
Engineers Available To Service Machinery Overseas
Certificate:
CE/ISO
Product Description

Stainless steel air shower room with electronic interlock system





Air shower room description:



Air showers provide a modular assembly method that can be assembled into air showers sizes of various lengths according to actual needs.





Air shower room
Dimension 1800(width)×2300(height)×1000 (one piece length)
Puring area dimension 800(width)×1900(height)
Puring efficiency ≥0.5umdust,≥99.99%(sodium flame)
Wind speed ≥27m/s
Time 0~99sec(adjustable)
Circulating wind volume 800~1000M3/h
voltage 380V-50Hz or 220V-50Hz
power 0.75Kw
Control panel Adjust the time of it
Infrared device Open or closed automatically





Air shower room features:





Yaning air shower & air shower channel standard configuration functions and features:



■ It adopts fully automatic control operation, two-door electronic interlocking, infrared induction automatic shower, and double door locking when blowing.



■ Cold plate spray series, using multi-layer pickling technology, electrostatic dustless spray treatment.



■ All stainless steel doors, door frames, handles, thicker floor plates, and air shower nozzles are used as the basic configuration.



■ LCD time display, air shower time is 0~99s adjustable, and shows the air shower time.



■ The air blowing system using the Archimedes spiral design achieves an ultra-strong wind speed of 25m/s~30m/s, ensuring that the personnel and goods entering the clean room can achieve the perfect effect of complete dust removal.



■ Advanced mute system, quieter operation, less impact on working personnel.



■ A unique air freshening system is used to completely eliminate the odors generated in the long-term closed air shower and air shower channels.





Yaning air shower & air shower channel added optional practical features:



1, photoelectric sensor automatic function system, adjustable door opening delay time.



2, automatic identification function system (with self-sensing card, password, fingerprint, etc.).



3, automatic ozone sterilization system, automatic UV disinfection system.



4, automatic addition of electrostatic ion generation function system, system heating function (used in cold winter).



5. Adjustable delay opening function system (to prevent the dust from flying to the clean area after blowing, it can be opened to enter the clean area after a preset time after the shower is completed).



6. Filter failure early warning function system (automatically reminds the replacement of high efficiency filter when the high efficiency filter reaches the final resistance).



7, automatic self-purification function (in the case of non-usual use, the air shower room automatically runs once every certain time, in order to maintain the indoor air shower cleanliness).



8. According to the requirements of non-standard custom.

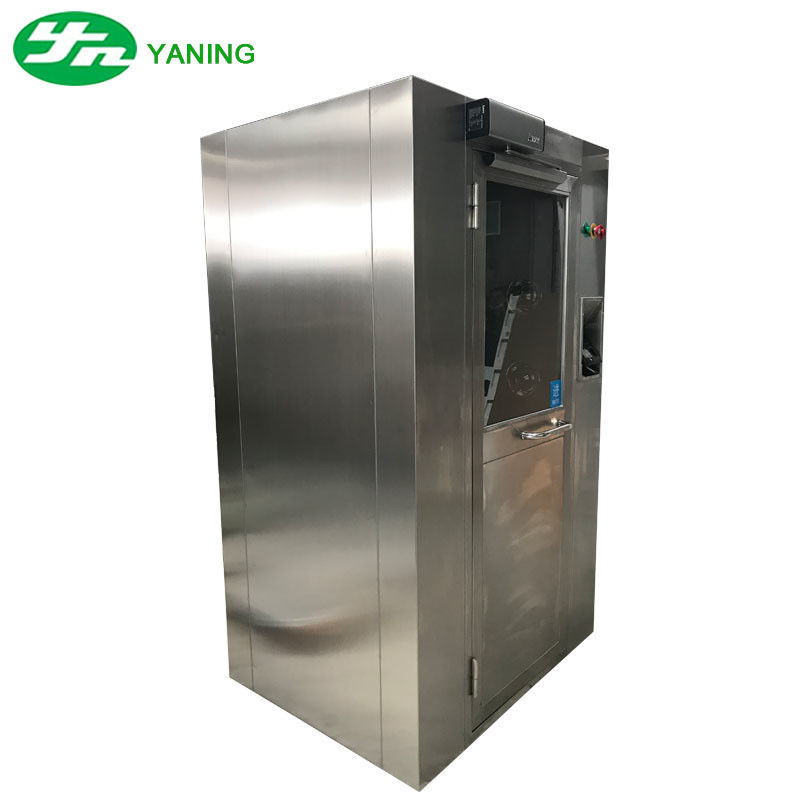

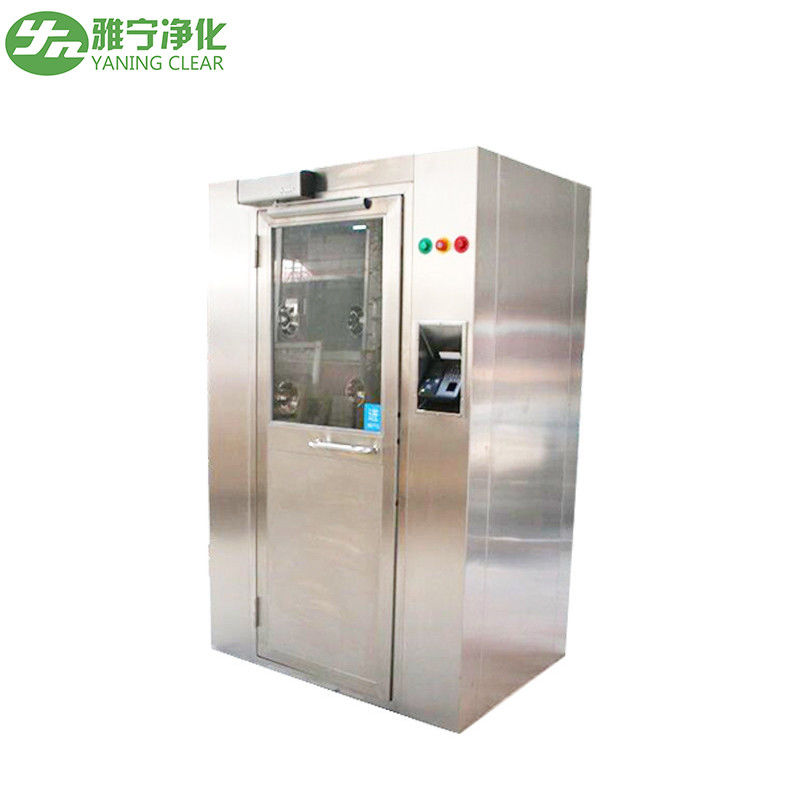

Yaning air shower room photo

Stainless Steel Air Shower Unit For Micro - Electronics And Semiconductors 0



Stainless Steel Air Shower Unit For Micro - Electronics And Semiconductors 1
