Portable Clean Sampling Vehicle Small Laminar Flow Booth For Pharmaceutical

Product Details

Place of Origin: Guangdong China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-980

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Reconsideration

Packaging Details: Wooden case or as your requirement

Delivery Time: 7-15 workdays

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 5000 sets /month

Get Best Price
Product Details
Highlight:

laminar flow ceiling

,

raw material sampling booth

Product Name::
Sampling Booth
Material::
Stainless Steel Or Powder Coating
Size::
600*700*1500mm
Cleanliness:
10000 Class≥0.5μm(USA Federal Standard 209E)
Air Velocity:
0.25-0.6m/s
Max Power Dissipation:
0.37W
Normal Working Conditions:
5℃~40℃ Relative Humidity:≤80%
Packaging:
Wooden Case
Product Name::
Sampling Booth
Material::
Stainless Steel Or Powder Coating
Size::
600*700*1500mm
Cleanliness:
10000 Class≥0.5μm(USA Federal Standard 209E)
Air Velocity:
0.25-0.6m/s
Max Power Dissipation:
0.37W
Normal Working Conditions:
5℃~40℃ Relative Humidity:≤80%
Packaging:
Wooden Case
Product Description

Portable clean sampling vehicle small laminar flow booth for pharmaceutical



1. Clean sampling vehicle description:



The clean sampling vehicle (hereinafter referred to as the sample vehicle) is a purification device that provides a local cleanliness working environment and is versatile.



Widely used in electronics, light sources, precision instruments, instruments, microbiology, agricultural seed cultivation research, food, processing and other industrial sectors and scientific experimental sites, have a good effect on improving process conditions, improve product quality and yield.

Cleanliness: Class 100 @ ≥ 0.5um (US Federal Standard 209E)

1), wind speed: 0.2 ~ 0.5m / s (** wind speed 0.3m / s)

2). Noise: ≤62dB(A)

3), power supply: AC220V, 650HZ

4). Vibration Half-peak value: ≤5um

5), the maximum power consumption: ≤ 0.8KW

6), weight: 50-150kg





3.Clean sampling vehicle application method:



1).Clean sampling vehicle moved to where sampling is required, fixed sampling vehicle (brake).

2). Turn on the power, turn on the power switch, turn on the fan switch, the fan starts to work, adjust the voltage to the appropriate (usually 220V), and put the sampling barrel after the clean sampling vehicle is running for 15 minutes.

3). After the sampling is completed, remove the sampling bucket, turn off the fan and power supply, unplug the power cord, and move the sampling vehicle to its original position.

Note: According to the use conditions, the anemometer should be used to measure the wind speed in the working area regularly. If it is found that the technical requirements are not met, the air volume of the fan can be adjusted. If necessary, replace the high efficiency or primary efficiency air filter.



4. Clean sampling vehicle parameter



Model YN-980(B)
(Steel plate coating)

YN-980
(stainless steel)

Cleanliness

· 10000 class≥0.5μm(USA Federal Standard

209E)

· 10000 class≥0.5μm(USA Federal Standard

209E)

Air Velocity

0.25-0.6m/s 0.25-0.6m/s

Noise

≤58dB(A) ≤58dB(A)
Power AC,Single phase 220V/50Hz AC,Single phase 220V/50Hz
Max Power Dissipation 0.37kW 0.37kW
Normal working conditions 5℃~40℃ Relative humidity:≤80% 5℃~40℃ Relative humidity:≤80%
Barometric pressure 86~106KPa 86~106KPa
External dimension 700*900*1900 700*900*1900
Wind speed adjustment Wind speed 5 adjustable Wind speed 5 adjustable

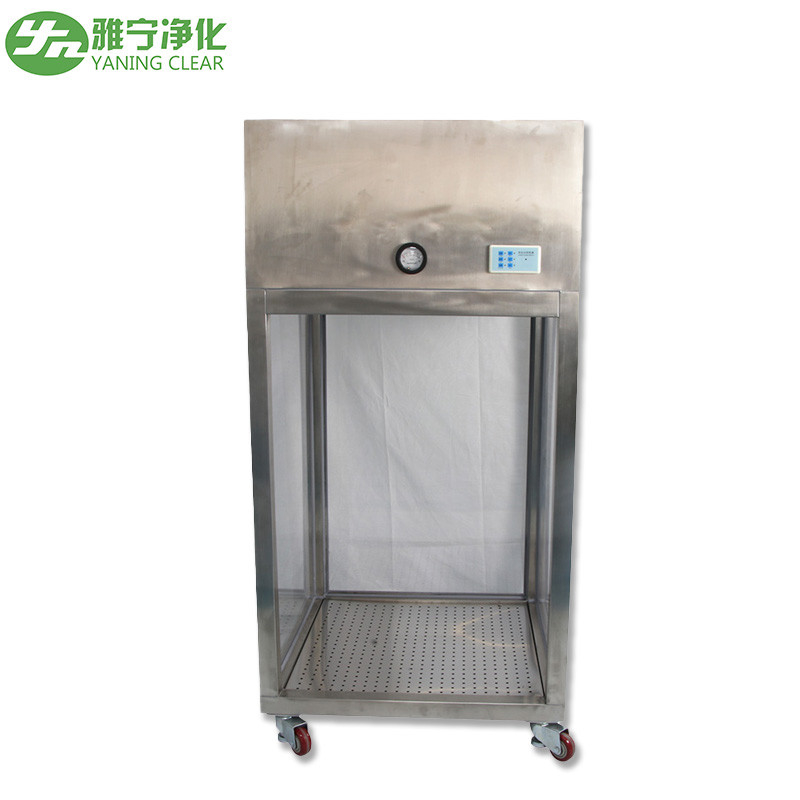

Product detail photos
Portable Clean Sampling Vehicle Small Laminar Flow Booth For Pharmaceutical 0
Portable Clean Sampling Vehicle Small Laminar Flow Booth For Pharmaceutical 1


Our Services

Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.


Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray
