Product Details
Place of Origin: Dongguan, Guangdong, China
Brand Name: Yaning
Certification: CE / ISO
Model Number: YN-PAP
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 10000 per month
Packaging Details: Carton package or with wooden case in addition
Delivery Time: 7~25 days based on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000 pcs/ month
Name: |

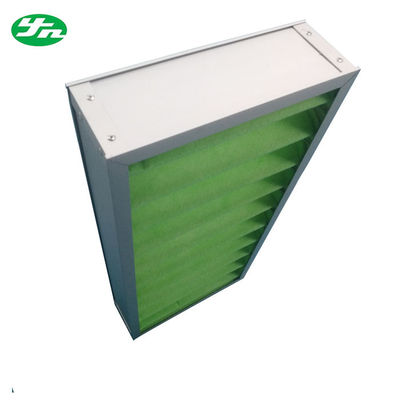

Air Filter For Air Conditioning |
Material: |
Synthetic Fiber |
Efficiency: |
G2~G4 |
OEM / ODM: |
YES |
Construction: |
Panel Filter |
Filtration Grade: |
Pre Filter |
Frame: |
Aluminum / Galvanized Frame |
Name: |
Air Filter For Air Conditioning |
Material: |
Synthetic Fiber |
Efficiency: |
G2~G4 |
OEM / ODM: |
YES |
Construction: |
Panel Filter |
Filtration Grade: |
Pre Filter |
Frame: |
Aluminum / Galvanized Frame |
Production description
Primary filter is suitable for the prefilter for all kinds of clean ventilation system, protection filter of heat exchanging parts for central air-conditioning of general ventilation requirements and return filter of all industrial clean workshops or civil buildings.
Application
Applied to the terminal filtration, air conditioning filtration system, used in hospital, electronic industry, food, precision instrument, electron semiconductors
Specifications
1. Application: coarse particle filtration
2. Type: panel filter
3. Size: customized size and design is available
4. Efficiency: G4
5. Final pressure drop: 250 pa (recommend)
6. Max. air flow rate:120% of nominal air flow rate
7. Max. operating temperature: 80°C
8. Max. relative humidity: 100%
9. Filter media: synthetic fiber, nylon mesh or metal mesh
10. Frame: aluminum alloy/galvanized frame
11. Color: As your requirement
12. Feature: large air flow, low initial pressure drop, high dust holding capacity, economical and practical.
Parameters
| Filter Class |
Dimensions W*H*D (mm) |
Nominal Volume FLow (m³/h) |
Initial Pressure (Pa) |
Final Pressure (Pa) |
Average Arrestance (%) |
Filter Area (m2) |
| G2 | 592*592*24 | 3400 | 67 | 250 | 71 | 0.34 |
| 592*592*46 | 3400 | 50 | 0.6 | |||
| 592*592*96 | 3400 | 35 | 1.2 | |||
| G3 | 592*592*24 | 3400 | 80 | 89 | 0.34 | |
| 592*592*46 | 3400 | 65 | 0.6 | |||
| 592*592*96 | 3400 | 42 | 1.2 | |||
| G4 | 592*592*24 | 3400 | 95 | 94 | 0.34 | |
| 592*592*46 | 3400 | 75 | 0.6 | |||
| 592*592*96 | 3400 | 50 | 1.2 |
