High Efficiency Filtration Ceiling Laminar Air Flow System Current And Airflow Compensation Function

Name: High Efficiency Filtration Ceiling Laminar Air Flow System Current And Airflow Compensation Function
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: YN-LC-2400
Price: 10000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-LC-2400

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: reconsideration

Packaging Details: First in carton,then made wooden tray or as your requirement

Delivery Time: 7-15 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                laminar flow ceiling, raw material sampling booth


Product Name:	Laminar Air Flow Unit Ceiling	Purification Levels:	Class 100
Specification:	2680×2480×500mm	Hepa Size:	610305292mm
Hepa QTY:	8pcs	Installs Way:	Hang/hung Ceiling
Usage:	Use Alone Or In Combination	Packaging:	Wooden Case

Product Name:	Laminar Air Flow Unit Ceiling
Purification Levels:	Class 100
Specification:	2680×2480×500mm
Hepa Size:	610305292mm
Hepa QTY:	8pcs
Installs Way:	Hang/hung Ceiling
Usage:	Use Alone Or In Combination
Packaging:	Wooden Case

Product Description

Laminar Flow Ceiling

Product Description

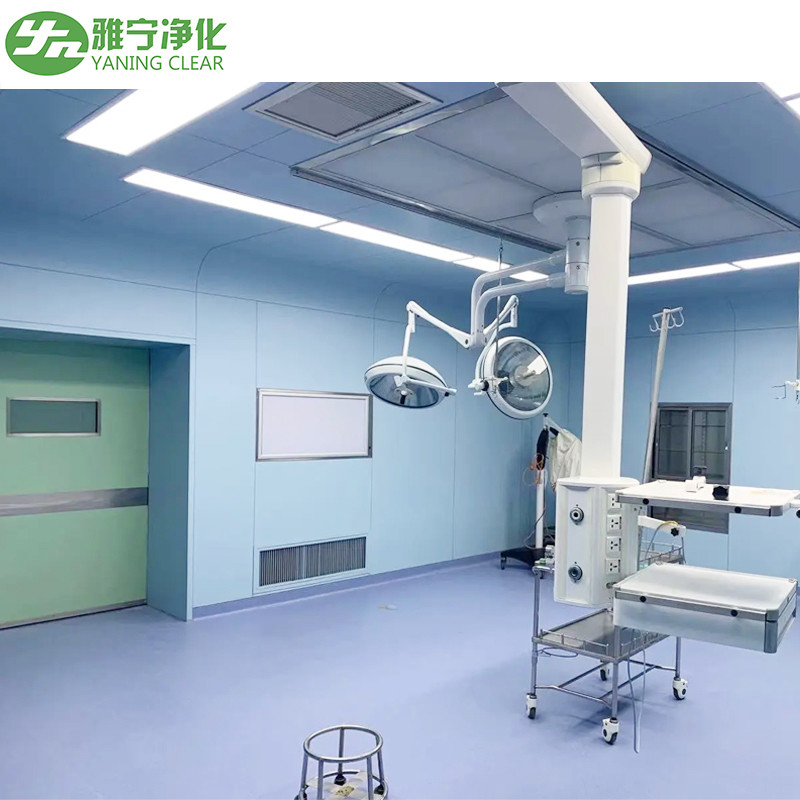

Laminar air supply ceiling is a non-inductive air supply device centrally arranged above the operating table in the clean operating room of a modern hospital. It is the purification air supply terminal of clean operating room and laminar flow ward. It has high-efficiency filtration, flow equalization and airflow compensation. The cabinet is made of electrolytic steel plates, the high-efficiency filter is laid out in a tiled arrangement, which fully guarantees the laminar flow area of the ceiling filter to achieve a higher cleaning effect; at the same time, the filter can be put at side according to customer needs, providing HVAC designers with a variety of options. The air supply ceiling center uses an airflow compensating device to fully offset the interference of personnel on the laminar flow effect. It is divided into I,II,III, IV laminar flow purification air supply ceiling, laminar flow ceiling in burn ward, laminar flow ceiling in blood ward and laminar flow ceiling in ophthalmic operating room.

Product Parameters
Product Model	Model/Parameter	Dimensions WHD(mm)	HEPA Filter Siz WHD(mm)	HEPA Filter Qty	Remarks
YN-CL01-001	Laminar flow ceiling I	26002400500	119667669(H14)	4 Pcs	Special size can be customized upon request
			94636669(H14)	4 Pcs
YN-CL02-001	Laminar flow ceiling II	26001800500	119654669(H14)	4 Pcs
			94646269(H14)	2 Pcs
YN-CL03-001	Laminar flow ceiling III,IV Laminar flow ceiling in burn ward	26001400500	119634669(H14)	4 Pcs
			94646269(H14)	2 Pcs
YN-CL04-001	Laminar flow ceiling in blood ward	28502500500	132172669(H14)	4 Pcs
			94636669(H14)	4 Pcs
YN-CL05-001	Laminar flow ceiling in ophthalmic OT	15001500500	66264669(H14)	2 Pcs

Medical Equipment Series

Laminar Flow Ceiling

Filter Media: H13 or H14 glass fiber
Cabinet Material: Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304
Air Speed : 0.25-0.60m/s
* Easy installation and filters replacement.
* Simple fixation system.
* Air diffusion through metal grill or stretch fabric.
* Lateral duct connections.

PLC Control Panel / Door Phone

①The product has the characteristics of high transparency, high strength and high light transmittance; ②Compared with the button-type operatingroom control panel,it is more convenient ;
③International capacitive screen,the surface is tempered glass;
④Industrial-grade control,system stability, high sensitivity,support for various communications,energy saving and consumption reduction;
⑤The flat type is easy to clean and scratch resistant,and it can be touched after being wetted with water,and no dirt
can be hidden.
⑥ It is easy to set and check the working status of various equipment in the operating room,fault conditions,and environmental parameters such as temperature and humidity in the operating room.

Hospital Door

①The surface of the door leaf can be optionallycoated with antibacterial coating to prevent crossContamination and meet the needs of a sterileenvironment②Double sealing of leaf and frame with uniquealuminum structure and sealing tape, with goodairight effe ct
③The door opens and closes quickly,and alsoprovides dual doorinterlock function,locking everybit of clean air for you
④A wide range of product styles,materials andglass viewing window structures are available tomeet customer needs
⑤Automatic swing door features. high qualityimported humanized control and operation of thedrive motor, automatic delayed closing (timeadiustable),also provide automatic,normalopen,normal closed,half open one-way passageand othermodes

Medical Cabinets

 Anesthesia Cabinet Medicine Cabinet Instrument Cabinet Catheter Cabinet

Other Materials

 Gas Socket Box Power Socket Box Writing Desk X-ray Viewing Box

Success case show

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packing&Delivery

Packaging

The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

shipping

Samples be shipped by DHL/FedExUSP and so on Mass production be shippinh by Air or Sea

Exhibition

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 200 people in our office.Our company and factory are located in Dongguan City, Guangdong Province, China. We welcome you to visit us at your convenience to learn about our factory and products.

2.What can you buy from us?
Air Shower, Cargo Air Shower,PVC Fast Rolling Shutter Door,HEPA Box , FFU,BFU, Pass Box, Clean Bench,Clean Booth,Operating Room ,Medical Cabinets,Laminar Flow Ceiling,Medical Scrub Sink,AIR FILTER.

3.How long is your delivery time?

Normally 10-15 days for small bulk after get payment and specification confirmed, delivery is differ from different equipments and qty for bulk production.

4. What's your payment terms?
50% deposit after PI confirmed and balance 50% should be paid before shipment. If the order's total amount below $5000, It should
be paid 100% in advance.

5. Do you provide samples? Yes, we can provide sample, but the customer should be pay sample fee and shipment cost. The sample fee
can be refund after official order placed for same models.
