Professional Laminar Airflow Chamber Hardwall / Softwall With Wooden Case Packaging

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-LC-2400

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: reconsideration

Packaging Details: First in carton,then made wooden tray or as your requirement

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Get Best Price
Product Details
Highlight:

operating room ceiling system

,

raw material sampling booth

Product Name:
Laminar Air Flow Chamber
Purification Levels:
Class 100
Specification:
Customize
Hepa QTY:
According To The Size
Wall::
Hardwall Or Softwall
Packaging:
Wooden Case
Terms:
CIF/EXW/FOB
Product Name:
Laminar Air Flow Chamber
Purification Levels:
Class 100
Specification:
Customize
Hepa QTY:
According To The Size
Wall::
Hardwall Or Softwall
Packaging:
Wooden Case
Terms:
CIF/EXW/FOB
Product Description



Professinal custom laminar air flow chamber in clean room for food industry

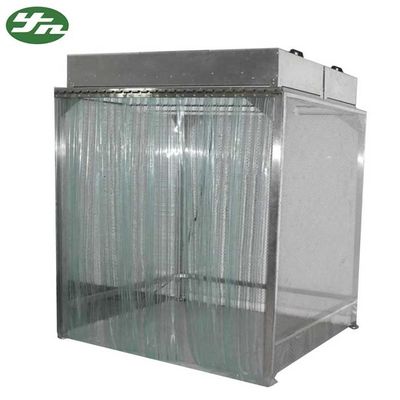

1. Laminar air flow chamber description

Laminar air flow chamber is a local air purification equipment to provide high- clean environment, is a clean room which the most quickly and easily create. Clean shed main consist of cabinet, fan, prefilter and HEPA filter, damping layer, lamps and other components. It can be suspended, but also can be ground support, compact structure, easy to use. Can use single or multiple connections to compose of banded clean area.

Laminar air flow chamber interior cleanliness can be reached100-100000class level, in order to reduce structural costs of clean shed, YANING changed the traditional concept of clean shed design, take a modular integrated design concept , this structure has a variety of separate clean area, for some areas of general clean class level clean room that required high clean class level do local creation to reduce costs, thus making the workers and equipment, products effectively isolated, can minimize the pollution, thereby increasing the rate of qualified products.



2.GMP Laminar air flow hood advantages

1). Purpose: The clean laminar flow hood is an air purification unit that can provide a local high clean environment and can be flexibly installed above the process requiring high cleanliness. Clean laminar flow hoods can be used individually or as multiple strips of clean areas. The device is a unidirectional flow purification device with top, side or bottom air inlet and bottom air supply, which can be widely used in electronics, pharmaceuticals, precision instruments, scientific research and other fields.



2). Principle: The clean laminar flow hood blows the pre-filtered air into the static pressure box with a certain wind speed, and then the hepa filter equalizes the pressure of the damping layer, so that the clean air flows vertically into the working area. , thus ensuring the cleanliness of the work area to achieve the process requirements.



3). Structure: There are three kinds of clean laminar flow hood with fan installed, fan installed above and fan installed. Mounting methods are suspended, floor stand and mobile. The structure can be divided into wall plate type, full iron shell paint, stainless steel outer shell iron and stainless steel and other forms.



3. Laminar air flow ceiling Parameter

Model YN-CS-23B YN-CS-34A YN-CS-68C

(W×L×H)mm

External Dimension

2100×3100×2590 3100×4100×2590 6100×8100×2590

(W×L×H)mm

Internal Work Zone

2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas
