Negative Pressure Weighing Room

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-LAF-2400

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: reconsideration

Packaging Details: First in carton,then made wooden tray or as your requirement

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Get Best Price
Product Details
High Light:

operating room ceiling system

,

raw material sampling booth

Product Name:
Negative Pressure Weighing Room
Purification Levels:
Class 100
Specification:
1000x600x2450mm Or Customize
Internal Size::
1000x600x2000mm
Application::
Biopharmaceutical
Standard::
(FS 209E) USA.
Terms:
CIF/EXW/FOB
Product Name:
Negative Pressure Weighing Room
Purification Levels:
Class 100
Specification:
1000x600x2450mm Or Customize
Internal Size::
1000x600x2000mm
Application::
Biopharmaceutical
Standard::
(FS 209E) USA.
Terms:
CIF/EXW/FOB
Product Description

Negative pressure weighing room in biopharmaceutical workshop



1. Negative pressure weighing room description

The negative pressure weighing room is the main quality equipment of HongKong Yaning Purification Industrial Co.,Limited. The company has long focused on consulting, R&D, design, production and service of the negative pressure weighing room. Widely used in microbiological research, scientific experiments, or pharmaceutical industries. The weighing chamber is a dedicated local purification equipment. Negative pressure weighing chambers provide clean air circulation in the work area, resulting in vertical unidirectional airflow. , The remaining non-clean air is discharged outside the working area, so that the working area is in a negative pressure working state, which can effectively avoid pollution and ensure that the working area is in a highly clean state.



Operating Features:

1: Negative pressure weighing room modular. Easy-to clean rigid design with minimal joints

2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth.

Gel-seal is more reliable than conventional gasket seals

3: Voltage-compensating blowers ensure stable air flow.

4: Magnehelic Gauges provide convenient and reliable means for monitoring

gauges air flow and filter condition.

5: Containment performance verified according to the ISPE good practice guide,

assessing the particulate containment performance of pharmaceutical equipment.



2.Weighing room attention

When the negative pressure weighing room is used, it is necessary to select the indoor use type or the outdoor use type according to the use environment. If the negative pressure weighing room is used indoors, firstly select the floor that can withstand the weighing room and select the installation. The location confirmation must be flat. The weighing room cannot be tilted during installation. Once tilted, it will affect the shape of the box and cause malfunction. If the environment is relatively high or relatively low, there are oil mists, chemical corrosive substances are relatively large, etc. These environments cannot use weighing rooms. There must be no flammable or explosive materials in the working area of the weighing room. The weighing room cannot be used continuously for a long time in use, and it will cause harm to the symmetrical room when it is used for a long time. Do not use clean water when cleaning. If you wash with water, it will cause damage to equipment or personnel. To use professional cleaning fluids, symmetric chambers should be regularly maintained.



3. Measuring  hood parameter

The parameters of the weighing hood
Model CLZ15-02-10
Clean level A class(New GMP)
Initial resistance 180±15Pa
Air Velocity 0.45m/s±20%
Noise ≤65dB
Luminance Above 300Lux 1 meter above ground
Vibrate Vibration vice≤5um X,Y,Z, three-way
Work space 1000*600(mm)
External dimension 1000*600*500(mm)
High efficiency filter size 790*390*90 1pcs
Power ≤0.5kW
Power supply 220V 50Hz
Illumination 15w
Meterail 304 stainless steel
Air structure Blowing down / blowing sideways



Product Display

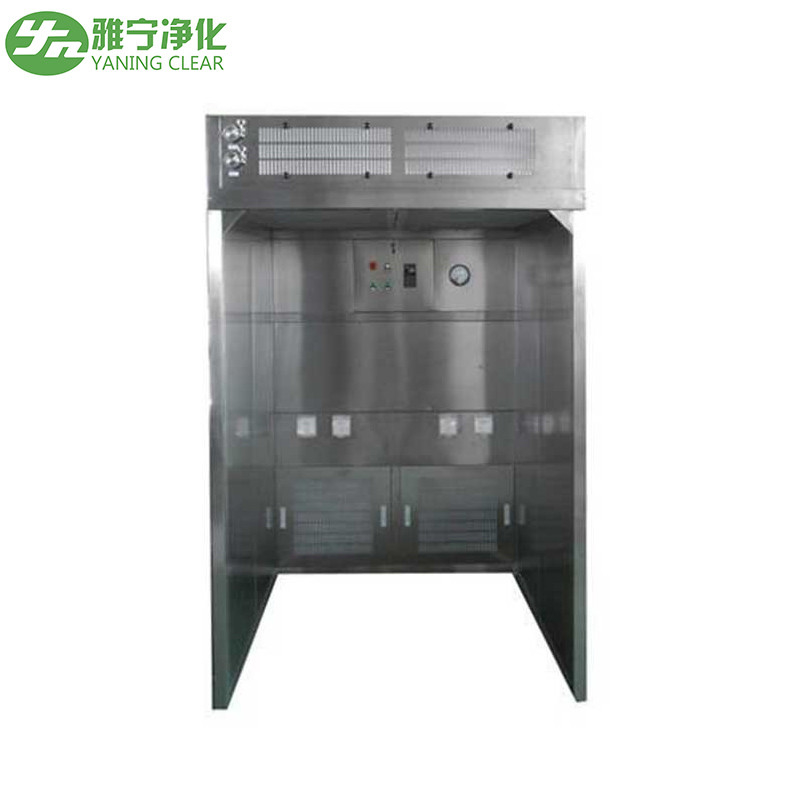

Negative Pressure Weighing Room 0Negative Pressure Weighing Room 1
