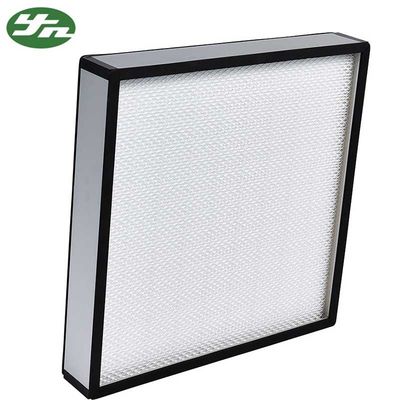

Aluminum Frame HEPA Air Filter / Mini Pleat HEPA Filter For AHU HVAC System

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-MHF
Minimum Order Quantity 1 pcs
Price Reconsideration
Packaging Details First in pp bag,then in carton,final made a wooden box. or as your requirement.
Delivery Time 7-30 workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 1000pcs/month
Product Details
Product Name Mini-pleat Hepa Filter Frame Aluminum
Size 610*610*69mm Or Custom Gasket Injection Molded Seamless Polyurethane
Filter Media Glass Fiber Air Volume 700 M³/h
Dust Capacity About 0.35g Packaging Wooden Case
High Light

high efficiency hepa filter


mini pleat hepa filter

Leave a Message
Product Description

Replace mini-pleat hepa filter air filter for AHU HVAC system

1, Mini-pleat hepa filter features

1. high efficiency H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um.


2. large dust capacity,because the filter media adopts the ultrathin glass fiber, the hot melt glue spacing each

pleats in regular so that achieve high dust volume.


3. aluminum frame can anticorrosion for long time.


4. sealant around the media prevent the air filter is without any air leaking.


5. hepa filter with metal screens,prevent the media is without any damage.


2. Mini-pleat hepa filter description

Mini pleat hepa filter series can effectively reduce the operating cost of the clean room. Through the effective leak detection and scanning test before leaving the factory, it can meet the strict requirements of special industries. It is suitable for various clean rooms, clean benches, pharmaceutical factories, and biological Plant, food processing, and any other place that requires strict control of air pollution.


Material and performance


Frame Material Aluminum
Filter media USA HV Fiberglass/PP fiber
Partition Hot melt adhesive
Sealant Polyurethane adhesive
Separator Paper/Aluminum foil
Max. temperature 85°C
Max. humidity 80%RH


Mini-pleat Hepa Filter Specification &Technical Parameter


Nominal Size

WxHxD (inch)

Actual Size


Rated A




Wind Speed






(Colorimetric Method/Class)

YN-MHF 12 x12 x 2 305x305x50 150 0.45









YN-MHF 12 x 24 x 2 305x610x50 300 0.45
YN-MHF 24 x 24 x 2 610x610x50 700 0.52
YN-MHF 36 x 24 x 2 915x610x50 1100 0.52
YN-MHF 48 x 24 x 2 1220x610x50 1400 0.52
YN-MHF 24 x 24 x 2-3/4 610x610x69 1000 0.75
YN-MHF 48 x 24 x 2-3/4 1220x610x69 2000 0.75
Special size can be customized


3. Mini-pleat hepa filter structure


1), Unique seamless sealing technology, better sealing effect, more durable, not easy to leak.

2), Small size, light weight. Anodized aluminum alloy frame material is used to facilitate handling and installation.

3), Can provide 50mm 70mm 90mm and other various thickness.

4), The maximum efficiency of capturing 0.3 micron particles of MPPS by the laser scanning count is up to 99.995% (EN1822).



4. Mini-pleat hepa filter installation


1, can be used with a variety of brand FFU installed on ceiling keel or color plate ceiling.

2. The HEPA filter needs to be installed in the air duct, and is to be blown into the room, and installed after the air volume and indoor cleanliness meet certain requirements, in order to prolong the service life of the HEPA filter.

3, in order to guarantee the service life of the high-efficient filter, it is recommended that before the air enters, it must pass a pre-filter which is not lower than F8 (colorimetry 90%-95%).
