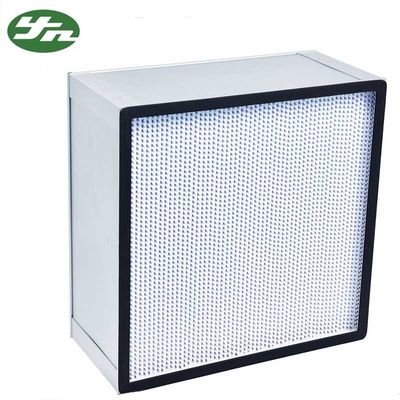

Customized Deep Pleated HEPA Filter Aluminum Frame For Food Industry

Place of Origin Guangdong China
Brand Name YN
Certification CE/ISO
Model Number YN-DHF
Minimum Order Quantity 5pcs
Price Reconsideration
Packaging Details First in pp bag,then in carton,final made a wooden box. or as your requirement.
Delivery Time 7-25 workdays(according to the QTY)
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000pcs/month
Product Details
Product Name Deep Pleated Hepa Filter Frame Aluminum Plate
Size 610*610*292mm Or Custom Filter Media Glass Fiber
Sealant Hot-melt Separater Paper
High Light

high efficiency hepa filter


mini pleat hepa filter

Leave a Message
Product Description


Customize aluminum frame deep pleated hepa filters for food industry


1,Deep pleated hepa filter description

High-efficiency air filters are mainly used to trap particulate dust below 0.5um and various suspended materials. Hepa filter is mainly composed of filter element and shell. The basic requirement is high filtration efficiency, low flow resistance, and continuous use for a long time to reduce the cost of consumables.

The filter element refers to the air filter plays a crucial role in the air purification industry.


The use of ultra-fine glass fiber paper as filter material, offset paper, aluminum film and other materials for the partition board, and wooden frame aluminum alloy glue,

High efficiency air filter can be widely used in optical electronic, LCD liquid crystal manufacturing, bio-pharmaceuticals, precision instruments, beverage foods, PCB printing and other industries dustless purification plant air-conditioning terminal air supply. Efficient and ultra-efficient filters are used at the end of the clean room. Their structure can be divided into: Deep pleat hepa filter, Mini pleat hepa filter, high air volume hepa filter, and ultra-efficient filters.


2. Deep pleated hepa filter feature

1).A separator high-efficiency filter uses ultra-fine fiber as filter material,and high-quality hot rolled kraft paper or offset paper or aluminum platinum as the partition plate, and is made of wood frame or aluminum alloy frame glue, and the deep pleat hepa filter has high filtration efficiency. Low resistance, large air volume advantages.

2).Deep pleat hepa filter filter uses a double-sided stencil coated paper as a separator, in order to prevent the separator from shrinking due to the effect of cold, hot, dry, and wet, thereby emitting particles. And suitable for low level non-unidirectional flow projects with various purification equipment and cleanrooms.

3). In the separator filter, the aluminum separator filter is mainly used in high temperature or high humidity environment, and the paper separator filter is used in ordinary clean environment. The air volume of the partition is relatively large and can be used as a high temperature resistant filter.


3. Deep pleated hepa filter structure

Frame: aluminum,stainless steel,galvanized steel,wooden frame

Filter: Superfine glass fiber filter paper

Sealant: Polyurethane

Separator: Aluminum foil separator or paper separator

Working temperature: -20~90°C

Operating Humidity: Aluminum separator ≤ 99%, paper separator ≤ 80%


4. Standard Model Technology Parameter



Rated air flow m3/h Initial resistance Final resistance Efficiency Remark
484×484×120 400 ≤220Pa ≤400Pa




Frame:stainless steel or aluminium,galvanized sheet.

filter material:Glass fiber

Separate:aluminium foil and paper foil

610×610×120 600
915×610×120 930
1220×610×120 1500
484×484×150 530
610×610×150 1000
915×610×150 1500
1220×610×150 2000
484×484×220 1000
610×610×220 1600
915×610×220 2300
1220×610×220 3000
