Product Details
Place of Origin: China
Brand Name: Yaning
Certification: CE/ISO/UL/FDA
Model Number: YN-CRCT028
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: First in carton,then made wooden tray or as your requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Material: |
Ss304 |
Purification Levels: |
ISO5--ISO 8 |
Standard: |
CE/FDA/ISO |
HEPA: |
H14 |
FFU Power: |
170w |
OEM/ODM: |
YES |
Delivery Time: |
7-15days |
Export Desitination: |
America,EU |
Package: |
Plywooden Case |
Factory History: |
Over 100 Employee |
Material: |
Ss304 |
Purification Levels: |
ISO5--ISO 8 |
Standard: |
CE/FDA/ISO |
HEPA: |
H14 |
FFU Power: |
170w |
OEM/ODM: |
YES |
Delivery Time: |
7-15days |
Export Desitination: |
America,EU |
Package: |
Plywooden Case |
Factory History: |
Over 100 Employee |
Product Description

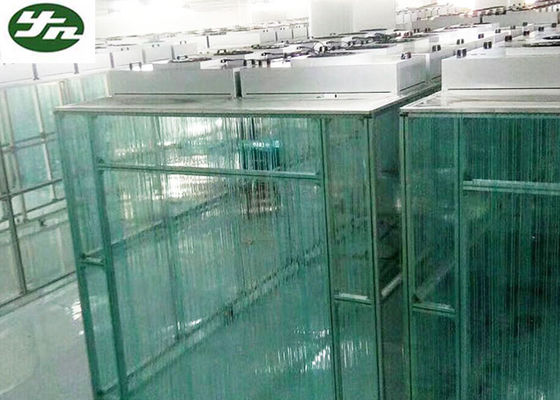

Clean booth (simple clean room) is a kind of air purification equipment that can provide local high clean environment. It is a simple clean room for the fastest and most convenient establishment. The top FFU inhales the air, and the clean air filtered by the filter presents a vertical unidirectional flow on the entire air outlet surface, thus ensuring the required cleanliness in the working area.
Available Types
Hardwall Cleanroom
* Hardwall cleanrooms have a strong support frame and panels. They are made from rigid materials, such as stainless steel, welded steel, acrylic, tempered glass, PVC, etc.
*More permanent than soft wall clean rooms. * offer excellent environmental and contamination control.
* often made with modular construction which is more efficient assembly and disassembly.
Softwall Cleanroom
*A softwall cleanroom is a confined controlled
space with a metal frame, clear panel walls, an entrance, high efficiency particulate air (HEPA) filters, and exceptional lighting that is designed to provide a contaminant and particulate matter free workspace.
*Softwall cleanrooms are cleanrooms with fabric walls. These fabric walls may either be made from free-hanging plastic strips or fabric stretched tightly over a frame.
* Softwall cleanrooms are highly portable, and may be designed modularly more efficient assembly and disassembly.
Frame
* Aluminum profile
* Stainless Steel
Curtains
* 40mm Thick Clear Vinyl
* Static Dissipative Material
* Easy-to-use Dual Lock Attachment
* Strip Doors for Convenient Access
Filters and Lights
* Motorized Ceiling H14 HEPA Filter Units
* Variable Speed Control
* Class 100,000 to Class 10 (ISO 8 to ISO 4)
* LED Flat Panel Lights
* Available Flow-thru lights Recommended Applications / Industries
* Microelectronics
* Pharmaceutical
* Research and Development
* Semiconductor Manufacturing
| SPECIFICATIONS FOR CLEAN ROOM | |||
| Modul | YN-CS-23B | YN-CS-34A | YN-CS-68C |
| Size | 2100*3100*2590mm | 3100*4100*2590 | 6100*8100*2590 |
| clean class level | class 100-100000 (ISO5-8) | ||
| Air velocity | 0.3-0.5 m/s | ||
| Noise | 65dB | ||
| light | 40W | ||
| Power supply | 220V/50Hz | ||
| Material | Aluminum or stainless teel | ||
| Model item | YN-CS1500 | YN-CS200 | YN-CS3000 | YN-CS5000 | |
| Size(mm) | 1500*2000*2400 | 2000*3000*2400 | 3000*4000*2400 | 5000*5000*2400 | |
| Material | Framework | Cold rolled steel/Aluminum/Stainless sheel | |||
| Material | Around | Plexiglass,Soft curtain,Anti-static strip curtain | |||
| Clean class level | 100 | 1000 | 10000 | 100000 | |
| Hepa filter | Size(mm) | 610*610*69 | 1220*610~69 | 1220*610*69 | 1220*610~69 |
| Hepa filter | Efficiency% | 99.99 | 99.99 | 99.99 | 99.99 |
| Hepa filter | Air flow(m3/h) | 4000 | 5040 | 7560 | 12000 |
| Pre filter | Size(mm) | Optional | |||
| Motor spec | Power supply | 220V150hHZ | 220V150hHZ | 220V150hHZ | 220V150hHZ |
| Motor spec | Noisel(db) | 62 | 63 | 62 | 63 |
