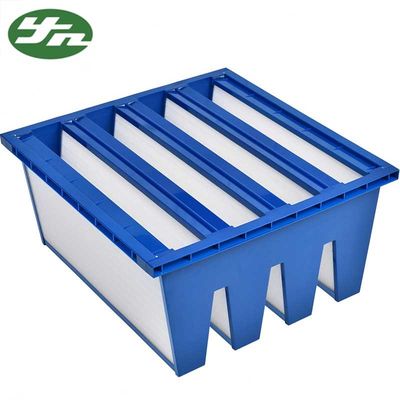

HVAC AHU System Sub - Hepa Air Filter W Type With Blue Plastic Frame

  • HVAC AHU System Sub - Hepa Air Filter W Type With Blue Plastic Frame
  • HVAC AHU System Sub - Hepa Air Filter W Type With Blue Plastic Frame
Place of Origin China
Brand Name Yaning
Certification CE / ISO
Model Number YN-FV
Minimum Order Quantity 20 units
Price Reconsideration
Packaging Details Exported standard wooden case
Delivery Time 5~12 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000 units /month
Product Details
Name W Type Sub-hepa Air Filter Size 595*595*295mm Or Customize
Frame Material Blue Plastic Efficiency PP 85%-PP99% @0.5um
Initial Pressure ≤ 120pa Final Pressure 400pa
Air Volume 3700m³/h Divisions No 4pcs
High Light

air bag filter

,

bag filter systems
Leave a Message
Product Description





W type sub-hepa air filter with blue plastic frame for HVAC AHU system



1. W type Sub-hepa air filter description

Description of W-type sub-high efficiency air filter High air volume type: Compared with ordinary high efficiency filters, fewer filters can be used at the same air volume, reducing costs, reducing installation space and saving installation time.



2. W type Sub-hepa air filter Feature

Large air flow, high efficiency, large amount of dust

Applicable to the terminal filtration and air conditioning unit of large volume of air purification equipment

W-type sub-high efficiency air filter applications are widely used in industrial and commercial heating and ventilation air-conditioning systems, such as:

1), office buildings, conference rooms, hospitals, shopping malls, stadiums, airports and other large-scale civil buildings ventilation and air conditioning systems

2), general industrial plants or clean Room pre-filtering for centralized ventilation and air conditioning systems.



3. W type Sub-hepa air filter structure

1). High dust holding capacity, no partition design: The filter is made of ultra-fine, moisture-proof and fire-resistant glass fiber. The thermoplastic separator ensures the same fold distance and ensures the best airflow with the least resistance. The same pleat spacing makes full use of the entire depth of the filter material to ensure a greater dust holding capacity.

2). V-type air volume filter adopts ABS engineering plastic frame, light weight, low initial resistance This filter is especially suitable for complex operating systems, such as: high wind speed system, variable air volume system, high humidity or corrosive environment and other special The required system.

3). Temperature: 80 °C

4). Humidity: 100%

5). The V bank filter efficiency include highly efficient, sub-high efficiency and medium efficiency three.

6). The frame is made of galvanized steel or plastic, filter material using ultra-fine polypropylene filter paper or glass fiber filter paper.



4. Standard Model Technology Parameter

model

Outside dimensions

(mm)

Rated air flow

(m3/h)



Imitial resistance

(Pa)

Efficiency

(%)

Filter Media

(PCS)
HBV-10 305×610×295 1600 ≤250 or ≤150(HV) ≥99.99 4V
HBV-10 610×610×295 3200 ≤250 or ≤150(HV) ≥99.99 4V
HBV-10 305×610×295 2000 ≤250 or ≤150(HV) ≥99.99 5V
HBV-10 610×610×295 4000 ≤250 or ≤150(HV) ≥99.99 5V



HVAC AHU System Sub - Hepa Air Filter W Type With Blue Plastic Frame 0



Our Services

Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.

Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray

HVAC AHU System Sub - Hepa Air Filter W Type With Blue Plastic Frame 1
