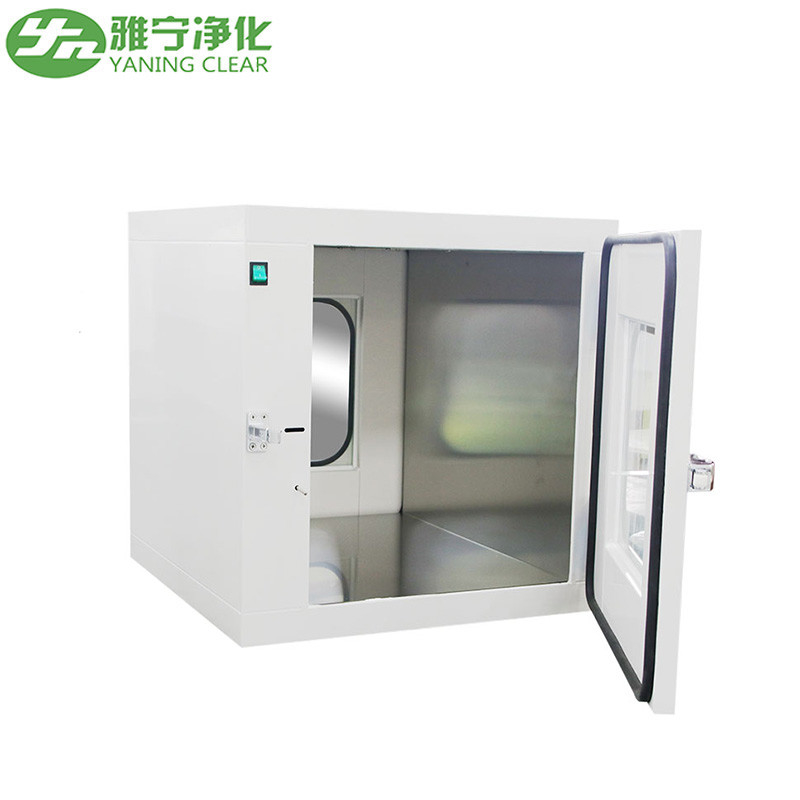

Powder Coating Clean Room Pass Through Window
| Place of Origin | China |
|---|---|
| Brand Name | YN |
| Certification | CE/ISO |
| Model Number | YN-DL-575 |
| Minimum Order Quantity | 1PCS |
| Price | reconsideration |
| Packaging Details | Wooden case |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 5000pcs/month |
Product Details
| Product Name | Pass Through Window | External Size | 720*850*580mm |
|---|---|---|---|
| Internal Size | 500*700*500mm | Interlock Structure | Mechanical Interlock |
| Material | Powder Coating Steel | MOQ | 1pcs |
| High Light | dynamic pass box,pass through boxes for clean rooms,Powder Coating Pass through window |
||
Product Description
Clean room equipment pass through box for electronics factory
We manufacture comprehensive lines of Cleanroom Pass Box (also known as Pass-Through Air Locks, Pass-Throughs, Chambers or Transfer Hatches) to simplify contamination-free transfer of materials in and out of a classified environment. We can custom configure this product to meet special requirements for sizes, materials and features. Make a call or send an email to discuss your requirements.
1. Pass through box description
As an auxiliary device of a clean room, pass box is mainly used to deliver small objects between clean area and clean area, unclean area and clean area. In order to reduce door’s opening times of clean room, it is suggested to reduce the pollution of the clean area.
Purifying transfer window may transfer materials, equipment and tools under the protection of Class A environment. Materials, equipments or tools which have been purified may be delivered to the aseptic area, mainly from Class C area to Class B area. As to user’s demand, the purifying transfer window can be equipped with UV germicidal lamp or ozone generator sterilization system.
2. Pass through box Feature
1),Electrical or Mechanical interlocking system.
2),Multiple Option of Materials to minimize the cost.
3),Door with viewing glass.
4),Air Shower Type
5),UV Lamp Sterilization
6),Easy-to-install by Wall Mounted or Floor Mounted
7),Customized Size and Function Design
3. Standard Model Technology Parameter
| Model | YN-555 | YN-666 | YN-575 |
| Working area W*H*D(mm) | 500*500*500 | 600*600*600 | 500*700*500 |
| External Dimension(mm) | 720*650*580 | 820*750*680 | 720*850*580 |
| Interlock system | Electromagnetism interlock | ||
| Sight Glass Dimension | 5mm Tempered Glass | ||
| UV Lamp | 1pcs Optional | ||
| Lighting Lamp | 1pcs Optional | ||
| Power | AC220V,1ø,50Hz(customized) | ||
| Material | 1.SUS304;2.Powder coated of external steel plate,SUS304 Of inner side | ||
| Products Standard | Q/320507 LDH007-2016 | ||
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.
Our production line
Our Services
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.
Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray
