Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-SC-800
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details Wooden case
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000pcs/month
Product Details
Product Name Self-cleaning Pass Box External Size 860*600*1200mm
Internal Size 600*600*600mm Interlock Structure Electronic Interlock/Mechanical Interlock
Material Stainless Steel MOQ 1pcs
High Light

dynamic pass box

,

pass through boxes for clean rooms

Leave a Message
Product Description





Self-cleaning Pass box with differential-pressure gauge for pharmaceutical





1. Self-cleaning pass box description

The self-cleaning transfer window is provided with the following three functions:

1). The self-cleaning transfer window has a self-cleaning function. When transferring the articles, the transfer window fan collects the air from the inside and self-purifies the interior of the transfer window through a Hepa filter at the top.

2). Self-cleaning transfer window door adopts electronic interlocking control. When one side door is opened, the other side door is automatically locked and prohibited from being opened.

3). The self-purification pass box is equipped with a UV-disinfecting lamp and the UV lamp is sterilized for items that cannot be disinfected with disinfectant.



2. Clean pass box feature

The medical transfer window can be divided into: the electronic interlock transfer window and the mechanical interlock transfer window according to different interlocking modes.

The medical transfer window doors are double-door interlocked (ie, only one door can be opened at a time; after one door is opened, the other door cannot be opened.)

The transfer window can be divided into: Windows and medical laminar flow transmission windows.



3. Working principle of pass box

1). Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.



2). Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open, the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.







4. Standard Model Technology Parameter

Model YN-PB-500 YN-PB-600 YN-PB-750 YN-PB-800

(W×D×H)mm

External Dimension

660×500×600 760×600×700 910×750×850 960×800×900

(W×D×H)mm

Internal Work Zone

500×500×500 600×600×600 750×750×750 800×800×800
Cabinet Material Epoxy powder coated steel / Stainless steel
Insider Material Stainless steel
Interlock system Mechanical Interlock / Electronic Interlock

Electronic Interlock Or

UV light Power supply

220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz

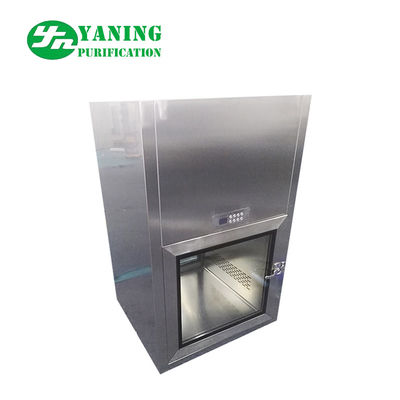

Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical 0

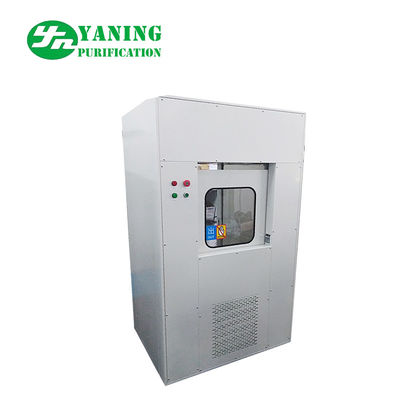

Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical 1Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical 2Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical 3Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical 4Durable Cleanroom Pass Box Differential Pressure Gauge Self Cleaning For Pharmaceutical 5
