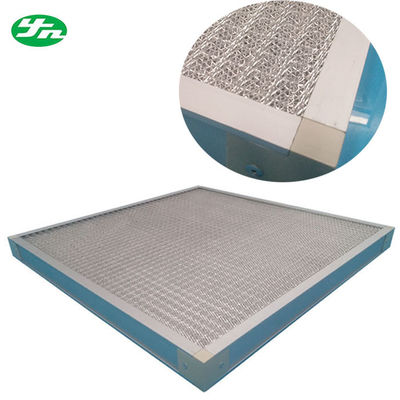

High Temperature Metal Mesh Pre Filter

  • High Temperature Metal Mesh Pre Filter
  • High Temperature Metal Mesh Pre Filter
  • High Temperature Metal Mesh Pre Filter
Place of Origin China
Brand Name YN
Certification CE / ISO
Model Number YN-MMAF
Minimum Order Quantity 100 units
Price Reconsideration
Packaging Details carton or outside with export wooden package
Delivery Time 5~12 working days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000 units / month
Product Details
Name Mesh Metal High Temperature Pre Filter Size As Per Customer's Requiremet
Frame Aluminum Frame Final Pressure Drop 250Pa
Temperature 250℃
High Light

primary air filter

,

pleated panel filter
Leave a Message
Product Description

Aluminum frame MERV6,MERV7 efficiency mesh metal high temperature pre filter



Metal Mesh air filters offer a semi-permanent, cleanable air filtration solution, suited for outdoor environments. Metal Mesh filters are ideal for use in harsh environments where rugged, washable and reusable filters are most appropriate. Metal Mesh filters are available in all frame configurations, from roll-formed channels to ultra-thin stamped sheet metal.
Features:
1.Each Metal Mesh air filter model performs with a high degree of dust arrestance when installed in industrial machinery, military and power generation equipment where permanent type, cleanable filters are required.
2.Metal Mesh media consists of layers of aluminum slit and expanded into various thickness grades.
3.Matched with customer application requirements to provide the optimal combination of dust capturing and dust holding capacity while minimizing resistance to airflow.
4. low-cost assembly



Product Specification
Item Metal mesh air filter Outer Frame detachable aluminum frame
Media Multilayered wave expanded aluminum mesh,cross overlapping arrangement,different aperture arrangement,change the airflow direction many times,increase the dust catching force and efficiency.
Efficiency (EN779:2002)G3,G4 (ASHRAE 52.2:2007)MERV6,MERV7
flame rating DIN53438 class F1 Temperature 250℃
Fianl pressure drop 250Pa
Application Air filter for general building air conditioning systems
Primary air filtration for industrial-grade ventilation systems
Widely used in acid, alkali and high humidity environment
Air filter for car assembly workshop spray wax room





Filtration Performance Data
Model Dimensions FaceVelocity(m/s) Rated Air Flow(m3/h) Initial PressureDrop(Pa)
W*H*D(mm)
MW-20*10*2 492*238*46 2.5 1050 15
MW-20*16*2 492*390*46 2.5 1720 15
MW-20*20*2 492*492*46 2.5 2170 15
MW-24*24*2 594*594*46 2.5 3170 15
MW-25*16*2 619*390*46 2.5 2170 15
MW-25*20*2 619*492*46 2.5 2740 15



High Temperature Metal Mesh Pre Filter 0High Temperature Metal Mesh Pre Filter 1High Temperature Metal Mesh Pre Filter 2
