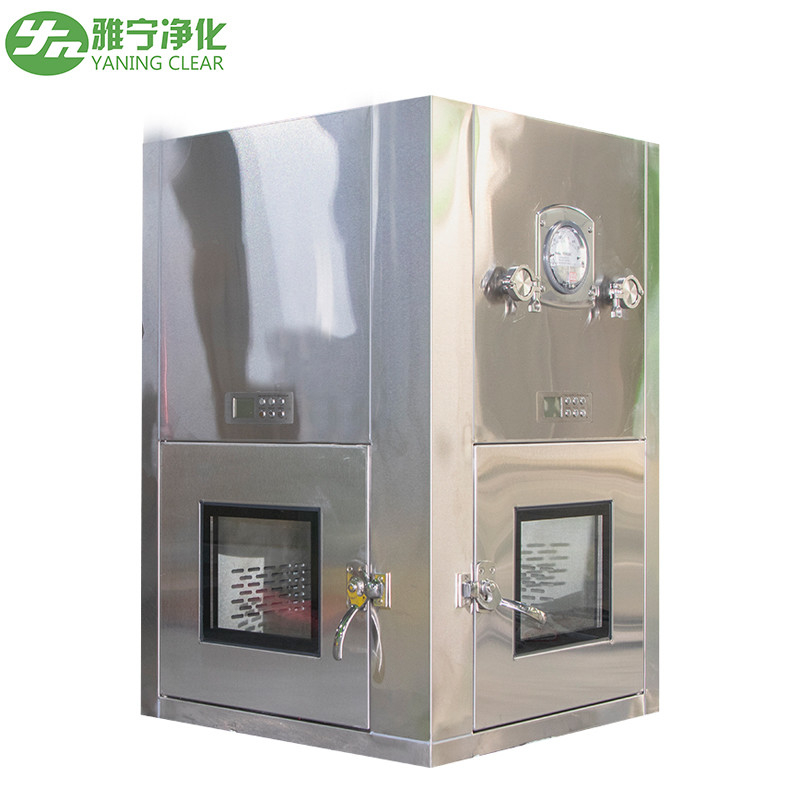

Air Shower Pass Box With Nozzles

Air Shower Pass Box With Nozzles
Air Shower Pass Box With Nozzles
Air Shower Pass Box With Nozzles Air Shower Pass Box With Nozzles Air Shower Pass Box With Nozzles Air Shower Pass Box With Nozzles

Large Image :  Air Shower Pass Box With Nozzles

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-CPB-940
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000pcs/month

Air Shower Pass Box With Nozzles

Description
Product Name:: Air Shower Pass Box External Size: 940*600*1450mm
Internal Size: 600*600*600mm Interlock Structure: Mechanical Interlock
Material:: Stainless Steel Packaging:: Wooden Case
Highlight:

dynamic pass box

,

air shower pass box





Air shower type transfer box clean pass box with nozzles for lab





1. Air shower Pass box description

In order to reduce the large amount of dust particles caused by the entry and exit of the cargo, the clean pass box by the HEPA filter is sprayed by the rotatable nozzle from all directions to the cargo, and the dust particles are effectively and quickly removed. The dust particles that have been removed are then filtered by an initial, high-efficiency filter and recycled to the air shower area.

In order to achieve the best effect of blowing, the nozzle outlet wind speed can reach 20m/s or more.



2. Air shower Pass box Feature

1). Use circular arc angles that are more suitable for clean room principles



2), the outer wall of high-quality cold-rolled steel spray



3), short-distance transmission window table using stainless steel, smooth and wear-resistant



4), long-distance transmission window table with no power roller, easy delivery of goods



5). Both sides of the door are equipped with mechanical interlock or electronic interlocking device to ensure that both sides of the door can not be open at the same time



6), the wind mouth outlet speed of up to 20s



7), using a separator high efficiency filter, filtration efficiency: 99.99%, to ensure the purification level



8), using EVA sealing material, high sealing performance



9), using imported electronic components, reliable performance



10), automatic infrared sensor blowing shower, from the entrance into the clean area when the infrared sensor automatically blows the shower, from the clean area out through the transmission window does not blow to save energy;



11). Incoming and outgoing direction panels each have a pick-up light.



3. Working principle of pass box

1. Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.



2. Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open, the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.



4. Standard Model Technology Parameter

Dimensions W×D×Hmm 940×600×1450 1090×750×1500 1140×800×1550
Inner Dimension W×D×Hmm 600×600×600 750×750×750 800×800×800
Pre filter size mm 570×290×17(1pcs) 745×290×17(1pcs) 795×290×17(1pcs)
Hepa size mm 610×610×120(1pcs) 610×610×120(1pcs) 610×610×120(1pcs)
Blower power 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs
Air flow m3/h 1200 1200 1200
Fan rolling speed r/min 2800 2800 2800
Stainless steel nozzle 4pcs ≥4pcs ≥4pcs
Hepa filter 99.99%@0.3um 99.99%@0.3um 99.99%@0.3um

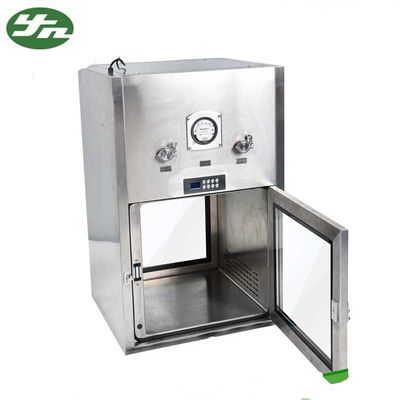

5,Detail photos

Air Shower Pass Box With Nozzles 0

Air Shower Pass Box With Nozzles 1Air Shower Pass Box With Nozzles 2Air Shower Pass Box With Nozzles 3
