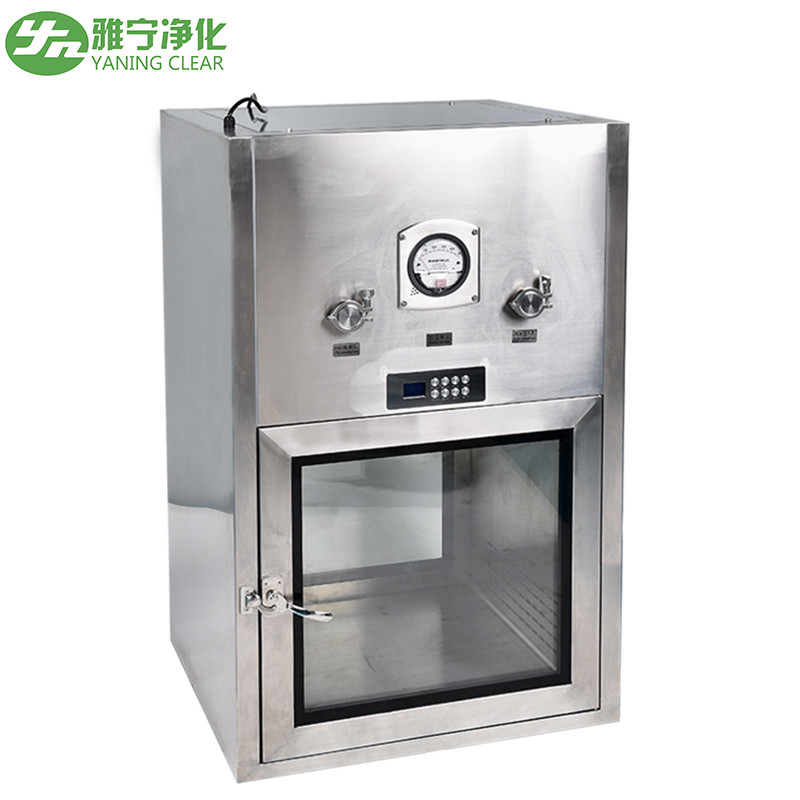

Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics

Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics
Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics

Large Image :  Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-SC-750
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000pcs/month

Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics

Description
Product Name:: Dynamic Pass Box External Size: 910*750*1200mm
Internal Size: 750*750*750mm Interlock Structure: Electronic Interlock/Mechanical Interlock
Material:: 304 Stainless Steel MOQ: 1pcs
High Light:

dynamic pass box

,

pass through boxes for clean rooms





Stainless steel dynamic pass box with mechanical interlock for food industry





1. Dynamic pass box description

The dynamic pass box is provided with the following three functions:

1). The self-cleaning transfer window has a self-cleaning function. When transferring the articles, the transfer window fan collects the air from the inside and self-purifies the interior of the transfer window through a Hepa filter at the top.

2). Self-cleaning transfer window door adopts electronic interlocking control. When one side door is opened, the other side door is automatically locked and prohibited from being opened.

3). The self-purification pass box is equipped with a UV-disinfecting lamp and the UV lamp is sterilized for items that cannot be disinfected with disinfectant.



2. Dynamic pass box introdction

Application

It’s widely used in the clean environment, such as: micro-electronics, laboratory, national defense, precise instrument, bio-pharming, optical-electronics, aseptic packaging, etc.



Product information

Pass pox with air shower is devised on the basis of the air shower. It keeps the wind spray in 20m/s speed through the stainless steel nozzle after HEPA filter. It’s very significant effect in the filtrate and strong to use.



Product feature

1.The surface material of pass box is cold rolled steel or stainless steel.

2.The inside material of pass box is stainless steel, it can prevent scratches and keeps the pass box flat, neat and wearable.

3.Doors in two sides with mechanical or electronic interlock.

4.Adopt mini-pleated HEPA filter,efficiency:99.99%@0.3μm.

5.The wind speed of nozzle above 20m/s

6.According to production process requirement, it can install efficient sterilization lamp.





3. Standard Model Technology Parameter

Model YN-SC-500 YN-SC-600 YN-SC-750 YN-SC-800
External Size (W×D×H) mm 840×500×1350 940×600×1450 1090×750×1600 1140×800×1650
Internal Size (W×D×H) mm 500×500×500 600×600×600 750×750×750 800×800×800
Noise Level(dB) <62 <62 <62 <62
Stainless Steel Nozzle 4PCS 6PCS 6PCS 6PCS
Wind Speed ≥25m/s ≥25m/s ≥25m/s ≥25m/s
Pre-filter Size (W×D×H) mm 525×275×17 560×275×17 560×275×17 560×275×17
Efficiency G4 G4 G4 G4
HEPA Filter Size (W×D×H) mm 484×484×69 630×630×69 630×630×69 630×630×69
Efficiency 99.99% 0.3µm 99.99% 0.3µm 99.99% 0.3µm 99.99% 0.3µm
Power Supply 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Total Power 750W 750W 750W 750W

Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics 0Self Cleaning Cleanroom Pass Box , Dynamic Pass Box For Micro - Electronics 1
