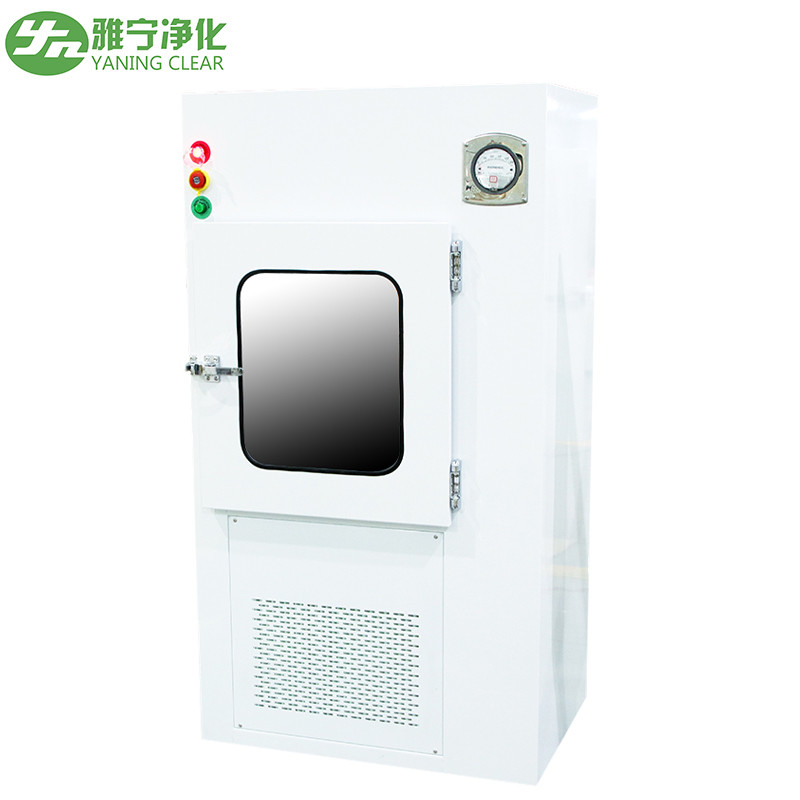

Coated Roll Steel Frame Cleanroom Pass Box For Precision Electronics Industry

  • Coated Roll Steel Frame Cleanroom Pass Box For Precision Electronics Industry
  • Coated Roll Steel Frame Cleanroom Pass Box For Precision Electronics Industry
  • Coated Roll Steel Frame Cleanroom Pass Box For Precision Electronics Industry
Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-SC-800
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details Wooden case
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 2000pcs/month
Product Details
Product Name Pass Through Box With Air Shower External Size 1140*800*1650mm
Internal Size 800*800*800mm Interlock Structure Electronic Interlock
Material 304 Stainless Steel Stainless Steel Nozzle 6PCS
Wind Speed ≥25m/s Noise Level(dB) <62
High Light

dynamic pass box

,

air shower pass box
Leave a Message
Product Description





Dynamic pass through box with air shower for precision electronics industry





1. Pass through box with air shower Specifications

1). The surface material of pass box is cold rolled steel or stainless steel.

2). The inside material of pass box is stainless steel, it can prevent scratches and keeps the pass box flat, neat and wearable.

3). Doors in two sides with merchanical or electronic interlock.

4). Adopt mini-pleated HEPA filter, efficiency: 99.99%@0.3um.

5). The wind speed of nozzle above 20m/s.

6). According to prouduction process requirement, it can install efficiency sterilization lamp.



2. pass through box with air shower introdction

Application

It’s widely used in the clean environment, such as: micro-electronics, laboratory, national defense, precise instrument, bio-pharming, optical-electronics, aseptic packaging, etc.



Product information

Pass pox with air shower is devised on the basis of the air shower. It keeps the wind spray in 20m/s speed through the stainless steel nozzle after HEPA filter. It’s very significant effect in the filtrate and strong to use.



Product feature

1.The surface material of pass box is cold rolled steel or stainless steel.

2.The inside material of pass box is stainless steel, it can prevent scratches and keeps the pass box flat, neat and wearable.

3.Doors in two sides with mechanical or electronic interlock.

4.Adopt mini-pleated HEPA filter,efficiency:99.99%@0.3μm.

5.The wind speed of nozzle above 20m/s

6.According to production process requirement, it can install efficient sterilization lamp.





3. Standard Model Technology Parameter

Model YN-SC-500 YN-SC-600 YN-SC-750 YN-SC-800
External Size (W×D×H) mm 840×500×1350 940×600×1450 1090×750×1600 1140×800×1650
Internal Size (W×D×H) mm 500×500×500 600×600×600 750×750×750 800×800×800
Noise Level(dB) <62 <62 <62 <62
Stainless Steel Nozzle 4PCS 6PCS 6PCS 6PCS
Wind Speed ≥25m/s ≥25m/s ≥25m/s ≥25m/s
Pre-filter Size (W×D×H) mm 525×275×17 560×275×17 560×275×17 560×275×17
Efficiency G4 G4 G4 G4
HEPA Filter Size (W×D×H) mm 484×484×69 630×630×69 630×630×69 630×630×69
Efficiency 99.99% 0.3µm 99.99% 0.3µm 99.99% 0.3µm 99.99% 0.3µm
Power Supply 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Total Power 750W 750W 750W 750W

Coated Roll Steel Frame Cleanroom Pass Box For Precision Electronics Industry 0Coated Roll Steel Frame Cleanroom Pass Box For Precision Electronics Industry 1
