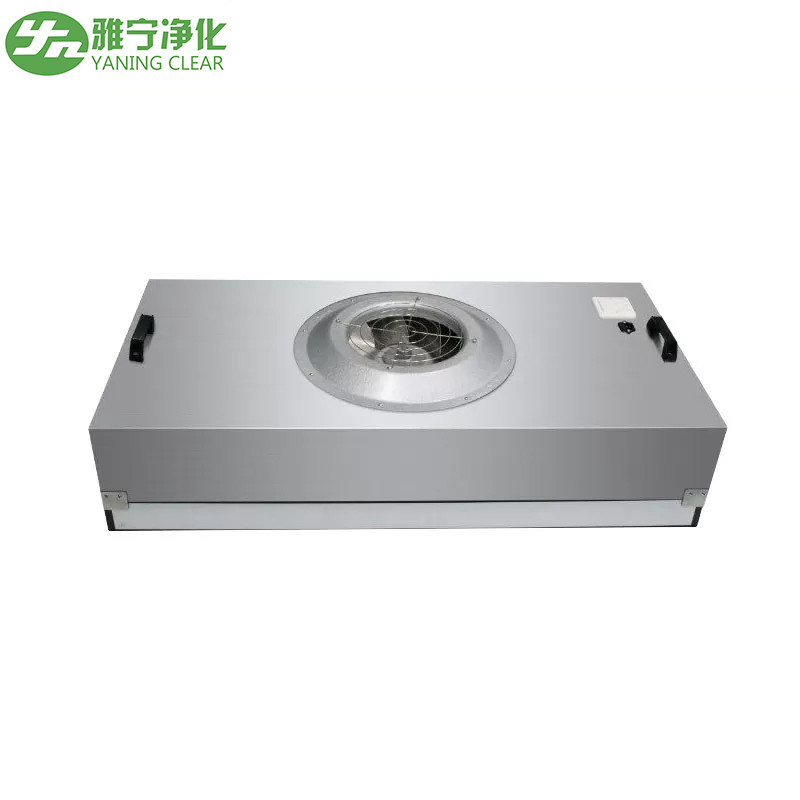

Low Power Consumption Industrial Fan Filters , Fan Filter Unit For Clean Room

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-FFU-1175

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: reconsideration

Packaging Details: first in carton,then made wooden tray

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 10000pcs/month

Get Best Price
Highlight:

ffu filter fan unit

,

hepa fan filter unit

Material:
Powder Coat Steel/Galvanized Steel/Stainless Steel
Powersupply:
AC Single Phase 110V/220V 50HZ/60HZ AC Single Phase 220V/380V 50HZ/60HZ
Efficiency:
H13-U15
Work Condition:
Power Indicator Switch/Fault Indicating Lamp
Overload Protection:
Motor Controller Overload Protection Switch
Connection Type:
Terminal Block/male And Female Connector/power Cord
Monitoring Contact:
Reserved Run And Fault Dry Connection
Material:
Powder Coat Steel/Galvanized Steel/Stainless Steel
Powersupply:
AC Single Phase 110V/220V 50HZ/60HZ AC Single Phase 220V/380V 50HZ/60HZ
Efficiency:
H13-U15
Work Condition:
Power Indicator Switch/Fault Indicating Lamp
Overload Protection:
Motor Controller Overload Protection Switch
Connection Type:
Terminal Block/male And Female Connector/power Cord
Monitoring Contact:
Reserved Run And Fault Dry Connection
Low Power Consumption Industrial Fan Filters , Fan Filter Unit For Clean Room



custom various kind of color powder coat steel fan filter unit for clean room



1. FFU description

The FFU can be modularly connected and used, making the FFU widely used in clean rooms, dust-free consoles, dust-free production lines, assembled clean rooms, and local 100-class applications. FFU has an early and high-efficiency two-stage filter. The fan draws in air from the top of the FFU and is filtered by a primary and high-efficiency filter. The filtered clean air is delivered at a constant speed of 0.45 M/S±20% across the entire outlet surface. It provides high-quality clean air for clean rooms and micro-environments of different sizes, different cleanliness levels. In the newly-built clean room and clean plant type renovation and refurbishment, the cleanliness level can be improved, noise and vibration can be reduced, and the cost can be greatly reduced. The installation and maintenance are convenient, and it is an ideal component for a clean environment.



2. FFU advantages

1). Extremely low operation consumes power and reduces costs.

2, built-in air duct diversion system, reduce noise and pressure loss, improve fan efficiency.

3), can easily match the various brands of T-GRID and HEPA, ULPA.

4). The fan filter unit fan adopts high efficiency centrifugal fan, which can provide high air volume and high static pressure conditions. The service life requirement is up to 50,000 hours.

5), suitable for use in cleanliness class Class 1-1000 class clean room.

6), especially suitable for assembly into ultra-clean production lines, can be arranged according to process needs for a single use, can also be more than one series to form 100 assembly line

7). Before the products leave the factory, they are all tested according to US Federal Standard 209E using dust particle counters to ensure quality.





clean room systems.



FFU Standard type

  • The degree of cleanliness from class 1 up to 100,000 can be set and it can be set at individual area.

  • Because the back in the ceiling is a low-pressure area, the potential of the leakage is extremely low.

  • Bay method or through the wall method is possible by the arrangement of the layout of FFU.

  • The volume of the air flow can be set at each area.

  • Flexible increase or change of the clean room is possible by the arrangement of Fan Filter Unit.



3. FFU Parameter

Model FFU-KLC920 FFU-KLC1175 FFU-KLC1225 Unit
Size 920×615×350 1175×575×350 1225×615×350 mm
plenum chamber materials Aluminized zinc plate/stainless steel. Aluminized zinc plate/stainless steel. Aluminized zinc plate/stainless steel.
Air flow 800 1000 1200 m3/h
Average wind velocity 0.4/0.45/0.5 0.4/0.45/0.5 /0.4/0.45/0.5 m/s
Extemal static pressure 97(10mmAq) 97(10mmAq) 97(10mmAq) pa
Hepa filter size 915×610×69 1170×570×69 1220×610×69 mm
Efficiency 0.12um@99.99% 0.12um@99.99% 0.12um@99.99%
Filter initial pressure loss 180Pa@0.45m/s 180Pa@0.45m/s 180Pa@0.45m/s
Power 180Pa@0.45m/s 180Pa@0.45m/s 180Pa@0.45m/s
Fan vibration coefficient 0.2-0.5mm/s 0.2-0.5mm/s 0.2-0.5mm/s
Power dissipation 123 123 172 W
Weight 24 28 31 Kg
Noise 53 55 55 dB



Low Power Consumption Industrial Fan Filters , Fan Filter Unit For Clean Room 0Low Power Consumption Industrial Fan Filters , Fan Filter Unit For Clean Room 1

Company Information

Dongguan Yaning purification Technology Co.,Ltd.islocated in Dongguan city Changan ,is a set design development, production, sales, construction professional installation services in one purifier manufacturers,the company is committed to the purification

industry for more than ten years,the South China purification technology industry’s most Powerful enterprises.the main products used in health care,electronices technology ,bio-medicine ,food,precision instruments aerospace,automobile manufacturing and many another areas.



products

1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on

2.primer,middle and HEPA filter ,sub-high efficiency filter

3. undertake 1-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
