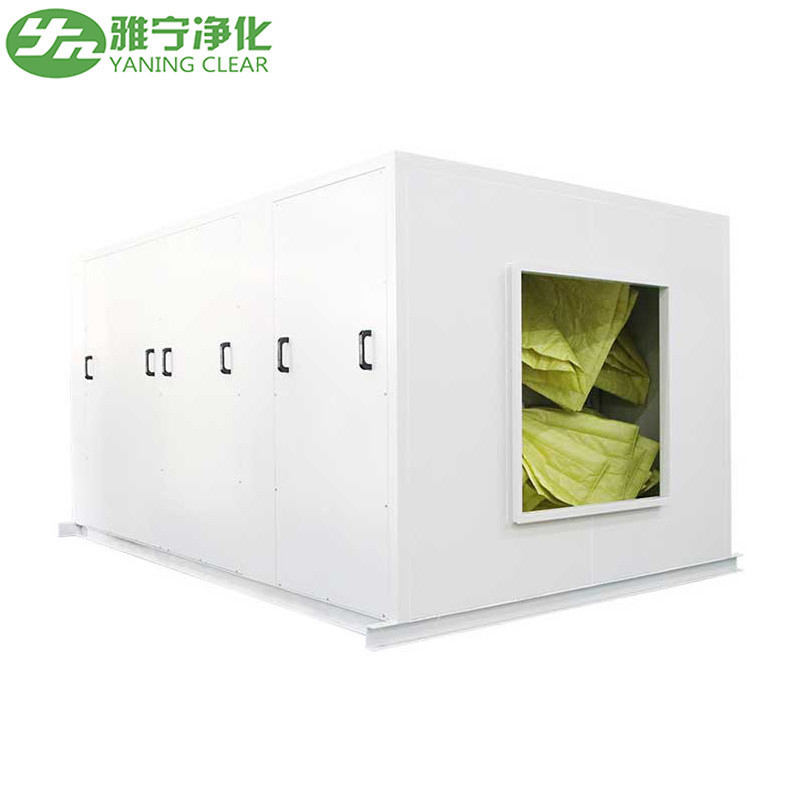

15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit

15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit
15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit 15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit 15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit

Large Image :  15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit

Product Details:
Place of Origin: China
Brand Name: YANING
Certification: CE/ISO
Model Number: YN-FAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Reconsideration
Packaging Details: carton case(wooden case is available if needed)
Delivery Time: 5~25 working days based on the quantity
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A,Paypal
Supply Ability: 2000 pcs per month

15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit

Description
Name: Fresh Air Cabinet Size: 700*630*1480mm Or Customize
Frame: Powder Coating Or As Your Request Air Flow: 1500m3/h
Hepa Size:: 630*630*220mm Pre Filter Size:: 485×415×21mm
Efficiency:: H13/H14 Power Supply:: 220V/50Hz
High Light:

return air vent grille

,

air filter grille



Fresh air cabinet air handing unit for clean room air condition



1. Fresh air cabinet description:

The fresh air cabinet, also known as the fresh air booster box, booster cabinet, it has a good sealing performance, connected with the wind pipe, with the best filtering effect;

Widely used in the hospital's operating room, laboratory, biopharmaceutical, hospitals, optoelectronics, circuit boards, microelectronics, hard disk manufacturing, food processing and other new styles require a higher working environment.



2. Fresh air cabinet features:

1).The fresh air cabinet is equipped with a professional air filter. The new air cabinet performs primary air filter treatment on fresh air. The new air cabinet ensures fresh air sent into the room and can be configured with high-performance primary filter or medium efficiency filter according to the special requirements for fresh air. Or high efficiency filter. Due to its flexible and compact structure, low noise, stable operation, and good air volume and air pressure adjustability, the fresh air cabinet is widely used in the ventilation system of civil buildings, At the same time can also be applied to the house building fire pressure air supply, clean air-conditioning booster wind and other occasions.

2).According to the layout of different ventilation ducts, different types of inlet and outlet tuyere cabinets can be ordered.

3). With a modular design, assembly and transportation are extremely convenient.



3. Fresh air handing unit structure

1). The fresh air cabinet type airtight closed structure, and through the test to prevent the leakage between the inlet and outlet, the box and the end cover are better sealed to avoid side leakage.

2), the use of cold rolling steel multi-layer pickling electrostatic spraying.

3), flange size has a variety of options.

4). There are many types of fresh air, such as 1000m3/h, 2000m3/h, 3000m3/h, 4000m3/h, 5000m3/h, etc.

5),Fresh air cabinet main material: full-cold-rolled steel plate sprayed or stainless steel and color steel plate;

Air volume: customized according to requirements.

Special requirements: According to the requirements of Party A, plus infrared sterilization; Odor removal; In addition to the electrostatic system.



Product Name Removable type Suspended type
Model YN-R-001 YN-R-002 YN-S-001 YN-S-002
Size(mm) 670×630×1480 700×630×1480 1300×700×600 1800×700×600
Air flow 1000 m3/h 1500m3/h 1500m3/h 2000m3/h
Noise(dB) 62 63 62 62
Fan Power supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Power(W) 260 260 375 375
HEPA filter Size(mm) 610×610×150 630×630×220 630×630×220 968×484×220
Efficiency H13 H13 H13 H13
Pre filter Size(mm) 485×415×21 485×415×21 595×495×21 595×495×21
Efficiency G3 G3 G3 G3
Material Cold rolled steel and power coated and stainless steel



15000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit 015000m3/H Air Flow Clean Room Ventilation Fresh Air Cabinnet Air Handling Unit 1
